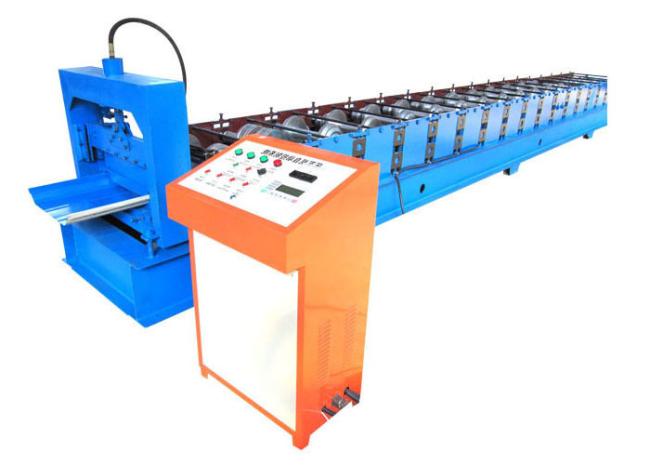

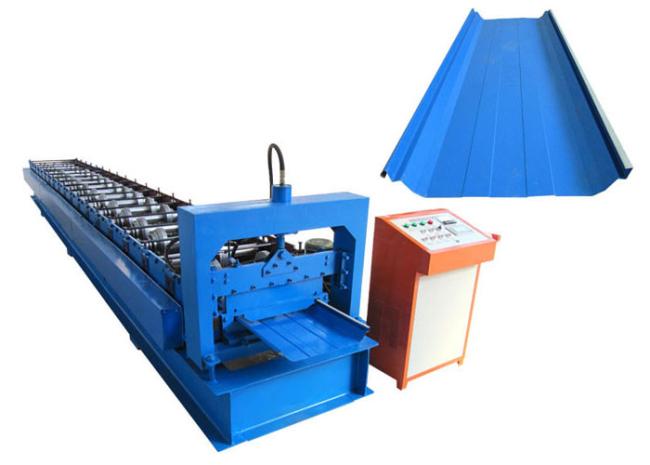

Coil Width 600mm Standing Seam Roll Forming Machine
Price:
Negotiable
MOQ:
1 set
Delivery Time:
40days
Brand:
OEM
Product Description
Coil Width 600mm Standing Seam Roll Forming Machine
- Raw Materials Request
| 1. | Suitable Material | Colored Steel plate, Galvanized Board, Aluminum Plate |
| 2. | Coil width | 600mm |
| 3. | Thickness | 0.3-0.8mm |
| 4 | Efficiency width | 470mm |
- The Host Quality Requirements:
| 1. | Color | Blue body, Red and yellow secondary | According to customer requirements |
| 2. | Appearance size (About) | 9800mm*1500mm*1510mm | Excluding the console |
| 3. | Rows of rollers | 20 rows | |
| 4. | Rolling material | 45# steel,roller surfaces polishing, hard plating | |
| 5. | Diameter of shaft | ￠70mm | |
| 6. | Service life | 10 years | |
| 7. | Total power | 7.5KW |
- Turn/Cut/Console Quality Requirements
| 1. | Productivity | 20-25m/min |
1 day=8 hours 12,000m/day |
| 2. | Cut Mode | Hydraulic forming after cutting off | |
| 3. | Cutter material | Cr12 Heat Treatment | Thick, high wear-resisting knife plate |
| 4. |
Electronic control system |
PLC, Touch Screen, Encoding counter |
- Device Configuration
| No | number | |
| (1) | Manual decoiler | 1 set |
| (2) | Guiding device | 1 set |
| (3) | Main roll forming machine | 1 set |
| (4) | Hydraulic cutting device | 1 set |
| (5) | PLC electric control system | 1 set |
| (6) | Hydraulic driving system | 1 set |
| (7) | Special tools and parts | 1 set |
- Equipment For Process Flow
Consist of Decoiler, Main roll forming machine, Cutting device, Hydraulic drive system, Electric control cabinet, ect.
