High Productivity Heavy Duty Road Roller Compactor Single Drum 2200r/Min

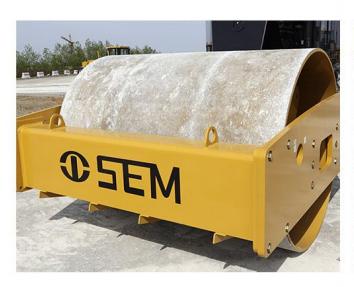

Heavy Duty Construction Machinery Single Drum Road Roller With 10t Machine Mass
1. Key Applications and characteristic of Road Roller For Heavy Duty Construction Machinery
SEM510 and SEM512 SCOM are widely used in road work, sub-base, parking lots, site development, water and sewer trench work, hills and uneven terrain.
(1)High Reliability: Hydrostatic drive system with world class variable
displacement piston pump and motors delivers leading in class reliability
(2)High Productivity: Dual amplitude and frequency vibration system enable the operator to achieve better compaction result
(3)High Efficiency: Up to 45% grade ability allows the machine to work efficiently on slop and uneven terrains
2. Hydraulic System of Road Roller For Heavy Duty Construction Machinery
Improves efficiency by 20% vs.open center system
Reduces oil contamination, extends life of hydraulic system
Maintains higher system pressure with less energy loss
Allows for simpler hose routings
Requires smaller volume hydraulic tank, reduces maintenance cost
3. Cooling System of Road Roller For Heavy Duty Construction Machinery
Modular cooling package design
Up to 49C ambient temperature cooling capacity
4. Specifications of Road Roller For Heavy Duty Construction Machinery
| Items | Unit | SEM510 | SEM512 |
| Engine Specification | |||
| Emission | China Stagell | China Stagell | |
| Std Rated Power-Gross | kW | 97.5 | 97.5 |
| Rated Speed | r/min | 2,200 | 2,200 |
| Composite Work Cycle Fuel Consumption(I/hour) | N.m/rpm | 560/1,400-1,600 | 560/1,400-1,600 |
| Ambient Capability-STD Sea Level | Deg C | ||
| Ambient Capability-HA Sea Level | Deg C | 49 | 49 |
| Ambient Capability-Cold Weather | Deg C | -10 | -10 |
| Operating Specifications | |||
| Machine Mass w/Std Config | kg | 10,000+3% | 12,000+3% |
| Weight at Drum w/Std Config | kg | 5,900+3% | 6,900+3% |
| Weight on Rear Axle | kg | 4,100 | 5,100 |
| Static Linear Load | N/cm | 217 | 317 |
| Max. Grade Ability w/o vibbration | % | 45 | 45 |
| Articulated Angle | du | 33±1 | 33±1 |
| Turning Radius Inside Drum Edge | mm | 5,990 | 5,990 |
| Compaction Width | mm | 2,130 | 2,130 |
| Travel Speed | |||
| Lo Range | km/h | 0 to 5.5 | 0 to 5.5 |
| Hi Range | km/h | 0 to 12 | 0 to 12 |
| Hydraulic Cycle Time | |||
| Full Turn Time | s | 6±0.5 | 6±0.5 |
| Vibratory System | |||
| Freqency-Hi/Lo | HZ | 33/30 | 33/30 |
| Amplitude-Hi/Lo | mm | 0.90/1.80 | 0.90/1.80 |
| Centrifugal Force-Hi/Lo | KN | 130/215 | 150/245 |
| Dimensions | |||
| Machine Dimensions[L*W*H] | mm | 5,815*2,290*3,130 | 5,815*2,290*3,130 |
| Oscillation Angle | ° | 10±1 | 10±1 |
| Wheelbase | mm | 2,900 | 2,900 |
| Tread Width | mm | 1,600 | 1,600 |
| Drum Width | mm | 2,130 | 2,130 |
| Drum Diameter | mm | 1,590 | 1,600 |
| Tire Specs | 23.1-2612PR12 | 23.1-2612PR12 | |
| Tire Pressure Setting | Mpa | 0.35 | 0.35 |
