Plastic Shell Magnetic Coating Thickness Gauge With Changeable Ferrous Probe

Name: Plastic Shell Magnetic Coating Thickness Gauge With Changeable Ferrous Probe
Brand: Chongqing Leeb Instrument Co.,Ltd

Price Negotiable

Price: Based on quantity

MOQ: 1 Set

Delivery Time: In 7-10 work days

Brand: LEEB

Product Description

Plastic Shell Magnetic Coating Thickness Gauge With Changeable Ferrous Probe

Competitive Coating Thickness Gauge With Changeable Ferrous Probe & Plastic Shell

Functions & Features

1) With High quality Changeable Fe metal probe
2) With two working mode: by direct & by batch;
3) With two measuring methods:continuous and single;
4) Everyone can set the limit of this instrument when using.
5) Easy operation: Switch off automatically or manually.
6) With five calibration specimens: 1024μm,513μm,249μm 99.8μm,48.5μm)

Technical Parameters

Technical Parameters
Model No.		Leeb220
Measuring principle		Fe
Measuring range (µm)		0~1250μm
Probe		Changeable
Shell		Plastic
Accuracy		±(1~3%H+1) μm; H refers to the thickness of testing piece
Minimum resolution (µm)		0.1μm
Min curvature of the min area (mm)		Convex1.5 Concave9
Diameter of the min area (mm)		Φ7
Critical thickness of substrate (mm)		0.5
Memory		200 groups measured data
Dimensions		1157030mm
Power supply		AAA Alkaline battery
Standard Configuration		Main Machine, probe1(Fe), substrate1(Fe), 5 calibration specimens (48.5μm,99.8μm,249μm,513μm,1024μm)
Optional Accessories		Probes,Specimens

Measuring Principle

Measuring Non-magnetic coatings on magnetic substrates (such as aluminum, chromium, copper, rubber coatings on steel, iron, alloy and hard magnetic steel substrates).

When the probe contact with cover, measuring probe and magnetic metal matrix form a closed magnetic circuit, as a result of the existence of a non-magnetic layer, make the magnetic circuit magnetic resistance change, can be derived by measuring the change the thickness of coating.

Units Exchange(μm <=> min)

Unit conversion method is:When turned on the instrument,press“Menu”to select up or down key to enter“Unit”and press“Menu”to enter the Unit setting and press up or down key to select μm or mils,“Exit”to go back and get the new test.

Statistics

The instrument for measuring value automatically,It need at least three measurements to complete statistics:Average,standard deviation,test times, maximum test values, the minimum test values.

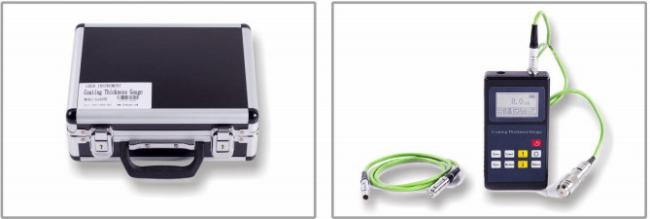

High quality Equipment Box:
