10MHz Portable Ultrasonic Flaw Detector With Large Scan Range Storage

Functions & Features:

● Ultra mini size & weight: design for Field work, Aerial work

● Probe automatic calibration

● Automatically form DAC, AVG (DGS) curves by using standard test block

● Display the echo parameters (depth D, level P, the distance S, the amplitude H)

● Peak memory: Search the highest wave of defects; Record the max. value of defects

● Defect location: display of the defect's horizontal, depth (vertical), and sound path position

● Defect qualitation : Echo envelope, convenient for manual judge

● Weld diagram: directly display the defect location, the bevel form and sound velocity direction

● Built-in Standards: Freely set flaw detection standards of various industries

● Working mode: straight probe, Angle probe, dual crystal probe, penetrating flaw detection

● Storage: 1000 pieces of A-scan images and data

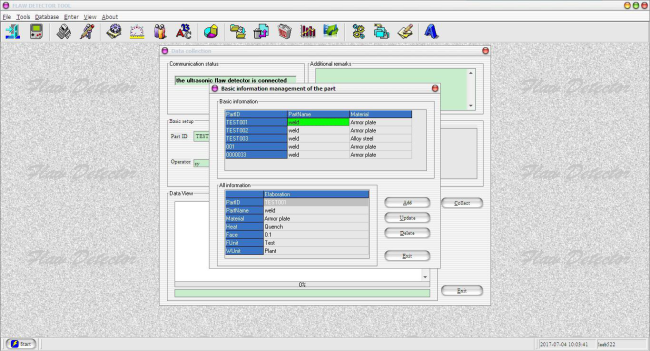

● PC software is available for data analysis, management and reports printing

Application:

● Quickly and accurately detection, positioning, evaluation and diagnosis of various flaws in the work-piece, such as welding cracks, and etc.

● Widely used in Steel Structure Industry, electric power, petrochemical, boiler and pressure vessel, railway transportation, automobiles, machinery, and etc.
