Smart Mini-Size UT Flaw Detector Of Optional Straight , Angle, Dual Crystal Probe And Penetrating Flaw Detection
Functions & Features:
● Ultra mini size & weight: design for Field work, Aerial work
● Automatically form DAC, AVG (DGS) curves by using standard test block
● Display the echo parameters (depth D, level P, the distance S, the amplitude H)
● Defect location: display of the defect's horizontal, depth (vertical), and sound path position
● Defect qualitation : Echo envelope, convenient for manual judge
● Weld diagram: directly display the defect location, the bevel form and sound velocity direction
● Working mode: straight probe, Angle probe, dual crystal probe, penetrating flaw detection
● PC software is available for data analysis, management and reports printing
Application:
Quickly and accurately detection, positioning, evaluation and diagnosis of various flaws in the work-piece, such as welding cracks, and etc.
Widely used in Steel Structure Industry, electric power, petrochemical, boiler and pressure vessel, railway transportation, automobiles, machinery, and other fields.
Technical Parameters:
| Model | Leeb530 |
| Operating Frequency | 0.5MHz～10MHz |
| Scan Range(mm) | 0-1000mm ( Longitudinal wave in Steel ) |
| Velocity Range(m/s) | 1000～9999 |
| Vertical linearity error | ≤3% |
| Horizontal linearity error | ≤0.1% |
| Dynamic Range | ≥36dB |
| Testing sensitivity | ≥50dB (Depth 200mm, Φ2 flat bottom hole) |
| Measuring channel | 16 |
| Storage | 500 |
| PC Connection | Available |
| Gain Range(dB) | 0~110 (adjustable: 0.1dB,2dB,6dB,12dB) |
| Standard Probes |
Straight probe: 2.5MHz, diameter 20mm, cable Lemo (C5-Q9) Angle probe: 4MHz, 60 degree, 8*9 mm, cable Lemo (C5 -Q9) |
| Working mode | Straight probe, Angle probe, Dual crystal probe, Penetrating flaw detection |
| Dimension | 162×105×40mm |
| Weight | 0.68kg (include Li-ion battery) |
| Optional Accessories | Optional probes, Cables, Calibration blocks, Coupling agent |
Standard Configuration:
| Name | Quantity | Name | Quantity |
| Main unit | 1 | PC software | 1 |
| Straight probe | 1 | USB | 1 |
| Angle probe | 1 | Manual | 1 |
| Power adapter | 1 | Certificate | 1 |
| Cables | 2 | Warranty card | 1 |

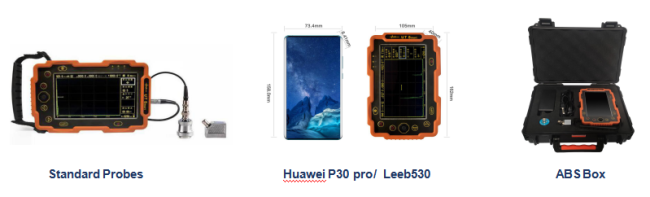

Pictures:
