Metal Shell LEEB Ultrasonic Thickness Meter Steel Thickness Measuring Device
Price:
Based on quantity
MOQ:
1 Set
Delivery Time:
7-15 work days
Brand:
LEEB
Product Description
Metal Shell LEEB Ultrasonic Thickness Meter Steel Thickness Measuring Device
Ultrasonic Thickness Gauge Leeb332
Function & Feature
● High quality metal sheel.
● Two display units: mm and inch.
● With coupling state indication.
● Measuring sound velocity: according to the known thickness of the object, sound velocity of it can be measured directly.
Measuring Materials
Adapted to all kinds of materials which are good conductor of ultrasonic wave, such as metals(steel, cast iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.
Technical Specification
| Model | Leeb332 | ||
| Measuring range(mm) | 0.7~300 | ||
| Resolution(mm) | 0.01 | ||
| Accuracy(mm) | ±(0.5%H+0.01) | ||
| H refers to the thickness of testing piece | |||
| Velocity range(m/s) | 1000~9999 | ||
| Storage | 500 Groups | ||
| Shell | Metal | ||
| Operating Temperature | -10°C~60°C | ||
| Dampness | 20%~90% | ||
| Dimensions(mm) | 130×70×250 | ||
| Power supply | AAA alkaline batteries | ||
| Weight (g) | 200g | ||

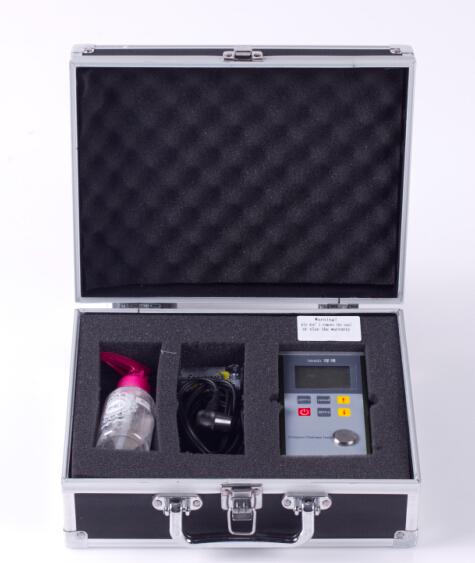

Standard Configuration
| Name | Quantity | Name | Quantity |
| Main unit | 1 | Coupling agent | 1 |
| Standard probe(5P Ø10) | 1 | AAA alkaline battery | 2 |
| Users’ Manual | 1 | Packing list | 1 |
| Qualified Certificate | 1 | Warranty card | 1 |
