Integrated Leeb Hardness Testing Equipment For Data Analysis
Integrated Leeb Hardness Testing Equipment For Data Analysis
D,G,DL Impact Device, Integrated Leeb Hardness Testing Equipment With PC Software For Data Analysis
Features:
● Switch to hardness scales HL,HRA,HRC,HRB,HB, HV,HS
● Compact plastic shell, suitable for use under poor working conditions.
● Test at any angle, even upside down
● Large LCD screen with back-light, showing all functions and parameters
● Direct calibration on HL, HRC, HB.
● Upper and lower limit and sound alarm
Measuring Materials
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel.
Technical Parameters
| Model | Leeb180D | Leeb180G | Leeb180DL |
| Hardness parameter | HL,HRA,HRC,HRB,HB, HV,HS | ||
| Calibration | Direct calibration on HL,HRC,HB. | ||
| Fixed impact device | D | G | DL |
| Main application | Normal Test | For large, heavy work-piece, and the castings with rough surface | For slender, narrow groove / concave |
| Measuring Range | (170-960)HLD,(17.9-68.5)HRC,(30-651)HB,(83-976)HV,(30.6-102.6)HS, (13.5-101.7)HRB, (59.1-88)HRA | (170-960)HL,(32-646)HB (23.9-99.9)HRB | (170-960)HL,(20.6-68.2)HRC, (37-99.9)HRB(150-646)HB,(85-950)HV,(26.5-99.4)HS, |
| Accuracy | ±6HLD (HLD=760) | ||
| Direction | 360° | ||
| Memory | 350 groups | ||
| PC Connection | Available | ||
| Battery | Rechargeable Lithium battery 3.7V | ||
| Operating Temperature | -20℃~+60℃ | ||
| Dimensions | 150*40*45mm | 255*45*45mm | 210*40*45mm |
| Weight | 110g | 260g | 130g |

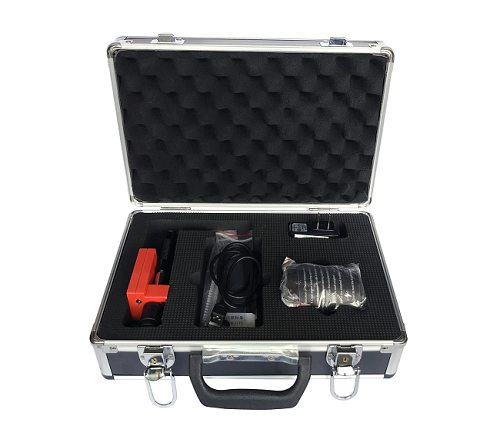

Packing List:
| Name | Quantity | Name | Quantity |
| Main unit ( with fixed probe) | 1 | Calibration block HRC | 1 |
| Users’ Manual | 1 | Packing list | 1 |
| Qualified certificate | 1 | Warranty card | 1 |
| Power charger | 1 | Other Calibration blocks | Optional |
| Support ring | Optional | PC software | Optional |
