Small Load High Definition Brinell Hardness Tester With Motorized Turret

Name: Small Load High Definition Brinell Hardness Tester With Motorized Turret
Brand: Chongqing Leeb Instrument Co.,Ltd

Price Negotiable

Price: Based on quantity

MOQ: 1 Set

Delivery Time: 7-15 work days

Brand: LEEB

Product Description

Small Load High Definition Brinell Hardness Tester With Motorized Turret

Digital Brinell Hardness Tester LHBS-62.5 / LHB-62.5MD

Functions & Features

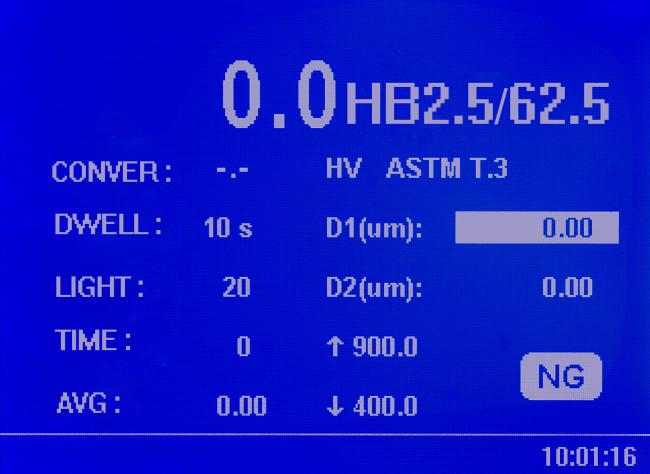

● 4 inches LCD display, Menu structure
● Automatic test process, easy to operate
● High-definition optical system, light source brightness can be adjusted by 20 levels.
● Hardness scales conversion function.
● Keyboard to select test method, and convert between various of hardness scales.
● With built-in printer.

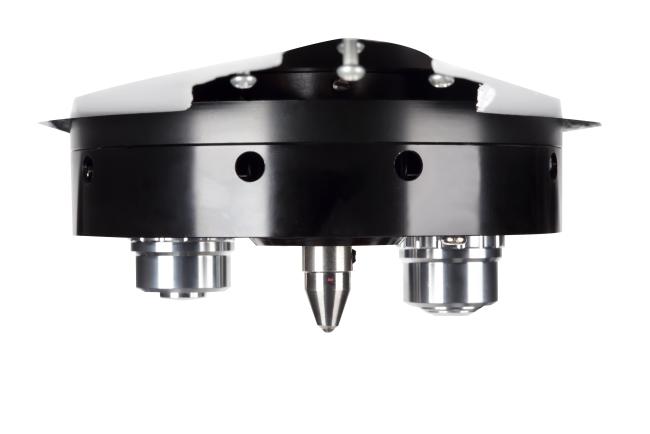

● With Motorized turret function .(LHB-62.5MD)

Application Materials

● Measuring Brinell hardness of ferrous metals, non-ferrous metals and bearing alloys; soft metals, small and thin parts.

Technical Parameters

Model		LHBS-62.5 /LHB-62.5MD
Conversion Scales		Brinell, Rockwell, Superficial Rockwell
Measuring Range		8-650HBW
Testing Force		1,5,10,15.625,30,62.5kgf
Max Height of Specimen		165mm
Min Measuring Unit		0.25um(depends on the optional object glass)
Load control		Automatic (loading, duration, unloading)
Total Magnification of Microscope		Observing or Measuring 50X Measuring 100X
Data input		Built-in Printer
Carried Standard		EN ISO 6507, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2,JJG150
Distance of Indenter to outer wall		130mm
Power supply		AC220+5%,50~60Hz
Main body Weight		About 45kg

Standard Accessories

Name	Quantity	Name	Quantity
Main Unit	1	Accessory Case	1
Objectives (5X , 10X), micrometer (10X)	3	Diameter φ2.5,φ5,φ10 mm Hard Alloy Steel Ball Indenter	3

HBW/3000/10(150~250) HBW/1000/10(75～125) HBW/187.5/2.5(150～250)	3	Large, Medium, “V” shaped Testing Table	3


Diameter fastening screw	1	2A Fuse	2
Dust proof covering	1	Power Cable, Print paper	Each 1
HB Reference table	1	Users’ Manual and Product Certificate	Each 1
