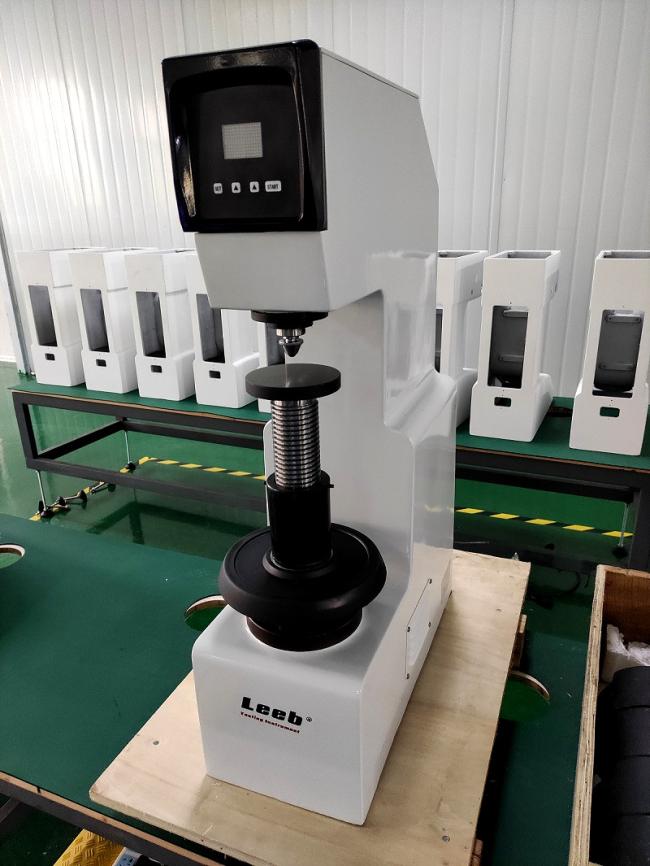

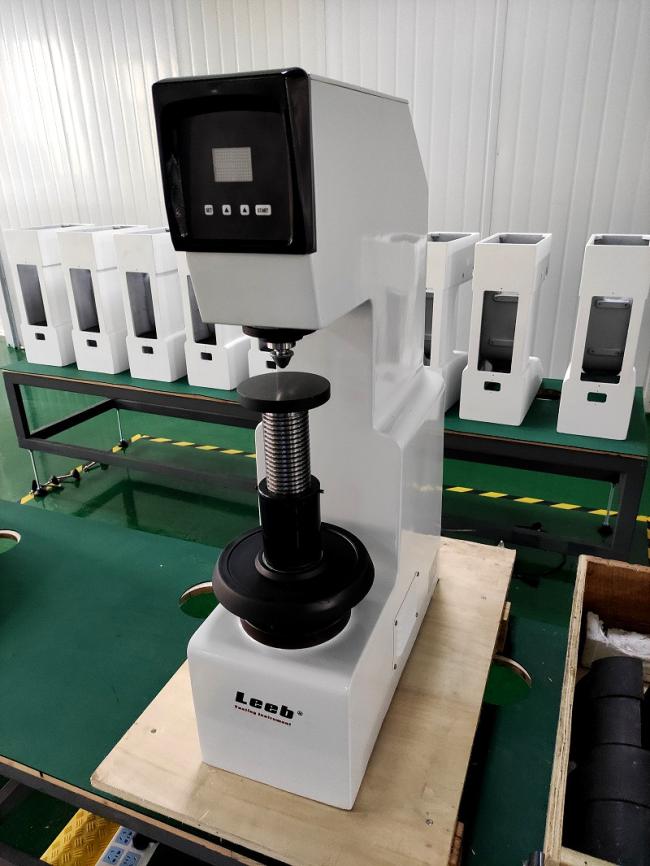

Brinell Hardness Tester, Basic model
Main Features:
● Electronic commutator switch is adopted, which has the characteristics of high precision, wide range of testing, automatic loading on test force,
automatic holding time, automatic unloading.
● High precision microscope measurement system in readout
● Widely used in quality monitoring of the production spot, with strong adaptability to the working environment
● The accuracy is in accordance with GB / T 231.2, ISO 6506-2, USA ASTM E10.
● With Strong construction, good rigidity, durability, and efficient testing
Application:
Suitable for the precision testing of parallel plane, Stable and reliable for the curved surface testing.
Test Ferrous metals, nonferrous metals and bearing alloy materials
Technical Specifications:
| Model | LHB-3000 |
|
Testing Force |
187.5kgf(1839N),250kgf(2452N),750kgf(7355N),1000kgf(8907N),3000kgf (29420N) |
| Max Height of Specimen | 230mm |
| Hardness testing Range | 8~650HBW |
| Magnification of Microscope | 20X |
| Carried Standard | EN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2,JJG150 |
| Distance of Indenter to outer wall |
120mm |
| Indication of Hardness Value | Checking Table |
| Power supply | AC380/220 |
| Overall Dimension (mm) | 700*268*842mm |
| Net Weight | About 210kg |
Standard Accessories
| Name | Quantity | Name | Quantity |
| Measurement microscope(20X) | 1 | Diameter 2.5,5,10mm Hard Alloy Steel Ball Indenter | Each 1 |
| Standard Blocks | 2 | Large, Medium, “V” shaped Testing Table | Each 1 |
