Laser LED Lighting Scintillation Material Ce GAGG Crystal
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
3-4 weeks
Brand:
Crystro
Product Description

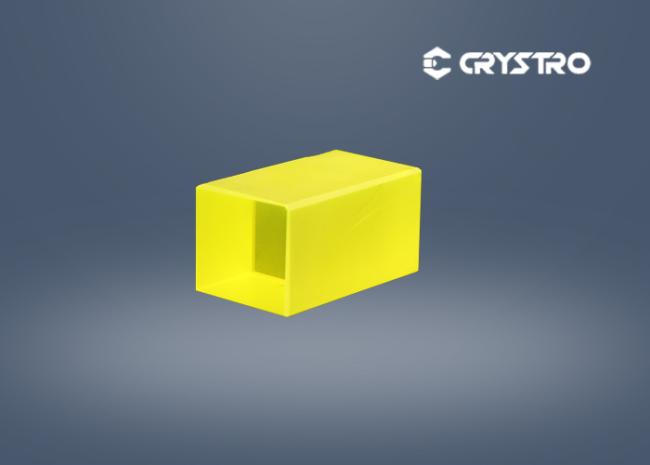

Scintillation Crystal Material GAGG(Ce) Crystal For Laser & LED lighting
Introduction :
Ce: GAGG is a relatively new single-crystal scintillator with many properties, such as high light yield, high density, good energy resolution, good emission peak matching with silicon sensor, and low intrinsic energy resolution. In addition, this material is no-hygroscopic and no self-radiative, which is widely used in PET, PEM, SPECT, X-ray and γ-ray detection, and so on.
Transmission Curve :
Material Properties :
| Property | Value |
|---|---|
| Chemical Formula | Ce:Gd3Al2Ga3O12 |
| Atomic Number (Effective) | 54.4 |
| Growth Method | Czochralski |
| Density | 6.63g/cm3 |
| Mohs Hardness | 8 |
| Melting Point | 1850℃ |
| Thermal Expansion Coeff. | TBA x 10‾⁶ |
Main Application:
- Medical Imaging - PET, PEM, SPECT, and CT
- Specialist applications in high energy, nuclear, space, and medical physics
- Scanning electron microscopy (SEM)
Crystro offers:
| Orientation Tolerance | ＜0.5° |
| Thickness/Diameter Tolerance | ±0.05mm |
| Parallel | 10‘’ |
| Perpendicular | 5' |
| Surface Quality | 10/5 |
| Clear Aperture | ＞90% |
| Chamfer | ＜0.2*45° |
| Max Dimensions | MaxΦ 60mm |
Product Detail :
