10 Tons Lifting Height 3m Diesel Powered Forklift Load Center 600mm
10 Tons Lifting Height 3m Diesel Powered Forklift Load Center 600mm
Size Information
| Diesel Forklift HM CPCD100 | ||||||
| Item | Model | Unit | HM CPCD100 | |||
| 1 | Power type | Diesel | ||||
| 2 | Rated capacity | kg | 10000 | |||
| 3 | Load center | mm | 600 | |||
| 4 | Operator type | Drive in seat | ||||
| Size | ||||||
| 5 | Max. lift height of mast with Load-backrest | mm | 4230 | |||
| 6 | Max.lift height of fork(standard) | mm | 3000 | |||
| 7 | Height of mast | mm | 2840 | |||
| 8 | Free lift height | mm | 180 | |||
| 9 | Height of load-backrest | mm | 1015 | |||
| 10 | Distance from seat to overhead guard | mm | 1080 | |||
| 11 | Overhead guard height | mm | 2560 | |||
| 12 | Length without fork | mm | 4270 | |||
| 13 | Front overhang | mm | 720 | |||
| 14 | Rear overhang | mm | 742 | |||
| 15 | Wheel base | mm | 2800 | |||
| 16 | The height of traction pin | mm | 520 | |||
| 17 | Min. ground clearance | mm | 225 | |||
| 18 | Overall width | mm | 2165 | |||
| 19 | The distance between forks | mm | 2460/450 | |||
| 20 | Tread(front /rear) | mm | 1600/1800 | |||
| 21 | Min. Turning radius(outside) | mm | 4080 | |||
| 22 | Min. Turning radius(inside) | mm | 210 | |||
| 23 | Min. Intersecting aisle | mm | 3540 | |||
| 24 | Mast tilt angle | deg | 6°/6° | |||
| 25 | Fork size | mm | 1520X175X80 | |||
| Performance | ||||||
| 26 | Speeds | Max.Drive speeds(with/without load) | km/h | 20/22 | ||
| 27 | Lifting speeds (with load) | mm/s | 340 | |||
| 28 | Lowering speeds(with /without full load) | mm/s | 600 / 300 | |||
| 29 | Max. tractive force | KN | 58 | |||
| 30 | Max.grade ability (with/without full load) | % | 22 | |||
| Weight | ||||||
| 31 | Total weight | kg | 12860 | |||
| 32 | Weight Distribution full load (front/ rear) | kg | 20480/2170 | |||
| 33 | Weight Distribution zero load(front / rear) | kg | 5770/6880 | |||
| Wheels and Tyres | ||||||
| 34 | Quantity of wheels | 4x/2 | ||||
| 35 | Type of tyres | Pneumatic | ||||
| 36 | Tires | Front | 9.00-20-16PR | |||
| 37 | Rear | 9.00-20-16PR | ||||
| 38 | Driving Brake | Hydraumatic pedal | ||||
| 39 | Parking Brake | Mechanical manual | ||||
| Control device for driving and transmitting | ||||||
| 40 | Battery | V/AH | 24/2X80 | |||
| 41 |
Engine (standard) |
Model | ISUZU 6BG1 | |||
| 42 | Rated output | kw/rpm | 83/2000 | |||
| 43 | Rated torque | N.m/rpm | 416.8/1500 | |||
| 44 | No.of cylinder | 6-105x125 | ||||
| 45 | Displacement | L | 6.494 | |||
| 46 | Fuel tank capacity | L | 140 | |||
| 47 | Number of speeds for transmission | 2-2 Power shift transmission | ||||
| Configuration | ||||||
| 48 |
With duplex 3m wide view mast. With auto transmission, electronic gear shift. With superior pneumatic tires, double front tires. With hydraulic fork positioner. With full LED lights, back buzzer, warning lamp, horn, safety seat with belt. With free toolbox, manuals. Mast should be seperated when loading. |
|||||
Introduction
1.Integrated central control box the reliability of electric system.
- 2.Ergonomical design ensures best operation.
- 3.Energy saving hydraulic system decreases fuel consumption.
- 4.High-quality hydraulic hoses, no oil leakage.
- 5.Wide-view mast design improves the productivity and safety.

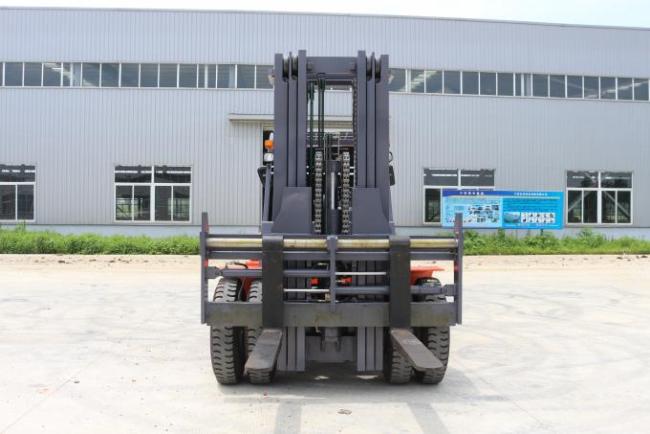

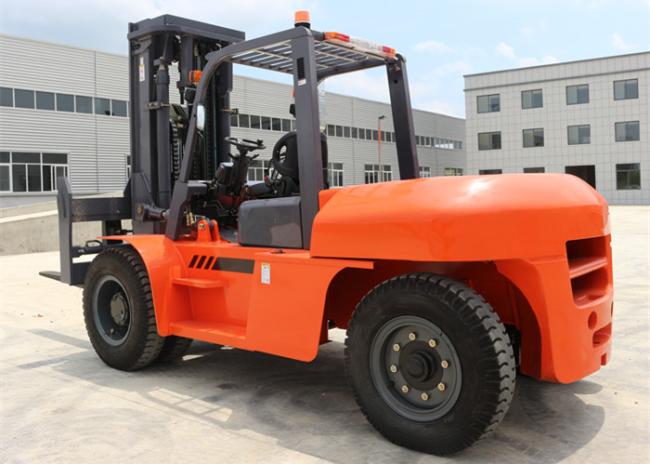

Product Details
Production Scene

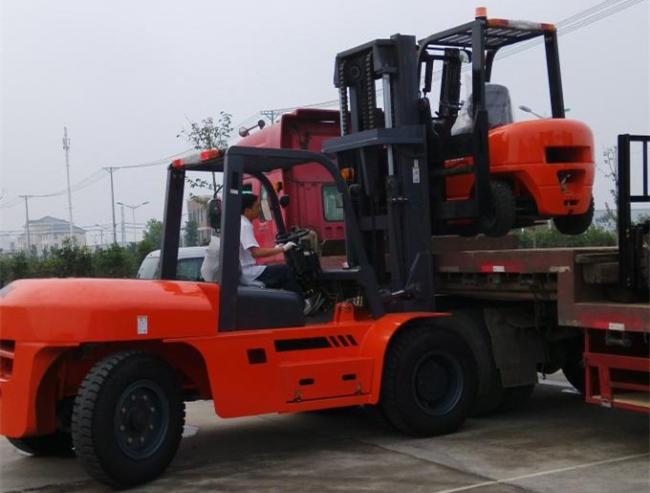

Packing &Shoping
FAQ
Q1: Can Herrman provide customized products? OEM products or ODM products?
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
