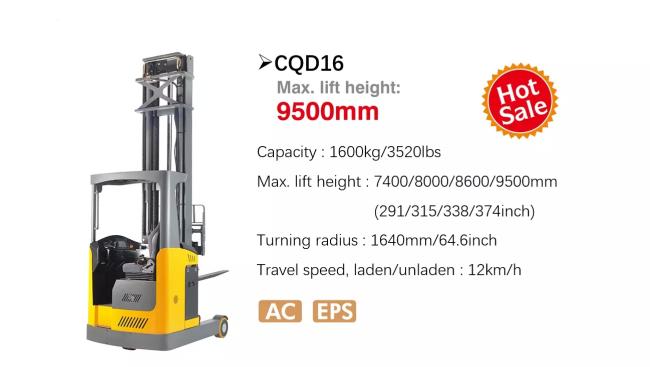

Max Lift Height 9.5m CQD16 1.6 ton Electric Lift Truck
Forklifts 1600kgs 1.6ton Max Lift Height 9.5m with AC motor Electric Reach Truck Drive Wheel
Electric Lift Truck PRODUCT DESCRIPTION
Herrman Forklifts 1600kgs 1.6ton Max Lift Height 9.5m with AC motor Electric Reach Truck Drive Wheel

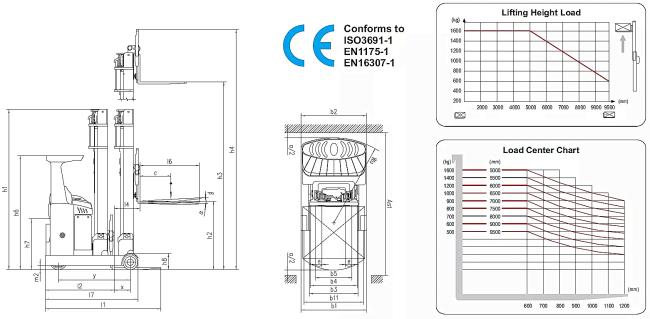

| Model | CQD16 | |
| Capacity / rated load | (kg/lbs) | 1600/3528 |
| Max. lift height | h3(mm/inch) | 7400/8000/8600/9500(291/315/339/374) |
| Load centre distance | c(mm/inch) | 600/23.6 |
| Height, mast lowered | h1(mm/inch) | 3890/153.1 |
| Free lift | h2(mm/inch) | 3200/125.9 |
| Height, mast extended | h4(mm/inch) | 10500/413.4 |
| Height of overhead guard (cabin) | h6(mm/inch) | 2200/86.6 |
| Seat height / stand height | h7(mm/inch) | 1050/41.3 |
| Height of crura | h8(mm/inch) | 310/12.2 |
| Overall length | l1(mm/inch) | 2400/94.5 |
| Length to face of forks | l2(mm/inch) | 1320/52 |
| Overall width | b1/b2(mm/inch) | 1260/50 |
| Fork dimensions | s/e/l(mm/inch) | 35*100*1070(1.4*3.9*42.1) |
| Reach distance | l4(mm/inch) | 560/22.1 |
| Aisle width for pallets 1000x1200 crossways | Ast(mm/inch) | 2750/108.3 |
| Aisle width for pallets 800x1200 lengthways | Ast(mm/inch) | 2810/110.6 |
| Turning radius | Wa(mm/inch) | 1640/64.6 |
| Travel speed, laden / unladen | Km/h | 12 |
| Lift speed, laden / unladen | m/s | 0.35/0.4 |
| Service weight (with battery) | (kg/lbs) | 3600/7938 |

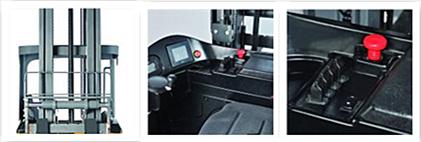

Advantages:
● With powerful AC drive motor, increase the production efficiency.
● Offers three different driving speed options ( Low/medium/high).
● Standard With ELECTRIC POWER STEERING system (EPS ) , steering is very light.
● Hydraulic system with proportional lifting, precisely control different speed .
● Steering wheel can be turn at 360degrees and or 180 degrees, two type steering functions can be freely switched as demand.
● Two lifting cylinder on two sides of mast and provide vide view in the front.
● Have multifunction instrument: show steering wheel direction. BDI battery status, faulty code, different driven speed.
● Keypad ignition with PIN CODE, easy to access the management system of truck.
● High solution camera, easy to operate for high fork position.
● Height position offers easier pallet handling at high height position.
● Side way moving battery.
● Provide different option of overhead guard width, have smaller overhead guard can operate in driven- in racking warehouse.
CE Certified.| Quantity(Units) | 1 - 10 | 11 - 20 | >20 |
| Est. Time(days) | 21 | 21 | To be negotiated |
PACKING&SHOPING
Electric Lift Truck PRODUCTION SCENE
FAQ
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
