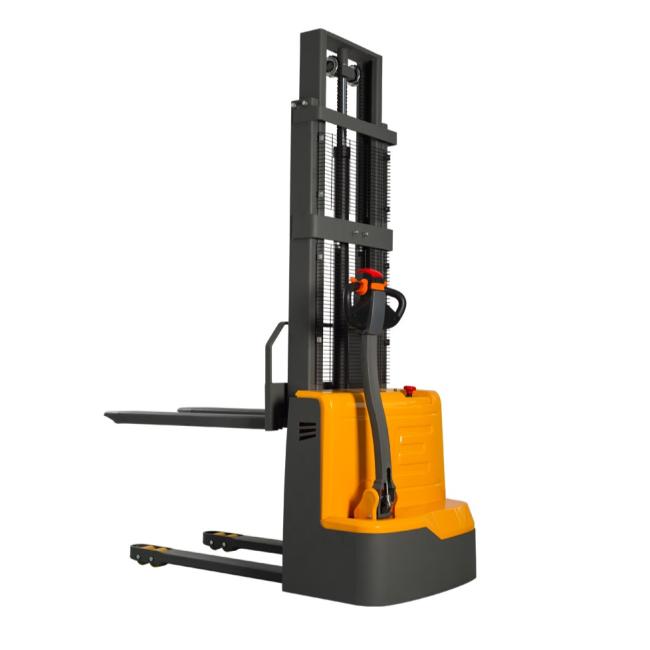

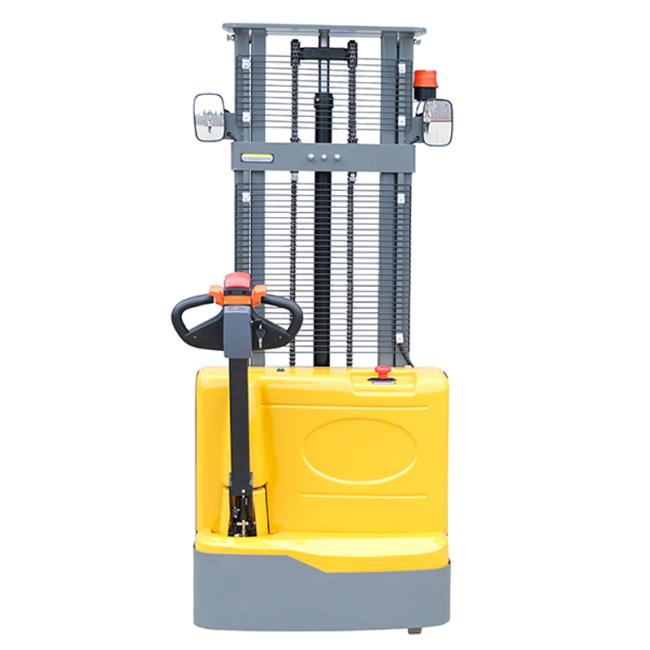

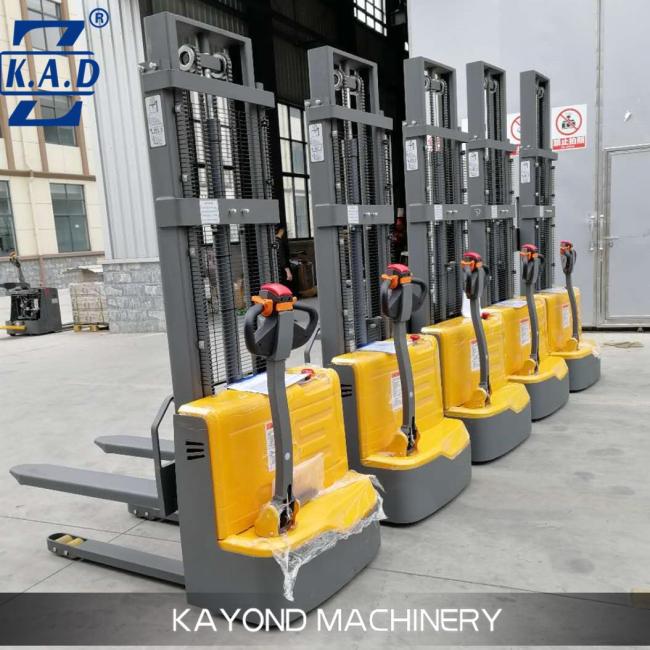

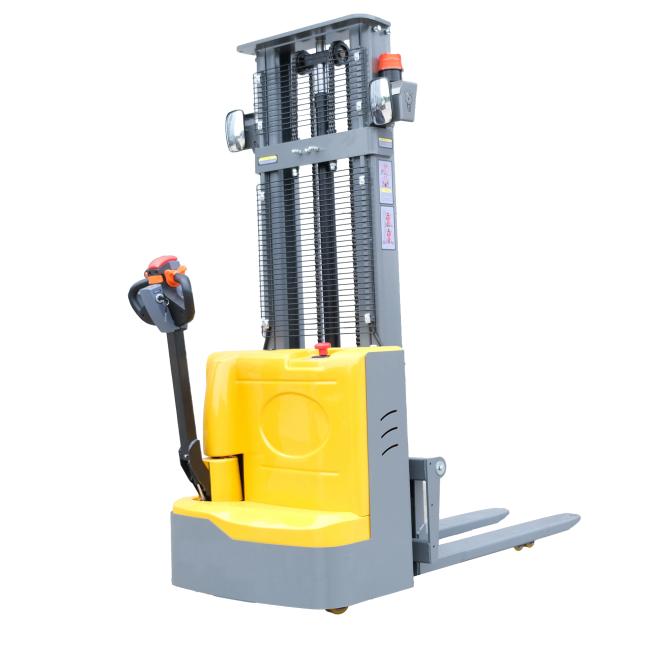

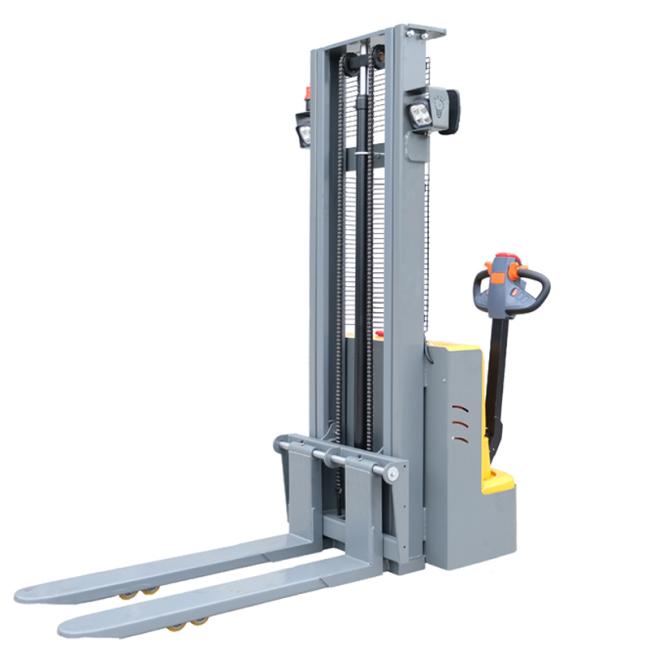

Full Electric Walkie Stacker 1t 1.6 Ton 4m Battery Operated Forklift 1000kg 4meter

Price Negotiable

Price: To be negotiated

MOQ: 1unit

Delivery Time: 7work days

Brand: KAD

Product Description

Full Electric Walkie Stacker 1t 1.6ton 4m Battery Operated Forklift 1000kg 4meter

Product Description

The Walkie Stacker, also known as a pedestrian-operated stacker or walk-behind lift truck, is a versatile material handling solution designed for efficient lifting, transporting, and stacking of pallets and goods in warehouses, factories, and distribution centers. This equipment significantly enhances the operational efficiency and safety of any facility requiring the movement of pallets at varying heights.

Ease of Operation,Versatility,Stability and Safety,Durable Construction,Efficient Power System,Low Maintenance

MODEL				CDDW10 CDDW15
Features	Drive system			Battery
	Driving mode			Walkie
	Load Capacity	Q	KG	1000
	Load Center	C	MM	500
Weight	Weight(With battery)		KG	480/495/515/535
Wheels	Material			PU
Size	Lifting Height	H3	MM	1600/2000/2500/3000
	Lowest Mast	H1	MM	2080/1580/1830/2080
	Max.Height when operating	H4	MM	2080/2730/3230/3730
	Min.Height of Fork	H13	MM	≤90
	Length	L1	MM	1770
	Width	B1	MM	850
	Fork Length	L	MM	1070
	Wheelbase	Y	MM	1250
	Fork Outside Width	B5	MM	680
	Fork Inside Width		MM	305
	Min.Turning Radius	WA	MM	1390
Performance	Driving Speed (Empty/Full Load)		MM/S	5.0/5.0
	Lifting Speed (Empty/Full Load)		MM/S	140/135
	Descending Speed (Empty/Full Load)		MM/S	150/155
	Max.Gradient (Empty/Full Load)		°	7/5
	Brake			Electromagnetic brake
	Driving Motor		KW	DC/0.75
	Lifting Motor		KW	DC/2.2
Battery	Capacity		V/Ah	24/80Ah
