Bearing Steel GCR15 Special Sprag for One Way Clutch Bearings
Price:
USD32-USD35 PER 10000 PIECE
MOQ:
5000
Delivery Time:
7-15 Days
Brand:
SUMA
Product Description

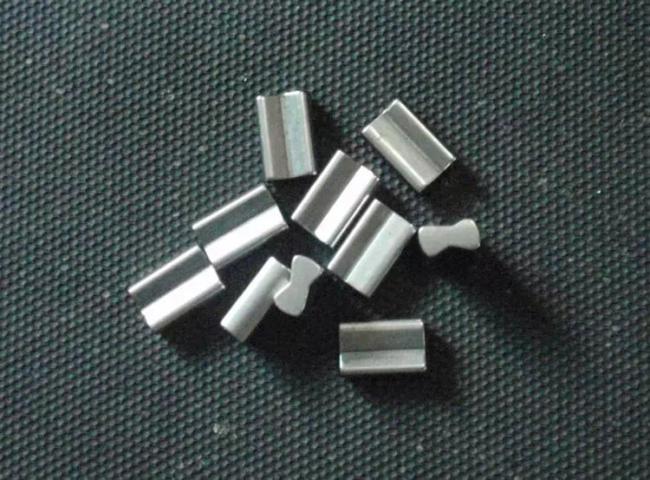

Special Sprag for One Way Clutch Bearings
Top characteristics of Sprag Roller
Sprag roller are widely uased on one way clutch bearings .
Standard Materials
- Bearing steel
| Name | Sprag for one way clutch bearing |
| Material | Bearing Steel GCR15 |
| Hardness | HRC60-65 |
| Bore Tolerance | ±0.01mm |
| Length Tolerance | ±0.05mm,±0.03mm |
| Chamfer | R0.10-R0.20mm |
| Parallelism | 0.02mm,0.01mm |
| Verticality | 0.02mm,0.01mm |
| Roughness | Ra0.2um,Ra0.1um |
Finish
| olecranon section | 5.6*3.75*(3.4-12MM) 5.02*2.77*(4-12.9MM) 4.25*2.4*(4-10MM) |
| figure eight section | 8.45*4.5*(4-13.5MM) |
| fan-shaped section | 4.1*2.7*(4-9.3MM) Grooving |
| Cut a single groove in the middle of the peach-shaped section, cut shoulders on both sides, etc. | Any shape can be customized according to customer's requirements |
