RSBW50 RSBW 50 One Way Sprag Bearing Backstop Clutch for Bucket Elevator
RSBW50 RSBW 50 One Way Sprag Bearing Backstop Clutch for Bucket Elevator
Features
Application:

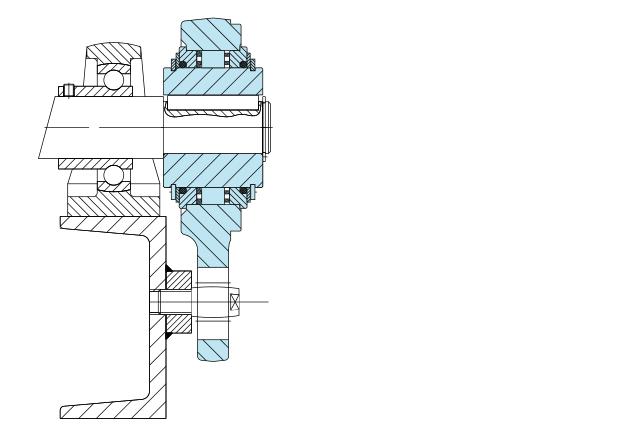

Primarily used as a backstop. This type provide a high torque capacity with a minimum space requirement.
Structure:
Type RSBW is a DC sprag type freewheel. It is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield protected O rings.
Technical Datas
| Product name | Sprag type freewheel clutches |
| Model | RSBW45 / RSBW50 / RSBW55 |
| Torque capacity | 1295Nm |
| Overrunning speeds | 300 min -1 |
| Inner diameter | 45mm / 50mm/ 55mm |
| Outer diameter | 132mm |
| Thickness | 52mm |
| Weight | 4.6kg |
| Application | Fishinery machinery, Reducer, household appliances |
| Package | Carton Box |
| Payment terms | TT, L/C, D/A, D/P, Western Union, Paypal |
| Delivery time | 7-10 Days |

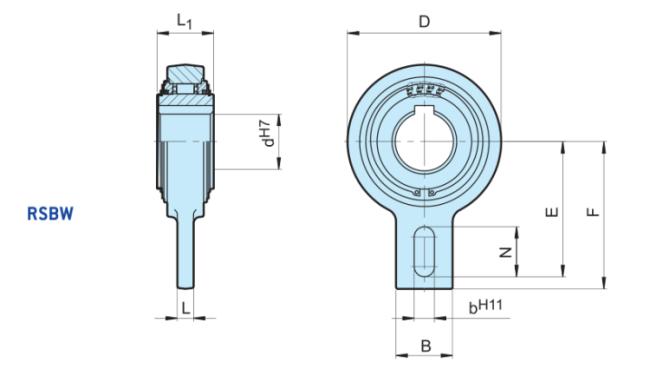

Dimensions and Capacities
| Type | Size | Overrunning Speeds | Weight | |||||||||
|
|
dH7 | TKN1) | nimax | D | L 1 | F | E | B | N | L | bH11 | |
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| 20 | 375 | 400 | 106 | 35 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2 | |
| 25 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.6 | |
| 30 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.5 | |
| 35M | 375 | 400 | 106 | 35 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2 | |
| 35 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.4 | |
| 40 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.6 | |
| 45 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.5 | |
| 50 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.5 | |
| 55 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.4 | |
| 60 | 2550 | 250 | 161 | 54 | 140 | 130 | 70 | 35 | 15 | 18 | 6.5 | |
| 70 | 2550 | 250 | 161 | 54 | 140 | 130 | 70 | 35 | 15 | 18 | 6.4 | |
| 80 | 4875 | 200 | 190 | 70 | 165 | 150 | 70 | 45 | 20 | 25 | 9.9 | |
| 90 | 4875 | 200 | 190 | 70 | 165 | 150 | 70 | 45 | 20 | 25 | 9.8 | |
Pictures
FAQ
Q: How do you pack the goods?
- Total less than 25 KG : 29*28*19CM carton box
- Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
