HF Series HF0812 One Way Needle Bearings

Price Negotiable

Price: USD0.18-USD0.35 PER PIECE

MOQ: 10

Delivery Time: 1-2 Day

Brand: SUMA

Product Description

HF Series HF0812 One Way Needle Bearings

Technical Datas of HF0812 One Way Needle Bearings

HF Series One Way Needle Bearings
Outer Race Material: ST14

Needle Material: GCr15
Inner Bore Range: 3-35mm
Outer Bore Range: 6.5-42mm
Height Range: 6-20mm
Torque Range: 0.2-121Nm

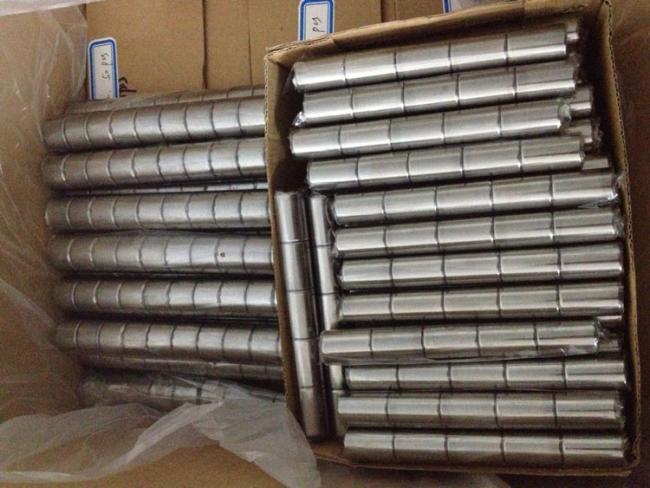

Package: Roll pack + Carton Box

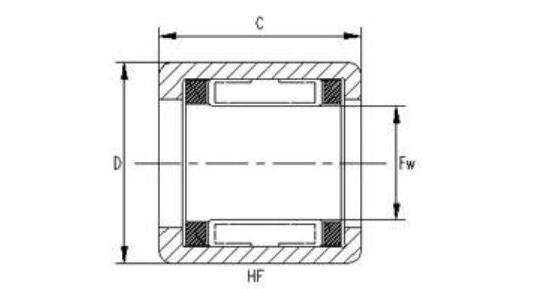

Dimensions and Capacities of HF0812 One Way Needle Bearings

Shaft Dia.	Bearing Designation		Mass	Dimensions			Permissible Torque	Limiting Speed
Shaft Dia.	Bearing Designation		Mass	Fw	D	C	Permissible Torque	Rotating Shaft Min-1	Rotating Outer Ring Min-1
mm	Plastic Springs	Steel Springs	g	mm			Nm	rpm	rpm
3	HF0306KF		0.9	3	6.5	6	0.2	36000	7000
4	HF0406KF	--	1	4	8	6	0.34	34000	8000
4	HF0406KFR	--	1	4	8	6	0.1	34000	8000
6	HF0608KF		2.8	6	10	8	1.5	20000	11000
	HF0612KF	HF0612	3	6	10	12	1.76	23000	13000
	HF0612KFR	HF0612R	3	6	10	12	1.76	23000	13000
		HF061210	3.5	6	12	10	3	20000	13000
8	HF0812KF	HF0812	3.5	8	12	12	3.15	17000	12000
	HF0812KFR	HF0812R	3.5	8	12	12	4	17000	12000
	--	HF061210	3.2	8	12	10	3	16000	12000
	--	HF081410	3.6	8	14	10	4.6	15000	11000
	--	HF081610	4.1	8	16	10	5.5	15000	11000
	--	HF081412	4	8	14	12	5	16000	12000
10	HF1012KF	HF1012	4	10	14	12	5.3	14000	11000
10	HF1012KFR	HF1012R	4	10	14	12	1.5	14000	11000
12	--	HF1216	11	12	18	16	12.2	11000	8000
14	--	HF1416	13	14	20	16	17.3	9500	8000
16	--	HF1616	14	16	22	16	20.5	8500	7500
18	--	HF1816	16	18	24	16	24.1	7500	7500
20	--	HF2016	17	20	26	16	28.5	7000	6500
25	--	HF2520	30	25	32	20	66	5500	5500
30	--	HF3020	36	30	37	20	90	4500	4500
35	--	HF3520	40	35	42	20	121	3900	3900

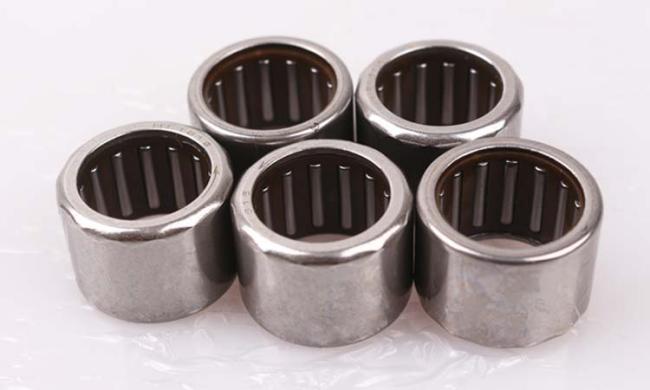

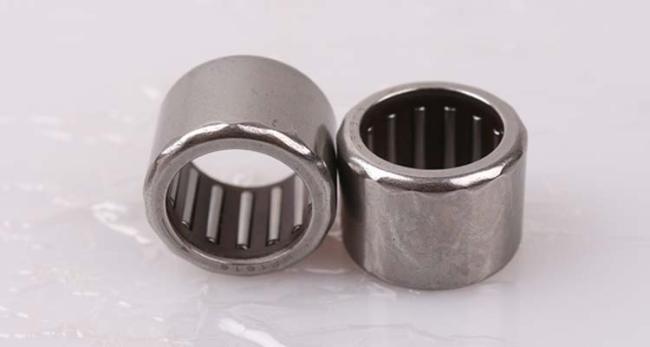

Pictures of HF0812 One Way Needle Bearings

HF One Way needle bearing are one-directional clutches, which transmit torques in a single path ;

are to be had without or with an incorporated bearing arrangement ;

provide very particular indexing ; permit excessive indexing frequencies ;

have a low overrunning frictional torque ；

are to be had without or with greasing ；

are specifically compact in a radial path and consequently allow extraordinarily compact designs ；

are appropriate for housing substances crafted from steel, mild steel or plastic ；

may mixed with drawn cup needle rollers bearings with open ends HK and drawn cup needle roller bearings with closed end BK ； have an in depth variety of applications, as an example as indexing clutches, back-preventing clutches and overrunning clutches .
