BSEU40-35 450RPM One Way Freewheel Clutch Bearing Replacement For Conveyor System
Price:
USD100-USD130 PER PIECE
MOQ:
1
Delivery Time:
7-10 Days
Brand:
SUMA
Product Description
BSEU40-35 Backstop Clutch One Way Freewheel Bearing for Conveyor System
Features of BSEU backstop Clutch
BSEU Series Cam Clutch was developed as a user-friendly backstopping Cam Clutch. It has cam and roller construction which is the same as the smaller size BS Series Cam Clutch. The outer race has a special shape which combines the torque arm providing easy installation. These Cam Clutches are shipped pre-lubricated with grease and ready for installation. Most often used as a backstop in applications where limited space is available.
Dimensions and Capacities of BSEU backstop Clutch
| Item | BSEU40-35 |
| Material | GCr15 |
| Bore dia. | 35 mm |
| Outer dia. | 118 mm |
| Width | 55 mm |
| Torque capacity | 1440 N.m |
| Overrunning limiting speed | 150 r/min |
| Weight | 3.75 kg |
| Package | Carton box, wooden box or as your requirements |
| Model | Bore Size | Torque (N·m) |
Max. Overrunning (r/min) Inner Race |
D | D2 | L1 | L | B | F | b | N | E | J | W. MIN | W. Max | |
| Dia ( H7) |
Keyway | |||||||||||||||
| BSEU25-20 | 20 | 6×2.8 | 216 | 500 | 83 | 42 | 35 | 12 | 40 | 90 | 15 | 35 | 5 | 1 | 0.999 | 0.948 |
| BSEU25-25 | 25 | 8×3.3 | 216 | 500 | 83 | 42 | 35 | 12 | 40 | 90 | 15 | 35 | 5 | 1 | ||
| BSEU40-20 | 20 | 6×2.8 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | 3.781 | 3.363 |
| BSEU40-25 | 25 | 8×3.3 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
| BSEU40-30 | 30 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | |||
| BSEU40-35 | 35 | 10×3.3 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
| BSEU40-40 | 40 | 12×3.3 | 1,440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
| BSEU70-45 | 45 | 14×3.8 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 1.5 | 7.607 | 6.541 |
| BSEU70-50 | 50 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 1.5 | |||
| BSEU70-55 | 55 | 16×4.3 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
| BSEU70-60 | 60 | 18×4.4 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
| BSEU70-65 | 65 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | |||
| BSEU70-70 | 70 | 20×4.9 | 3,140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
| BSEU90-75 | 75 | 4,700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | 10.046 | 9.265 | |
| BSEU90-80 | 80 | 22×5.4 | 4,700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | ||
| BSEU90-85 | 85 | 4,700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | |||
| BSEU90-90 | 90 | 25×5.4 | 4,700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | ||
Mounting and Coupling of BSEU backstop Clutch

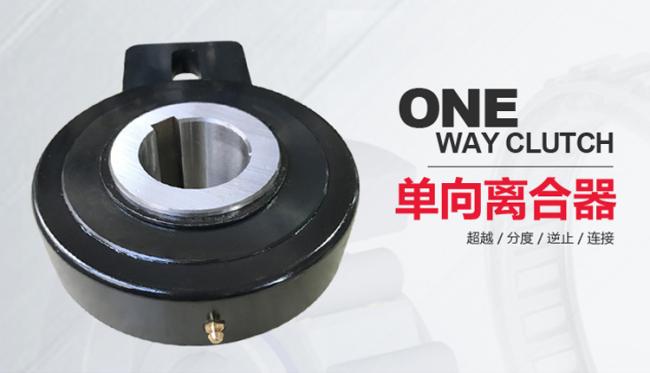

Pictures of BSEU backstop Clutch
