1.2mm-2mm C Profile Steel Roll Forming Machine Cross Bar Shelf Cross Bracing

Cross Bracing Cross Bar Shelf C Profile Roll Forming Machine Exported To Chile 58*30

Back-to-back column(shelf roll forming machine) sets should be mounted in mirror image, i.e. the two column sets are left-right symmetrical rather than anti-symmetrical when viewed from the end of the rack.The purpose of this is to ensure that the column set links can be attached to the columns close to the end points of the diagonal braces and that the column set links can adequately transmit the impact force when there is an incidental impact force acting on one side of the column set. Although not compulsory, the provision of column group links can provide additional safety at minimal cost and it is therefore recommended that the arrangement of column group spars, whether criss-cross(cross bracing roll forming machine) or diamond or some other type, which has a bearing on the column, is a design that hasThis design has an impact on the load capacity of the columns and needs to be considered quantitatively in the structural design.( diagonal bracing roll forming machine)

Flow chart:

Decoiler--Guiding--Leveling--Hydraulic punch--Roll former--Hydraulic cut--Out table

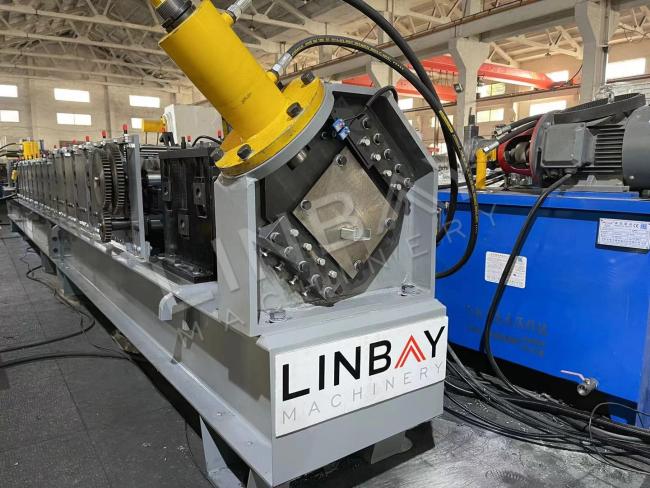

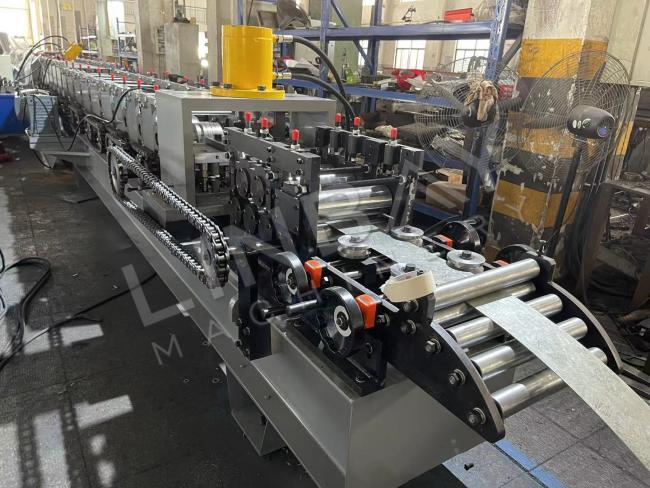

Pictures of components:
