1.5mm-3mm Cable Tray Roll Forming Machine C U Z Sigma

India Cee Zee Sigma Steel Frame Automatic Roll Forming Machine

Advantages of Sigma-beams(CZSigma purlin roll forming machine)

1. Sigma-beam(Sigma purlin roll forming machine) skeletons are light in weight and require no additional lifting equipment; they can be handled and installed manually

2. Sigma-beam elements can easily achieve a wide variety of architectural appearances, while spans of up to 9 metres or more allow for spatial division as desired.

3. 100% of Sigma-structure materials can be recovered and recycled. Other maintenance materials are 85% recoverable and recyclable

4. Sigma-beams(CZ Sigma profile roll forming machine) are made of galvanised steel, which is durable and maintenance-free.

5. Sigma-beams have better overall performance than H-beams and V-beams and can withstand foundation snow loads of over 1.55KN square metres and can withstand It can withstand hurricane winds of more than 50 metres per second, with a wind resistance rating of 12 or more.

6. The Sigma-shaped steel(Steel frame roll forming machine) skeleton and outdoor maintenance panels are connected by galvanised self-tapping screws, forming a very strong plate and rib structure system, which This gives the structural system superior resistance to earthquakes and horizontal loads.

Flow chart of CZ Sigma purlin roll forming machine:

Manual decoiler--Guiding--Leveling--Hydraulic punch--Hydraulic cut--Roll forming--Out table

Forming Sigma has 4 more forming passes on top of the C type. Therefore the C-shape roll formingmachine has the possibility to produce Sigma profile steel. If you want one machine to produce C, Sigma and Z profiles at the same time, then we will use the front cutting solution, which will reduce the cost of cutting and apply the above three profiles. Because of the front cutting, we will also add a motor in the leveling area, so that the feeding port can have the power to drive the steel coil into the forming machine.

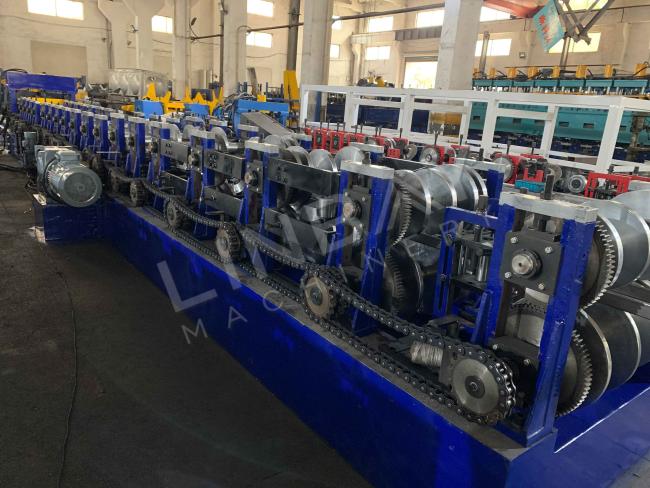

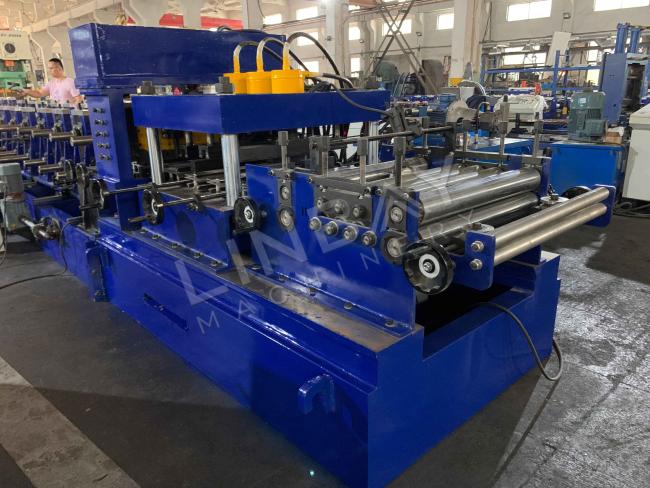

Pictures of CZ Sigma purlin roll forming machine:
