1000mm Galvanized Steel Floor Deck Roll Forming Machine
Closed End Floor Deck Roll Forming Machine 1000mm Galvzanized Steel
Closed end floor decks. (metal deck roll forming machine/metal deck bending machine)
1,Strong concrete grip: very good grip between the steel bearing plate and concrete, avoiding the phenomenon of slipping off with the concrete. (floor decking roll forming machine/ floor decking bending machine)
2, superior combined floor section: the closed-ended slab is very close to the bottom of the slab, with stronger positive bending moment resistance moment.
3,Excellent fire resistance: the special design of the closed-ended ribs of the closed-ended floor slab provides better fire resistance. (Steel deck roll forming machine/Steel deck bending machine)
4. Superior suspension system: free to be moved, dismantled or reinstalled.
5,Simple and rapid construction: no plugging, no slurry leakage, shorten the construction period.
6,Flat appearance of the underside of the slab: there is no need for a ceiling underneath the slab; it is aesthetically pleasing. (roof deck roll forming machine/ roof deck bending machine)
Flow chart of Closed End Floor Deck Roll Forming Machine 1000mm Galvzanized Steel:
Hydraulic decoiler--Guiding--Roll forming--Hydraulic cut--Out table
Closed End Floor Deck Roll Forming Machine 1000mm Galvzanized Steel Parameters:
| Component 1: | Hydraulic decoiler | 5-7.5Tons |
| Component 2: | Roll forming machine |
2*11kw forming motor 26 forming stands Shafts φ85mm Embossing rollers 1 stands |
| Component 3: | Hydraulic station | 7.5kw motor |
| Component 4: | Control panel | Siemens PLC |
| Component 5: | Hydraulic station | 7.5kw |
| Component 6: | Out table | Manual type 2*2m |
| Voltage: | 380V 50Hz 3Ph | |

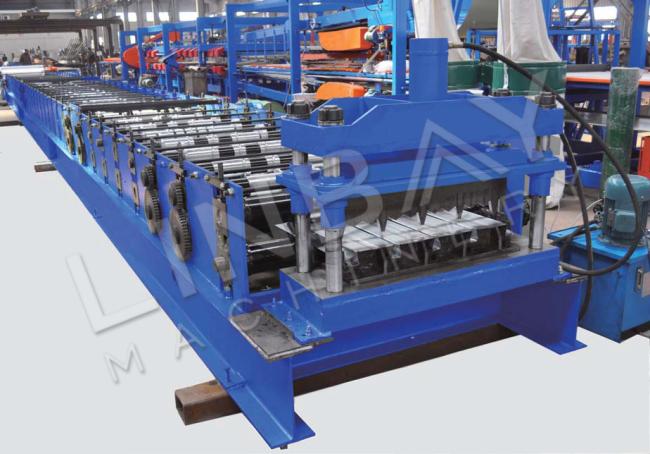

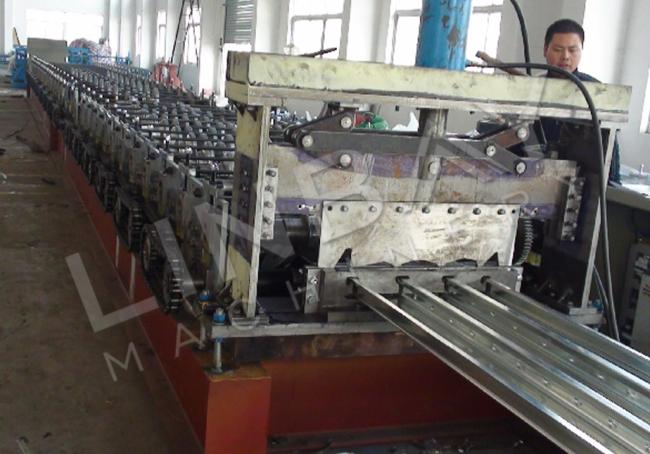

Pictures of Closed End Floor Deck Roll Forming Machine 1000mm Galvzanized Steel:
