Mexican Galvateja Roofing Roll Forming Machine 440V
Mexican Galvateja Metal Roofing Tile Sheets Color Coated Roll Forming Machine
Colour steel glazed tiles(Metal steel glazed tile roll forming machine/Metal steel glazed tile bending machine) are made by pressing horizontal coloured steel sheets through colour steel forming equipment. There are many different types of colour steel sheets, but in broad terms, they can be divided into roofing sheets and wall panels. Colour steel glazed tiles are generally used as roofing sheets and are laid on roofs built with steel structures, which ensures the beauty of the building and also extends the life of the building. (metal roof tile roll forming machine/metal roof tile bending machine)
The biggest advantage of a house built with steel is that it saves resources. The load-bearing walls are all made of profiled steel (e.g. C-beams, Z-beams, etc.) and the walls are covered with composite panels. The roofs are made from colour steel glazed tiles. (Metal roofing Tile roll forming machine/Metal roofing Tile bending Machine)
The production equipment for the colour steel glazed tiles is all made of cast iron and steel. The base is made of H-beams, on which two support frames are erected, divided into many rows. A certain distance is left in the middle of each row to put the shafts for pressing the shapes. The designer designs the shafts accordingly to the shape of the plates. Each shaft is driven by a chain from shaft to shaft and, beyond the first one, by a speed reducer. And the reducer is controlled fully automatically with a PLC system. It is possible to control the length of the colour steel glazed tile sheets as required to get the ideal sheet. (Metal roofing roll forming machine/metal roofing bending machine)
Flow chart of Mexican Galvateja Metal Roofing Tile Sheets Color Coated Roll Forming Machine:
Hydraulic decoiler--Guiding--Roll forming machine--Hydraulic cut--Out table

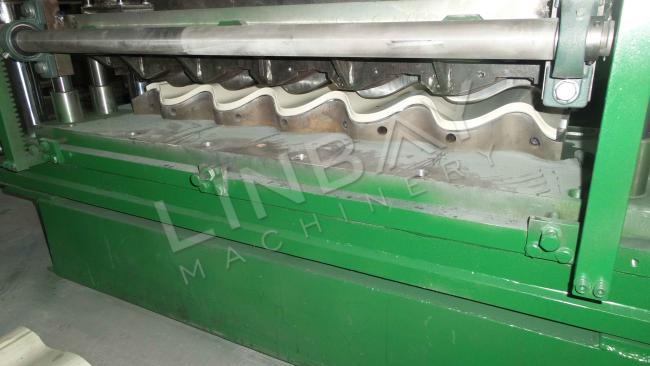

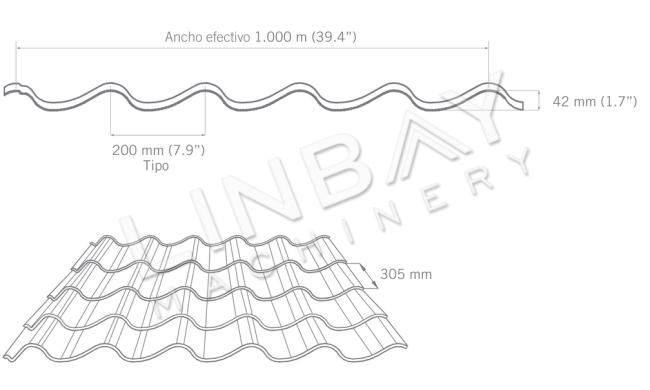

Galvateja is a kind of roof tile very typical of Mexico, Galvateja can have 3D cut, that is, the cut is following the wave, cut with a mold, this kind is more expensive. There is also the ordinary up and down shear. At present, these two roof tile style equipment are very popular.
| Metal Roofing Tile Sheets Color Coated Roll Forming Machine Galvanized Steel | ||
| Component 1: | Hydraulic decoiler 5-7.5Tons | 5.5kw+3kw |
| Component 2: | Roll forming |
Guiding 7.5kw forming motor Roll forming 16 stands Shafts φ75mm Rollers 45 steel chromed |
| Component 3: | Hydraulic stamping and cut |
Each 300mm make stamping 6 columns structure Cut any length |
| Component 4: | Manual table | 2 meters*2 |
| Component 5: | Hydraulic station | 7.5kw |
| Component 6: | Control panel | Siemens PLC |

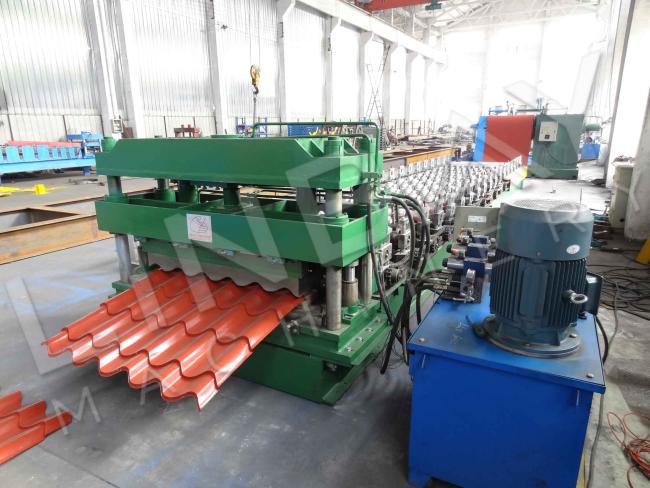

Pictures of Metal Roofing Tile Sheets Color Coated Roll Forming Machine Galvanized Steel:
