Galvanized steel Metal Door Roll Forming Machine 5T

Continuously Produced High Speed Flying Saw Cut Metal Door And Window Roll Forming Machine

In the automatic door frame forming machine, (door frame roll forming machine/ window frame roll forming machine) the steel plate is mostly driven inside the shaping equipment, and at the same time, the steel plate or strip is bent and shaped in a progressive manner through the cooperation of the bottom forming rollers and the top forming rollers, which has a slow forming and blanking efficiency. (door jamb roll forming machine/window jamb roll forming machine)A pair of door frames usually consists of two side beams, a top beam and a bottom beam, which must be punched in four times by four sets of punching tools according to the conventional operation method, which seriously affects the production efficiency. The use of paint-free steel plates will avoid the subsequent painting process, but it must be used in the bending forming protective measures to prevent damage to the surface of the paint-free steel plate during the bending process. (metal door roll forming machine/metal window roll forming machine)

In view of the drawbacks of the existing technology, how to improve the existing technology, through the new punching equipment to achieve the use of paint-free steel bending, punching operations and can significantly improve the production efficiency is the existing industry production technicians to solve the technical problems. (door panel roll forming machine/(door panel bending machine)

Flow Chart of Continuously Produced High Speed Flying Saw Cut Metal Door And Window Roll Forming Machine

5T hydraulic decoiler-Roll forming machine-Hydraulic cut-Outer table

Main Technical Parameters

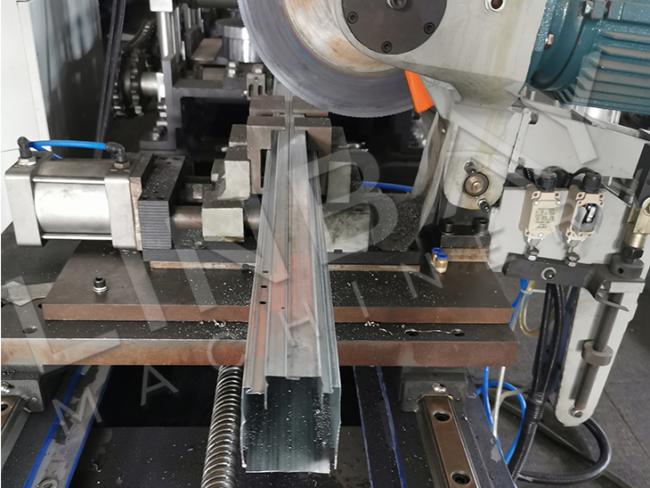

Pictures of Continuously Produced High Speed Flying Saw Cut Metal Door And Window Roll Forming Machine
