11kw Metal Door Roll Forming Machine 380V Automatic

Door Panel Roll Forming Machine Stamping Door Frame Roll Forming Machine

The door frame forming machine(door frame roll forming machine/ window frame roll forming machine) includes a frame, a wheel set, a convex mould, an axle head and an oil cylinder. (door jamb roll forming machine/window jamb roll forming machine) The wheel set, the convex mould, the axle head and the oil cylinder are set on the frame and the convex mould is connected to the oil cylinder through the axle head; the oil cylinder is equipped with a displacement sensor and the stroke of the oil cylinder is adjustable. (metal door roll forming machine/metal window roll forming machine)The size of the spacing between the force points can be changed by replacing the steel wheels of different diameters in the wheel set, and the convex mould can be replaced according to the size of the door frame; if the cylinder stroke is not sufficient, it can be supplemented by adding extensions. The machine is suitable for forming door frames of various sizes of steel plates, with low investment, low operating costs, simple operation, accurate forming dimensions and strong implementability. (door panel roll forming machine/(door panel bending machine)

Flow Chart of Door Panel Roll Forming Machine Stamping Door Frame Roll Forming Machine

5T hydraulic decoiler-Servo feeder with press--Roll forming machine-Hydraulic cut-Outer table

Main Technical Parameters

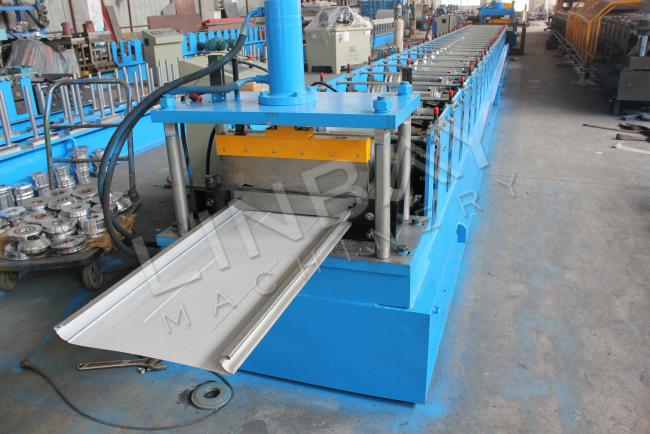

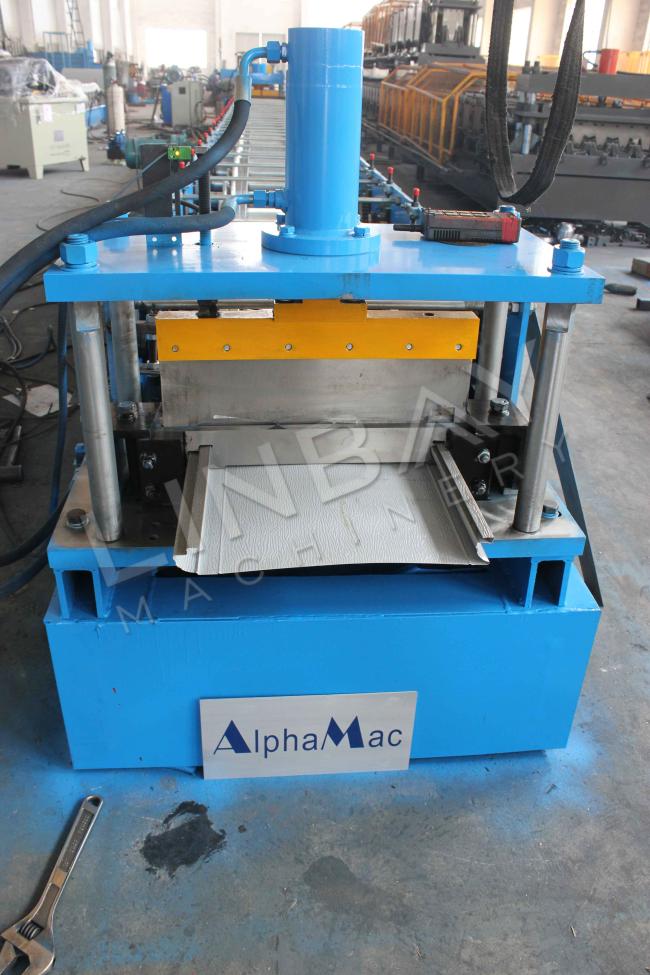

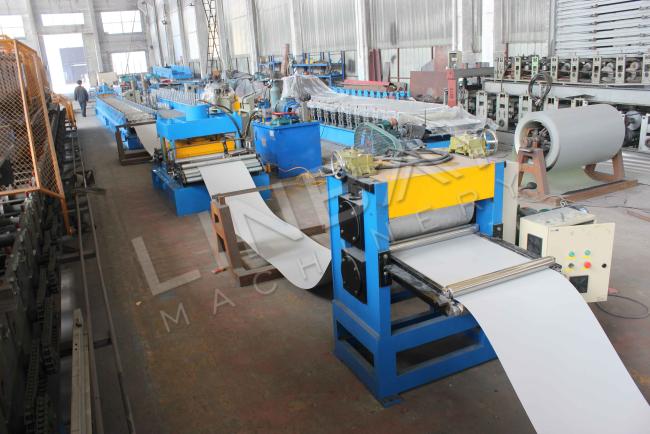

Pictures of Door Panel Roll Forming Machine Stamping Door Frame Roll Forming Machine
