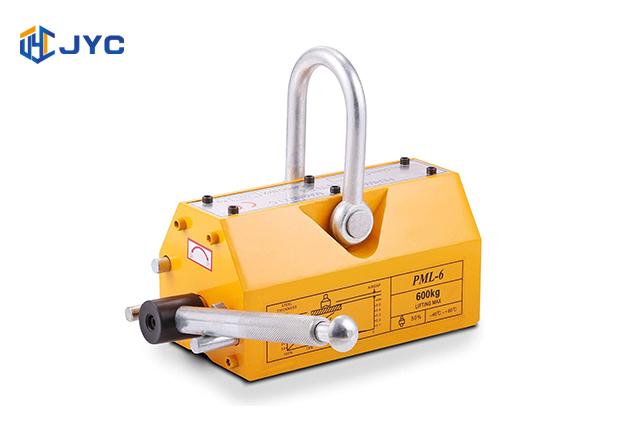

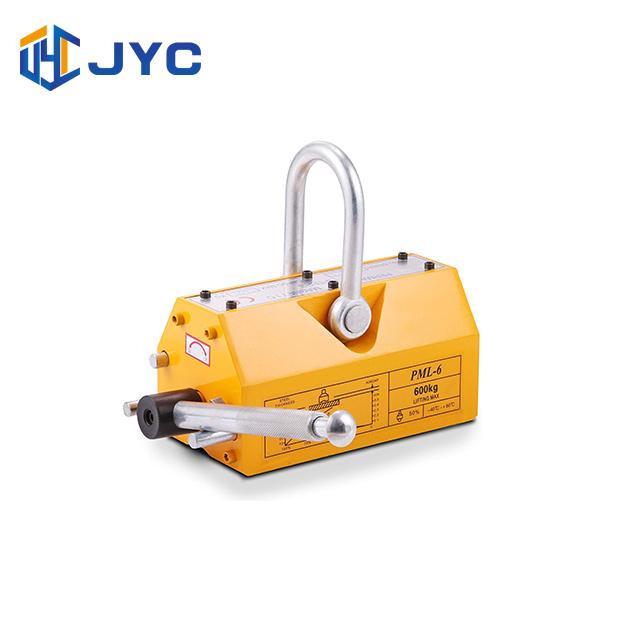

Small Volume PML 600kg Magnetic Lifting Device
PML Magnetic Lifter
·High performance magnetic material is used to make it smaller in volume, lighter in weight and stronger in holding.
·Using unique magnetic circuit design, the magnetism remanence is almost zero.
·Coefficient of safety is higher, maximum pulling force is 3.5 times of the rated lifting force.
·Handle switch is equipped with a safety button, which can be operated by one hand with convenient and safe.
·Bottom surface of the permanent magnet crane has a "V" groove, which can lift both corresponding round steel and steel plate.
·No electricity is needed, it has permanent magnetic force, and safety in use.
·Widely used in steel lifting and handling, flat mechanical parts, installation and handling of various abrasives.

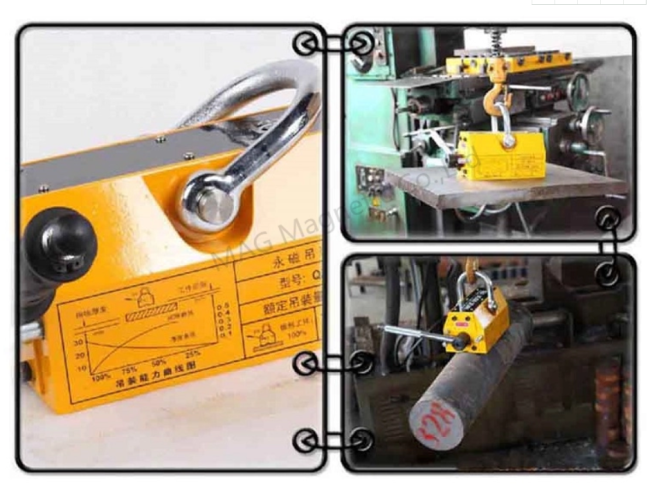

Application
Specification sheet
 |
 |

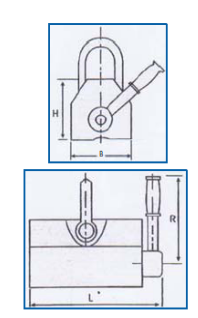

| Model | Rated lifting capacity (Kgf) | Cylindrical lifting force (Kgf) | Dimension (mm) | Max pull-off force (Kgf) | Net Weight(kg) | |||
| A(length) | B(width) | C(height) | D(Handle length) | |||||
| PML-100 | 100 | 30 | 92 | 65 | 69 | 155 | 350 | 2.5 |
| PML-200 | 300 | 100 | 130 | 88 | 69 | 155 | 900 | 5.5 |
| PML-400 | 400 | 120 | 165 | 95 | 95 | 200 | 1200 | 10 |
| PML-600 | 600 | 200 | 210 | 115 | 116 | 230 | 1800 | 19 |
| PML-1000 | 1000 | 300 | 260 | 135 | 140 | 255 | 3000 | 35 |
| PML-1500 | 1500 | 500 | 340 | 135 | 140 | 255 | 4500 | 45 |
| PML-2000 | 2000 | 600 | 356 | 160 | 166 | 320 | 6000 | 65 |
| PML-3000 | 3000 | 1000 | 444 | 160 | 166 | 380 | 9000 | 85 |
| PML-4000 | 4000 | 1300 | 520 | 175 | 175 | 550 | 12000 | 150 |
| PML-5000 | 5000 | 1500 | 620 | 220 | 220 | 600 | 15000 | 210 |
| PML-6000 | 6000 | 2000 | 650 | 270 | 265 | 700 | 18000 | 300 |
| PML-10000 | 10000 | 3000 | 800 | 235 | 290 | 800 | 30000 | 395 |
| Note: Other specifications can be customized ,please call for further information. | ||||||||
Company Profile
 |
 |
 |
 |
Magnet is widely used in industries like metallurgy, machinery, shipbuilding, electric power, mine, automobile manufacturing, rail transportation and so on.
There is mainly 3 kinds of magnet, permanent magnet, electromagnet, permanent electromagnet. different magnet is suitable for different areas, and as a professional supplier of magnetic tools, JYC technology is is always providing customers appropriate solutions for our customers.
Packing&Delivery
 |
 |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Each chuck will be well protected by wooden boxs.
