JAC J5P 6x4 20-30 ton construction work heavy duty dumper truck
Price:
USD38,500.00-USD40,000.00 per unit
MOQ:
1unit
Delivery Time:
30-45 days
Brand:
JAC
Product Description

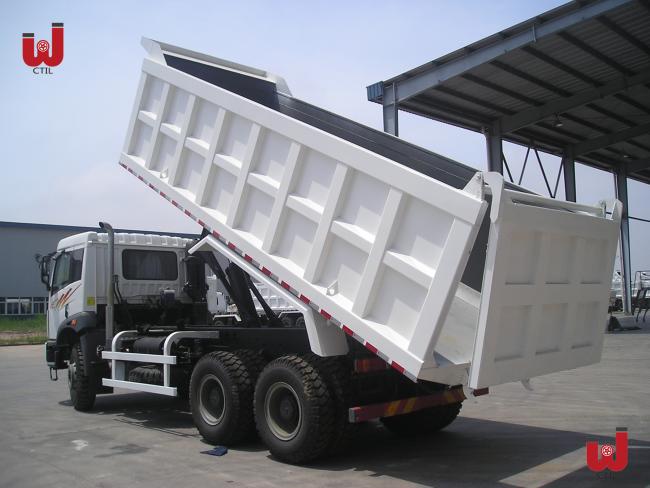

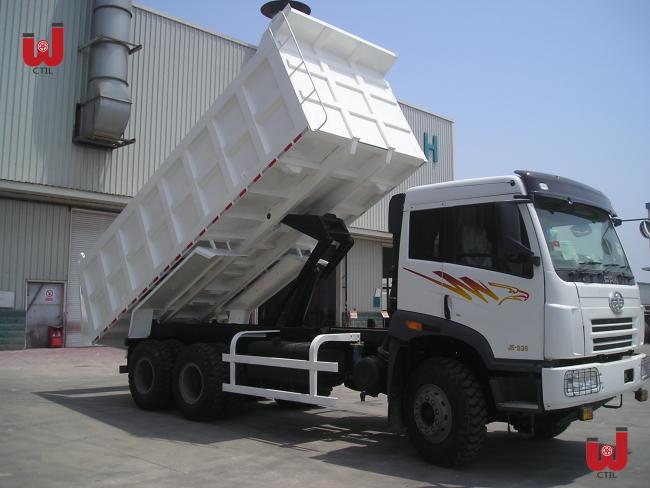

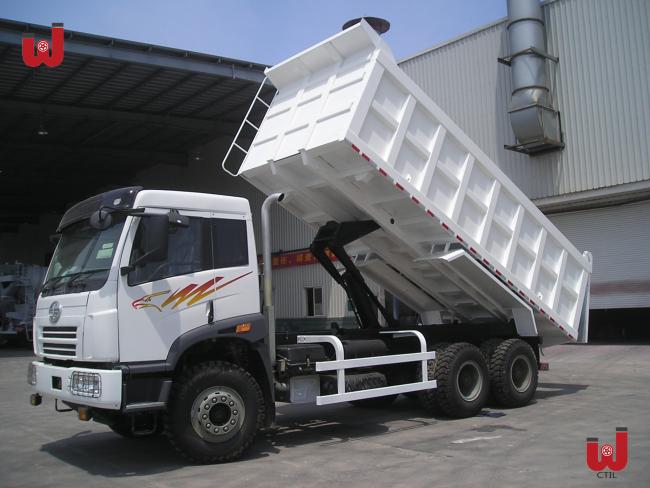

JAC J5P 6x4 20-30 ton construction work heavy duty dumper truck
1,high-duty steel:main beam,side beam and key parts use domestic advanced technology standardlow-alloy and high-strengthsteel.
2,low consumption:light weight cut down fuel use and save transportation cost.
3,high return:reduce self-weight,increace customer's transportation profit.
| Products Technical Specification | |
| Type | JAC 6*4 Dump Truck |
| Cab | Half row,single sleeper,with A/C |
| Vehicle Description | |
| Overall dimensions(mm) | 7835*2495*3500 |
| G.V.W (kg) | 25000 |
| Curb weight(vehicle) (kg) | 11800 |
| Loading capacity (kg) | 20000-30000 |
| Max speed (Km/h) | 80 |
| Engine | |
| Engine modle | WP10.300E40 |
| Maximum power | 221kw (300hp) |
| Displacement (lit) | 9.726 |
| Engine Manufacturer | Weichai power Co., Ltd. |
| Chassis Description | |
| Chassis model | HFC3241 |
| Wheel base | 3490+1350 |
| F/R track base(mm) | 2057/1880 |
| F/R overhang(mm) | 1495/1500 |
| Approach/Departure angle(°) | 27/26 |
| Spring plate | 10/12 |
| Front axle / rear axle | Steyr |
| Type of fuel | Diesel |
| Fuel of capacity | 350 L |
| Gear box | FAST , 10-speed with over drive |
| Electric system | 24V |
| Tyres | 11.00R20 |
| Dumper body Description | |
| Van dimensions(mm) | 5200*2300*1500 /1800 |
| Van description | Equipped with material of carbon steel, side 6mm thickness; bottom 8mm thickness with middle / front lifting system |
| Optional Equipment | Tires,Dumper body thickness,middle hydraulic ram, side door,etc |
