DC12V2A 1/3 Inch Exmor CMOS VISCA TEVO NV20U Video Conference PTZ Camera

Price Negotiable
Price: Negotiable
MOQ: 1 piece
Delivery Time: 1-10 working days
Brand: Tongveo
Product Description

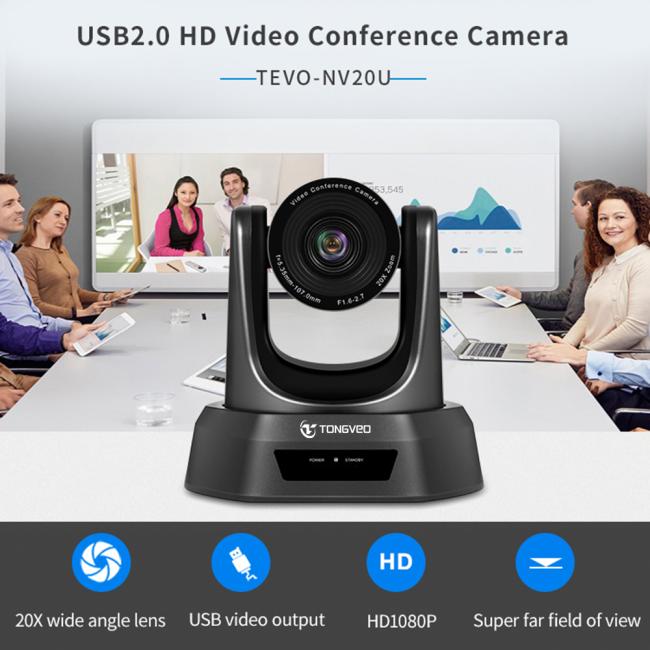

TEVO-NV20U 20X Zoom USB Video Conference ptz Camera HD 1080P image quality



Features for 20X optical zoom USB camera:

* 20x optical zoom,Sleek and intelligent design, Plug & Play USB2.0 Connectivity
* Crystal clear HD1080P image quality,Wide field of view with no video distortion
* Preset: 9 via IR remote setting (255 via PELCO-P/D/64 via VISCA)
* 1/2.9 inch high quality, 2.1MP (16:9) CMOS sensor
* Superior quality with Full Glass Lens Material
* Support ceiling mount, wall mount and tripod mount (Reverse mountable)
* 2D and 3D NR for best video quality in different lighting conditions
* Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
* Compatible with most leading video conferencing software and platform
* Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very smooth



Parameters for NV20U USB ptz camera:



Items
Parameters
Model
TEVO-NV20U
Sensor
1/3 inch Exmor CMOS
Effective pixel
2.1 mega pixel
Video output pixel
1080P30/25, 720P30/25
Zoom
20x optical zoom
Lens
F=5.35mm~107 mm F1.6(W)~2.1(T)
Horizontal angle
55.5°
Video output
USB2.0
Video resolution
1080P (1920 *1080)
Siginal standard
NTSC/PAL
Preset position
64
Control temernal
RS-232,RS485,RS-422
Control protocol
VISCA, PELCO-D, PELCO-P(RS-232, RS485)
Power supply
DC 12V/2A
Power comsumption
12W
Work temperature
0°~+50°
Work humidity
0~95% RH
Product size
182*182*182mm/262*233*220mm(before / after packing)
Product weight
1.5kg/2.85kg(net / gross weight)
Accessories
DC 12V power adaptor, IR remote controller, manual, USB cable, ceiling brackets and screws
