* 20x optical zoom,Sleek and intelligent design, Plug & Play USB2.0 Connectivity
* Crystal clear HD1080P image quality,Wide field of view with no video distortion
* Preset: 9 via IR remote setting (255 via PELCO-P/D/64 via VISCA)
* 1/2.9 inch high quality, 2.1MP (16:9) CMOS sensor
* Superior quality with Full Glass Lens Material
* Support ceiling mount, wall mount and tripod mount (Reverse mountable)
* 2D and 3D NR for best video quality in different lighting conditions
* Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
* Compatible with most leading video conferencing software and platform
* Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very smooth



Items	Parameters

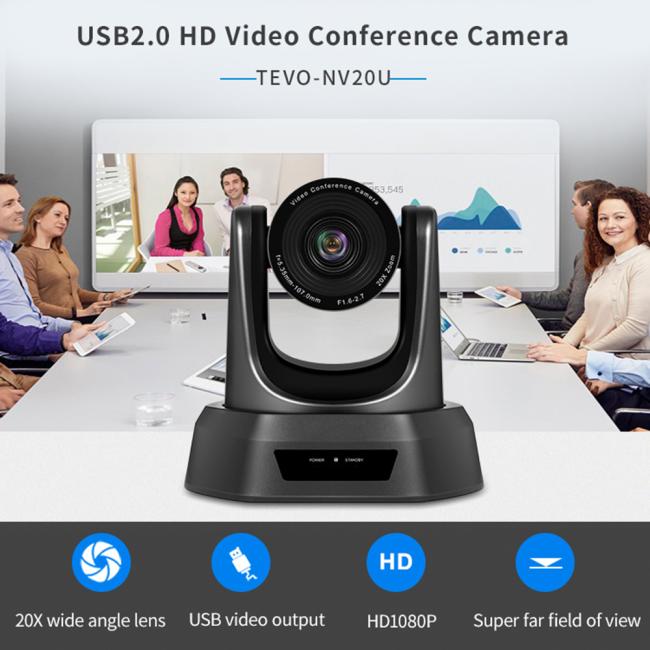

Model	TEVO-NV20U USB PTZ conference camera
Sensor	1/3 inch Exmor CMOS
Effective pixel	2.1 mega pixel
Video output pixel	1080P30/25, 720P30/25

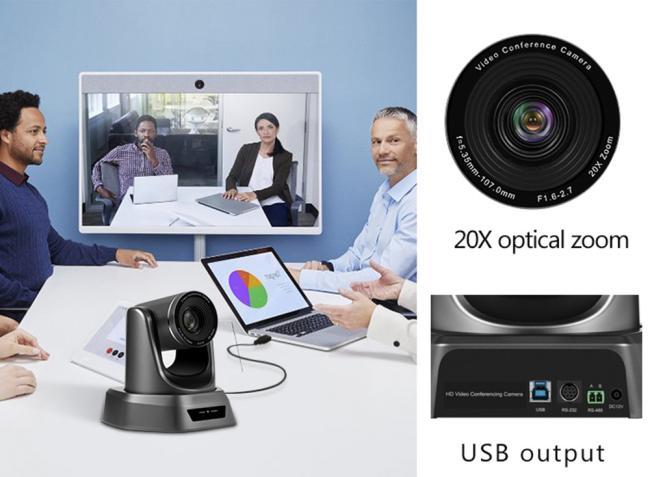

Zoom	20x optical zoom
Lens	F=5.35mm~107 mm F1.6(W)~2.1(T)
Horizontal angle	55.5°
Video output	USB2.0
Video resolution	1080P (1920 *1080)
Siginal standard	NTSC/PAL
Preset position	64
Control temernal	RS-232,RS485,RS-422
Control protocol	VISCA, PELCO-D, PELCO-P(RS-232, RS485)
Power supply	DC 12V/2A
Power comsumption	12W
Work temperature	0°~+50°
Work humidity	0~95% RH
Product size	182*182*182mm/262*233*220mm(before / after packing)
Product weight	1.5kg/2.85kg(net / gross weight)
Accessories	DC 12V power adaptor, IR remote controller, manual, USB cable, ceiling brackets and screws
