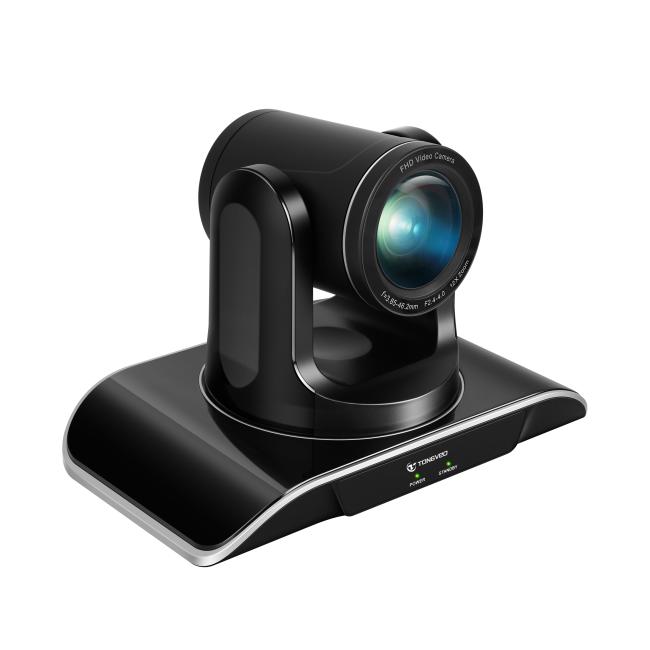

TEVO VHD12N SDI IP Conference Camera 12x Optical Zoom 2.38MP
Dropshipping SDI camera 12x optical zoom IP conference camera HDMI camera
* 12x optical zoom
* Sleek and intelligent design
* Crystal clear HD1080P image quality
* Accurate, smooth and silent PTZ Movement
* 3G-SDI, HDMI USB Video Output
* Preset: 10 via IR remote setting (256 via RS232)
* Wide FOV 80° with no video distortion
* 1/3 inch high quality, 2.38MP (16:9) CMOS sensor
* Superior quality with Full Glass Lens Material
* Support ceiling mount, wall mount and tripod mount (Reverse mountable)
* 2D and 3D NR for best video quality in different lighting conditions
* Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
* Compatible with most leading video conferencing software and platform
Specification:
| Model No. | VHD12N |
| Image Sensor | 1/3 inch Exmor CMOS |
| Effective pixel | 2.38 mega pixel(16:9) |
| Horizontal Resolution | 1080P30/25fps, 720P60/50 |
| Focal length | F=5.0mm(wide)-50.0(tele) |
| Signal standard | NTSC/PAL |
| Zoom | 12x optical zoom |
| Horizontal view angle | Near-end 80°~Far-end 4.64° |
| Gain control | Auto/manual |
| Focus | Auto/manual |
| SN ratio | ≥50dB |
| Shutter speed | 1/1 sec to 1/10000s (22 steps) |
| Preset position |
Remote-controller support 9 presets PELCO Control Protocol supports 256 presets |
| Pan/Tilt movement range | Pan: 340°(max speed 80°/S), Tilt: 120°(max speed 60°/S) |
| Control terminal | RS-232, RS485 |
| Control Protocol | VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
| Video output | 3G-SDI, HDMI |
| Noise Reduction | 2D/3D |
| Baud rate | 2400/4800/9600/19200bps |
| Decoder | Built-in |
| Address Se | 1~256 |
