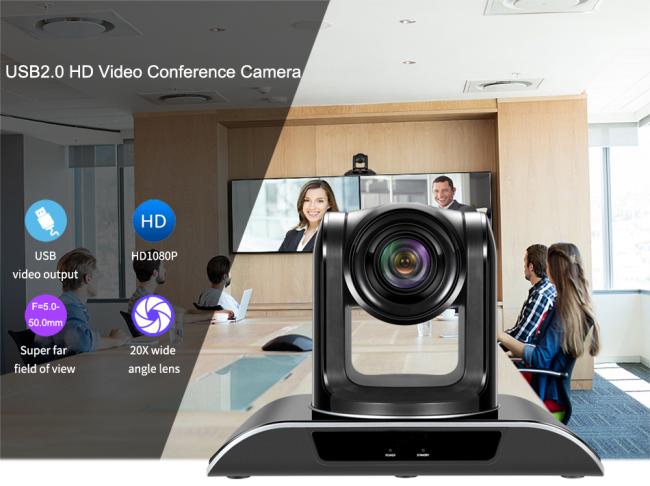

VHD202U 1080P USB 2.0 PTZ Camera 20x Zoom Rotatable Screen Cam Laptop Webcam
TONGVEO VHD202U USB2.0 1080P PTZ Camera 20x Zoom Camera Rotatable Screen Cam Laptop Webcam With H.264 for YouTube Skype Facebook
PRESET+Number: To set preset position of this number
RESET+Number: To clear preset position of this number.
-
20x optical zoom
-
Sleek and intelligent design
-
Plug & Play USB Connectivity
-
Crystal clear HD1080P image quality
-
Preset: 9 via IR remote setting (255 via RS232)
-
Wide field of view with no video distortion
-
1/3 inch high quality, 2.1MP (16:9) CMOS sensor
-
Superior quality with Full Glass Lens Material
-

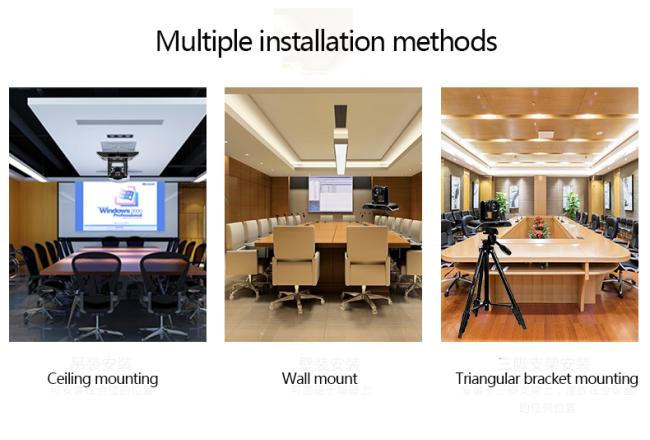

Support ceiling mount, wall mount and tripod mount (Reverse mountable)
-
2D and 3D NR for best video quality in different lighting conditions
-
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
-
Compatible with most leading video conferencing software and platform
-
Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very smooth
| Product No. | TEVO-VHD202U |
| Image Sensor | 1/3 inch Exmor CMOS |
| Effective pixel | 2.1 mega pixel(16:9) |
| Horizontal Resolution | 1080p30/25 720p30/25 |
| Signal standard | NTSC/PAL |
| Zoom | 20x optical zoom |
| Focal length | F=4.7mm(wide)-94.0(tele) |
| Horizontal Angle | Near-end 55.5deg～Far-end 3.0deg |
| Gain control | Auto/manual |
| Focus | Auto/manual |
| SNR ratio | ge50dB |
| Wide dynamic | D-WDR |
| Shutter speed | 8to1/ 10000s(auto) |
| Preset position | IR remote control supports 9 presets PELCO Protocol supports 255 presets |

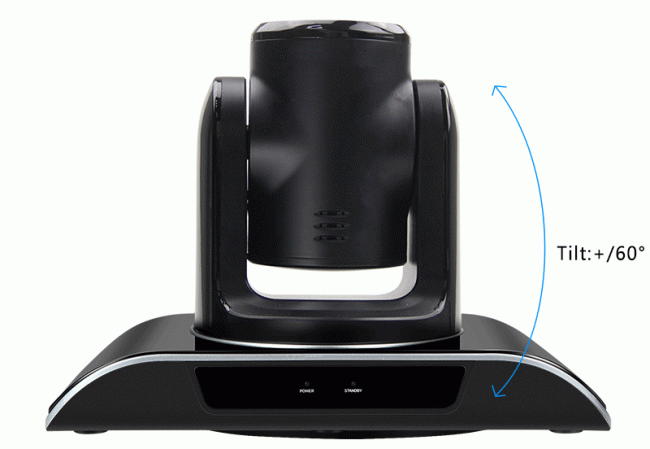

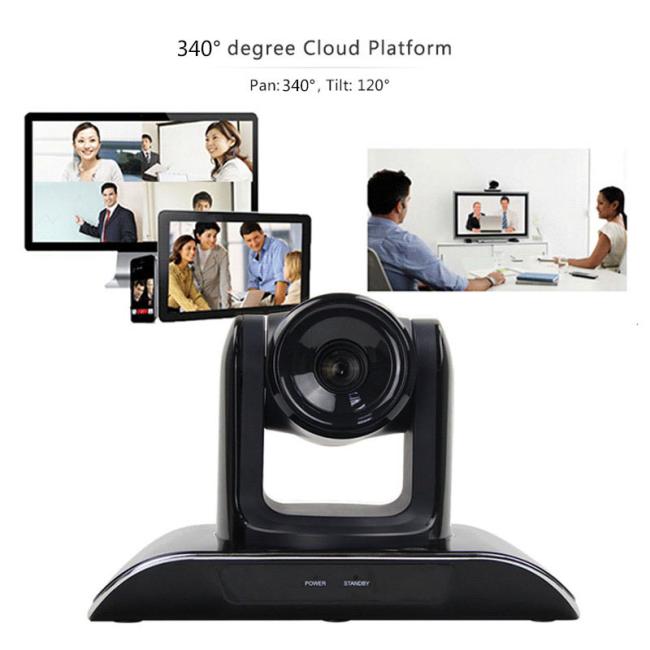

| Pan/Tilt movement range | Pan: 340deg(max speed 80deg/S) Tilt: 120deg(max speed 60deg/S) |

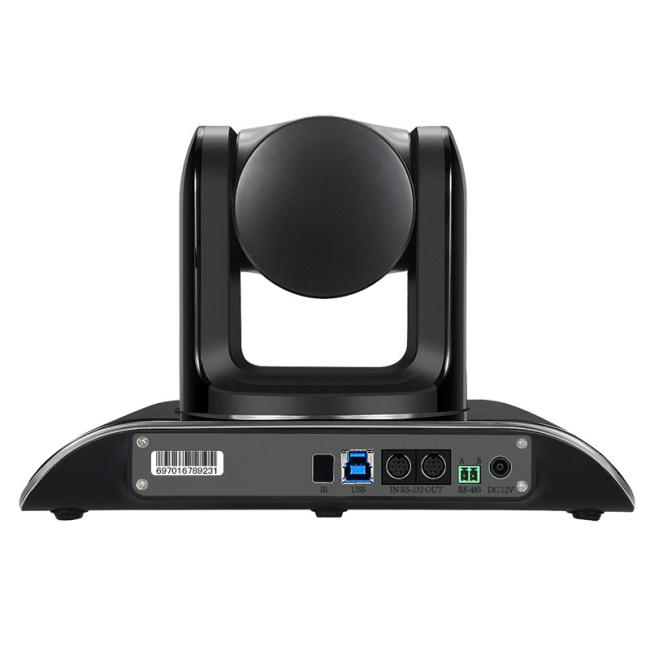

| Control terminal | RS-232 RS485 |
| Control Protocol | VISCA PELCO-D PELCO-P(RS-232 RS485) |
| Video output | USB |
| Noise Reduction | 2D/3D |
| Work temperature | -10degC-~50degC |
| Storage temperature | -20degC~60degC |
| Baud rate | 2400/4800/9600/19200bps |
| Decoder | Built-in |
| Address set | 1~255 |
| Installation | Support desktop Tripod Wall mount and Ceiling mount |
| Power supply | DC12 V/ 2A |
| Power consumption | 12 W |
| Net weight/Gross weight | 1.7kg/3.5kg |
| Dimension(LXWXH) | 260*175*180 mm /296*255*218mm (before / after packing) |
| Accessories | DC 12V Power adaptor, IR remote control, Manual, USB cable, Ceiling brackets & screws. |
