TONGVEO NV1080 FHD H.264 1080P USB 2.0 PTZ Camera For Medical Business
TONGVEO NV1080 FHD H.264 Video Conference Camera 1080P USB2.0 for Medical Business with 138 Degree Fixed Focus Wide Angle
PRESET+Number: To set preset position of this number.
RESET+Number: To clear preset position of this number.
-
Fixed focus Pan Tilt Camera
-
Sleek and intelligent design
-
Plug & Play USB Connectivity
-
Crystal clear HD1080P image quality
-
Accurate, smooth and silent PTZ Movement
-
Preset: 9 via IR remote setting (255 via RS232)
-
Superior quality with Full Glass Lens Material
-
138° wide field of view with no video distortion
-
1/2.7 inch high quality, 8 MEGA PIXEL (16:9) CMOS sensor
-

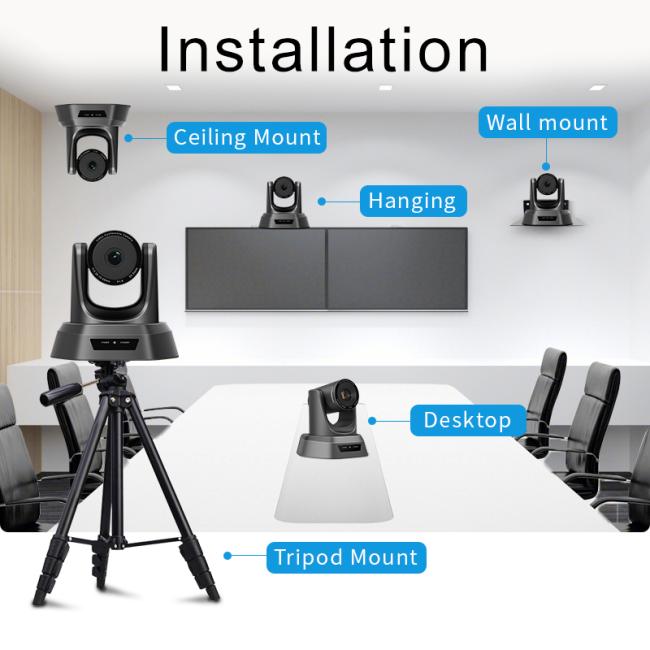

Support ceiling mount, wall mount and tripod mount (Reverse mountable)
-
2D and 3D NR for best video quality in different lighting conditions
-
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
-

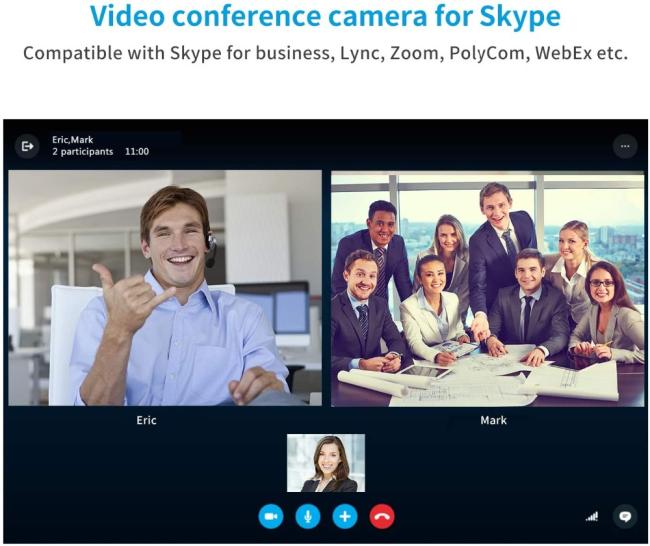

Compatible with most leading video conferencing software and platform
| Product No. | TEVO-NV1080 |
| Image Sensor | 1/2.7 inch HD COLOR CMOS |
| Effective pixel | 8.0 mega pixel |
| Horizontal Resolution | 1080P30/25 720P30/25 VGA(640x480) CIF(352x288) |
| Signal standard | NTSC/PAL |

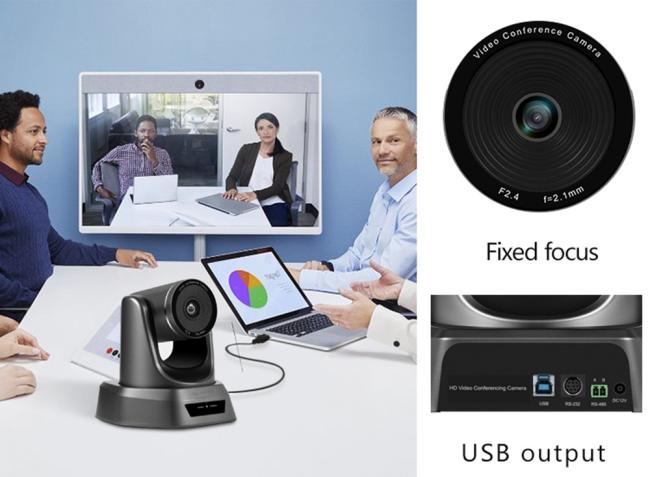

| Zoom | Fixed focus |
| Focal length | F=2.1mm |
| Horizontal Angle | 138° |
| Gain control/Focus | Auto/manual |
| SNR ratio | ≥50dB |
| Wide dynamic | On/Off |
| Shutter speed | 8 to 1/10000s (auto) |
| Preset position | IR remote control supports 9 presets PELCO Protocol supports 255 presets |

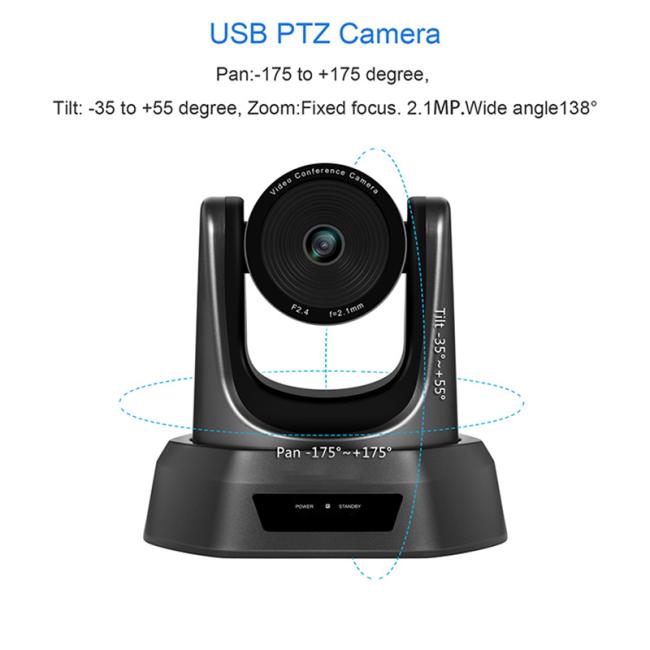

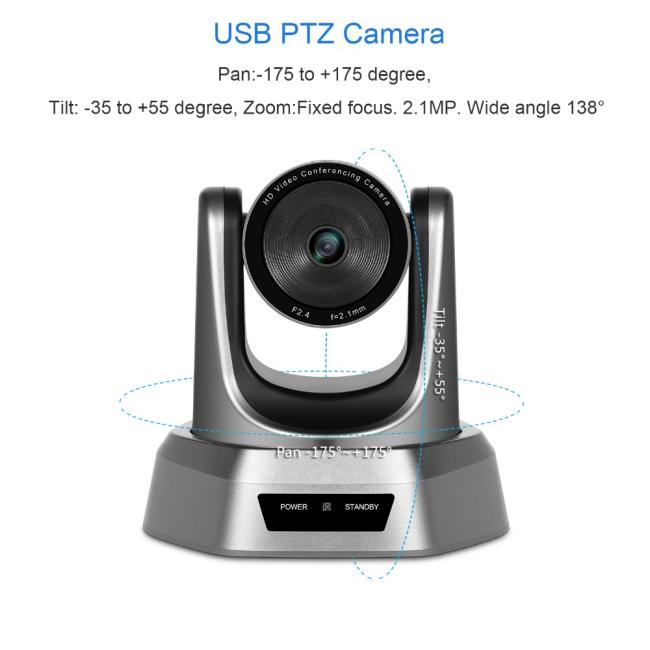

| Pan/Tilt movement range | Pan: ±175°(max speed 80°/S), Tilt: -35°~﹢55°(max speed 60°/S) |

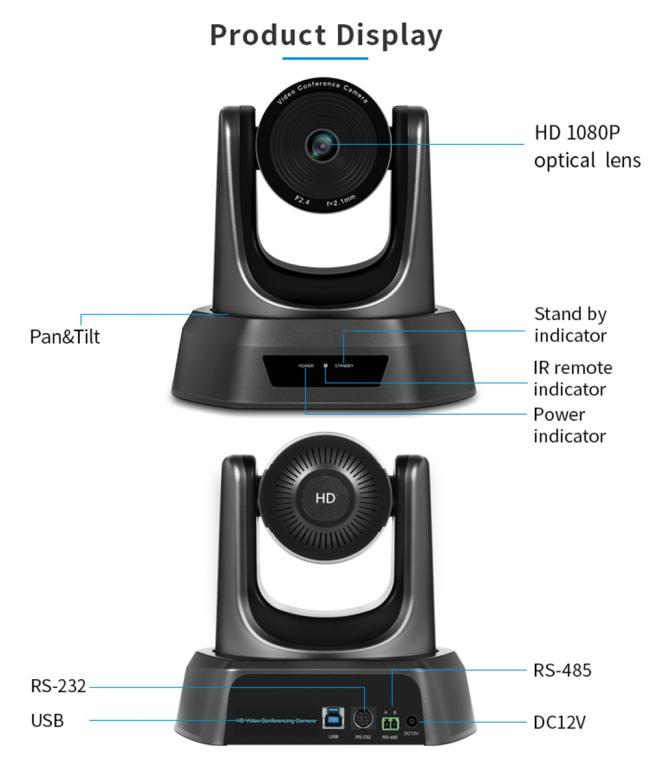

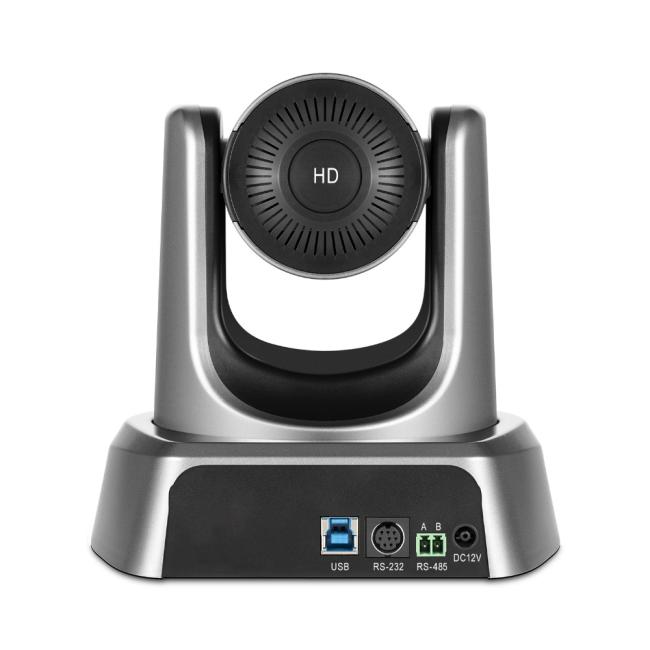

| Control terminal | RS-232 RS485 |
| Control Protocol | VISCA PELCO-D PELCO-P(RS-232 RS485) |
| Video output | USB |
| Video Compression Format | YUV, MJPEG, H.264 |
| Noise Reduction | 2D/3D |
| Work temperature | -10°C-~50°C |
| Storage temperature | -20°C~60°C |
| Baud rate | 38400/9600bps |
| Decoder | Built-in |
| Address set | 1~255 |
| Installation | Support desktop Tripod Wall mount and Ceiling mount |
| Power supply | DC12 V/ 2A |
| Power consumption | 12 W |
| Net weight/Gross weight | 1.5kg/2.85kg |
| Dimension(LXWXH) | 260*175*180 mm /296*255*218mm (before / after packing) |
| Accessories | DC 12V Power adaptor, IR remote control, Manual, USB cable, Ceiling brackets & screws. |
