VHD102U 10x Zoom 1080p PTZ Video Conference Camera 360 Degree Video Camera

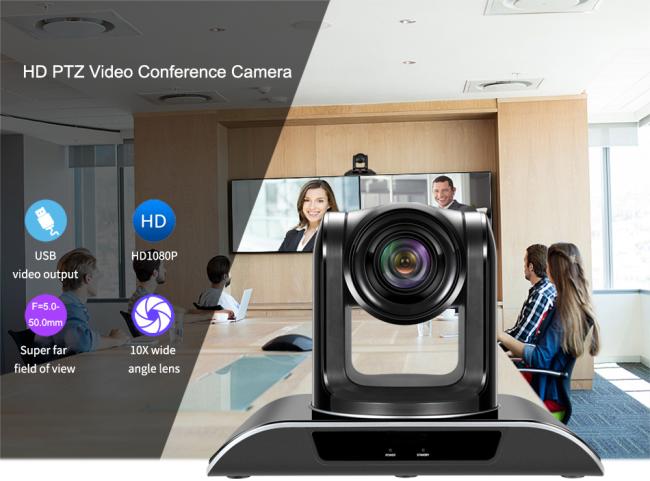

TONGVEO VHD102U 10x Zoom 1080p 360 Degree Video Camera PTZ Video Conference Camera USB2.0 H.264 for TeleEducation TeleMedicine

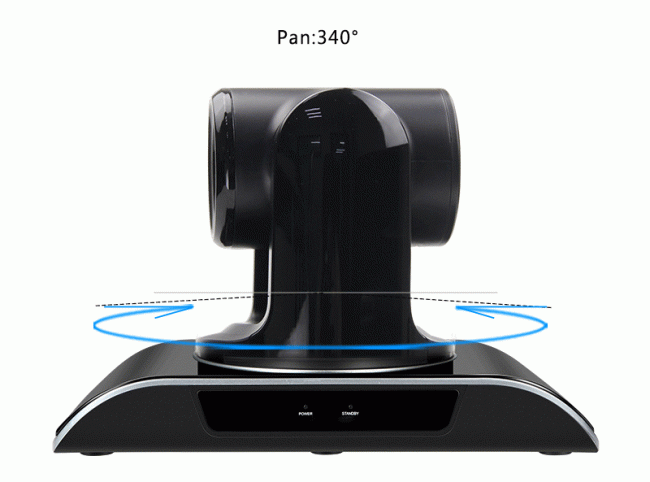

- Pan: 0-340deg Tilt :0deg~120deg
- RS-232, RS-485, IR remote control
PRESET+Number: To set preset position of this number.
RESET+Number: To clear preset position of this number.
-
10x optical zoom
-
Sleek and intelligent design
-
Plug & Play USB Connectivity
-
Crystal clear HD1080P image quality
-
Preset: 9 via IR remote setting (255 via RS232)
-
Wide field of view with no video distortion
-
1/2.9 inch high quality, 2.1MP (16:9) CMOS sensor
-
Superior quality with Full Glass Lens Material
-

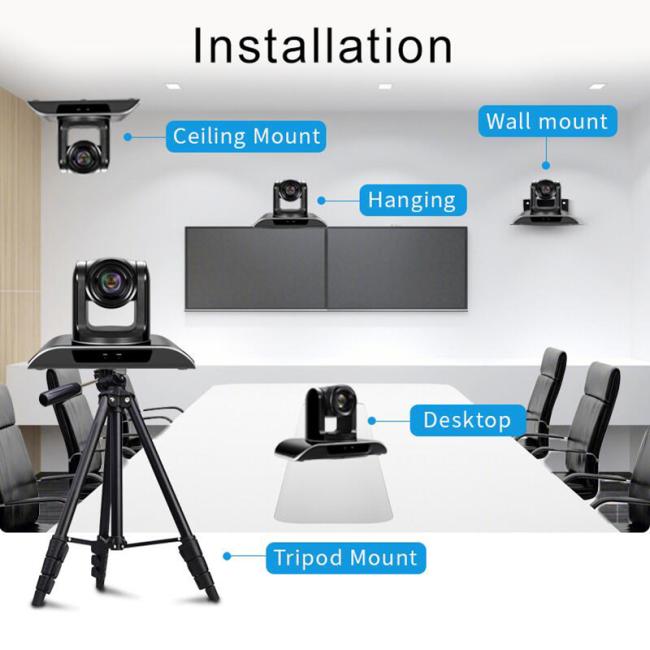

Support ceiling mount, wall mount and tripod mount (Reverse mountable)
-
2D and 3D NR for best video quality in different lighting conditions
-
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
-

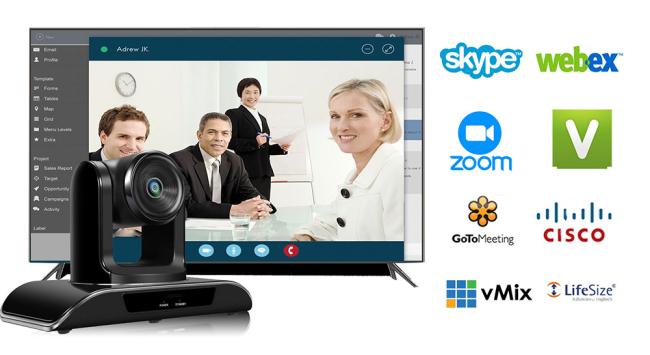

Compatible with most leading video conferencing software and platform
-
Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very smooth
| Product No. | TEVO-VHD102U |
| Image Sensor | 1/2.8" HD CMOS |
| Effective pixel | 2.1 mega pixel(16:9) |
| Horizontal Resolution | 1920x1080p 25/30fps / 1280x720p 25/30/50/60fps |
| Signal standard | NTSC/PAL |
| Zoom | 10x optical zoom |
| Lens | F=5.0-50.0mm |
| Horizontal Angle | Near-end 47deg～Far-end 5.3deg |
| Gain control | Auto/manual |
| Focus | Auto/manual |
| SN ratio | ge50dB |
| Wide dynamic | D-WDR |
| Shutter speed | 8 to 1/10000s,auto |
| Character generator | Built-in OSD |
| Preset position | IR remote control supports 9 presets, PELCO Protocol supports 255 presets |
| Pan/Tilt movement range | Pan: 340deg(max speed 80deg/S), Tilt: 0deg~120deg((max speed 60deg/S) |
| Vertical rotation | 120deg |
| Pan/Tilt movement speed | 100deg/s,80deg/s |

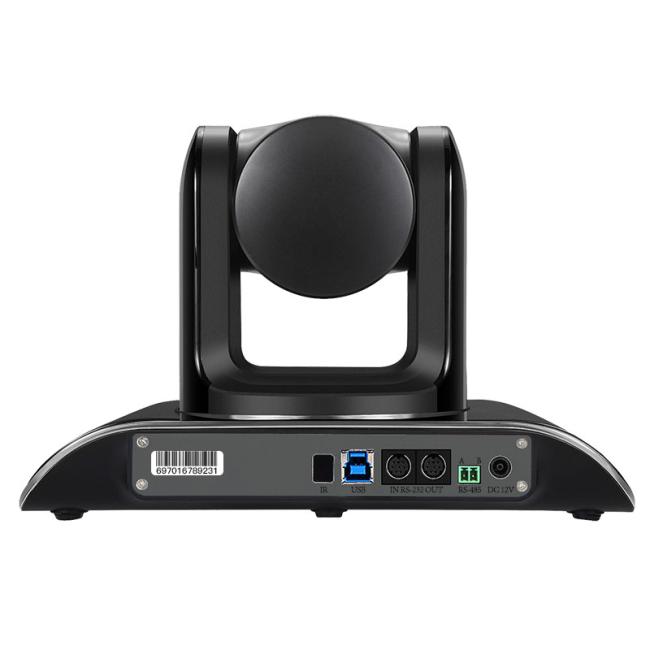

| Control terminal | RS-232,RS485 |
| Control Protocol | VISCA,PELCO-D,PELCO-P(RS-232,RS485) |
| Video output | USB2.0 |
| Work temperature | -10degC-~50degC |
| Storage temperature | -20degC~60degC |
| Baud rate | 2400/4800/9600/19200bps |
| Decoder | Built-in |
| Address set | 1~255 |
| Installation | Support desktop, wall mount and ceiling mounting |
| Power supply | DC12 V/ 2A |
| Power consumption | 12 W |
| Net weight/Gross weight | 1.7kg/3.5kg (net/gross weight) |
| Dimension(LXWXH) | 260*175*180 mm /296*255*238mm (before after packing) |
| Accessories | DC/12V power adaptor, IR remote control, Manual, USB cable, Brackets & screws, Warranty card, Certificate of qualification |
