24V 100ah Lithium Ion Battery
Price:
USD400-USD470/pc
MOQ:
1
Delivery Time:
5-8 working days for sample, 25 working days for bulk order
Brand:
MUST / OEM
Product Description
24V Lithium Ion Battery 25.6V 100AH LiFePO4 Lithium Battery
Detailed parameters
ELECTRICAL PERFORMANCE
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100AH |
| Capacity @ 20A | 300 min |
| Energy | 2560Wh |
| Resistance | ≤50 mΩ @ 50% SOC |
CHARGE PERFORMANCE
| Recommended Charge Current | 20A |
| Maximum Charge Current | 100A |
| Recommended Charge Voltage | 29.2V |
| BMS Charge Cut-Off Voltage | <31.2 V (3.9V/Cell) |
| Reconnect Voltage |
>28.8 V (3.6V/Cell)
|
| Balancing Voltage | <28.8V (3.6V/Cell) |
| Maximum Batteries in Series | 8(*Consult MUST) |
MECHANICAL PERFORMANCE
| Dimension (L x W x H) |
483*170*240mm
19.0 x 6.7 x 9.4”
|
| Approx. Weight | 49.6 lbs (22.5kg) |
| Terminal Type | DIN POST |
| Terminal Torque | 80 ~ 100 in-lbs (9 ~ 11 N-m) |
| Case Material | ABS+PC |
| Enclosure Protection | IP65 |
DISCHARGE PERFORMANCE
| Maximum Continuous Discharge Current | 100 A |
| Peak Discharge Current | 200A (3s) |
| BMS Discharge Cut-Off Current | 300A ±150A (30ms) |
| Recommended Low Voltage Disconnect | 22V (2.75V/Cell) |
| BMS Discharge Cut-Off Voltage | >16.0V (2s) (2.0V/Cell) |
| Reconnect Voltage
|
>20.0 V (2.5V/Cell) |
| Short Circuit Protection |
250 ~ 500 μs
|
TEMPERATURE PERFORMANCE
| Discharge Temperature | -4 ~ 131 ºF (-20 ~ 55 ºC) |
| Charge Temperature | -4 ~ 113 ºF (0 ~ 45 ºC) |
| Storage Temperature | 23 ~ 95 ºF (-5 ~ 35 ºC) |
| BMS High Temperature Cut-Off | 149 ºF (65 ºC) |
| Reconnect Temperature | 131 ºF (55 ºC) |
HEATING FOIL PERFORMANCE
| Heating Temperature Range | -4 to 41 ºF (-20 to 5 ºC) |
| Heating Time | Approximately 1 hour @ 7.5 A |
| BMS Heating Foil Cut-Off | 158 ºF (70 ºC) |

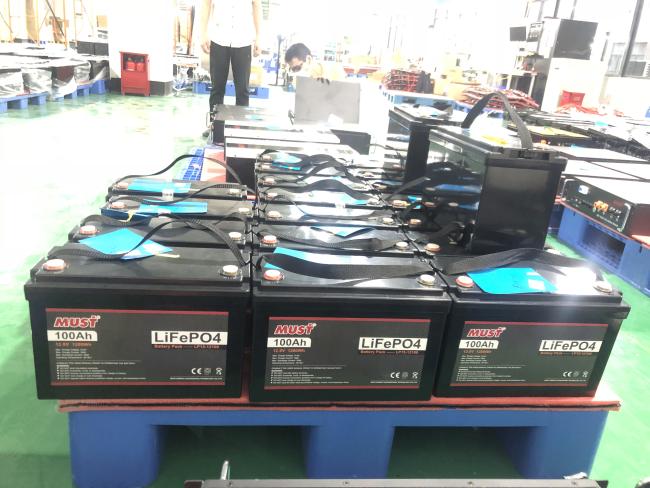

Production Picture
