5KWH Portable Lithium Iron Phosphate Battery Solar Rack Mount 51.2V
Price:
US$780-US$880
MOQ:
1
Delivery Time:
30-45 working days
Brand:
MUST
Product Description
MUST Lithium Battery Solar Storage
Product Description
LP18-48200 (51.2V/200AH)
- The battery is assembled with intelligent sorting, which is accurate and reliable. The BMS uses a professional protection plate test system to conduct a comprehensive test before going online to ensure that the BMS achieves a comprehensive and effective protection for battery pack during the period of use. This product has the characteristics of high energy density, long life, safety and reliability, light weight, and wide temperature range.

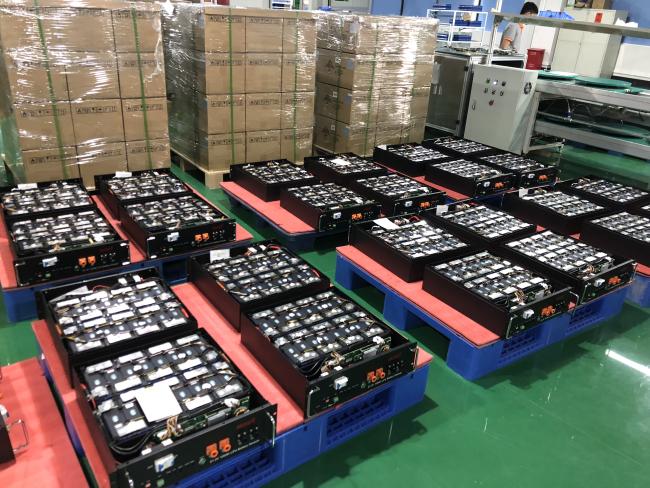

Pictures
Detailed parameters
ELECTRICAL PERFORMANCE
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 200AH |
| Capacity @ 20A | 600 min |
| Energy | 10240Wh |
| Communication | CAN2.0/RS232/RS485 |
| Resistance | ≤45 mΩ @ 50% SOC |
| Efficiency |
>96%
|
| Module Parallel | Up to 16 packs |
CHARGE PERFORMANCE
| Recommended Charge Current | 20A |
| Maximum Charge Current | 100A |
| Recommended Charge Voltage | 57.6V |
| BMS Charge Cut-Off Voltage | <54.7 V (3.65V/Cell) |
| Reconnect Voltage |
>54 V (3.6V/Cell)
|
| Balancing Voltage | <54V (3.6V/Cell) |
| Maximum Batteries in Series (cells) | 15(*Consult MUST) |
MECHANICAL PERFORMANCE
| Dimension (L x W x H) |
482*500*222mm
19.0x 19.7x 8.7”
|
| Approx. Weight | 35.7 lbs (80 kg) |
| Terminal Type | DIN POST |
| Terminal Torque | 80 ~ 100 in-lbs (9 ~ 11 N-m) |
| Case Material | SPPC |
| Enclosure Protection | IP54 |
DISCHARGE PERFORMANCE
| Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 110 A (3s) |
| BMS Discharge Cut-Off Current | 150A (300ms) |
| Balancing open voltage | 51.7V (3.45V/Cell) |
| Recommended Low Voltage Disconnect | 41.2 V (2.75V/Cell) |
| BMS Discharge Cut-Off Voltage | >30.0V (2s) (2.0V/Cell) |
| Reconnect Voltage
|
>37.5 V (2.5V/Cell) |
| Short Circuit Protection |
250 ~ 500 μs
|
TEMPERATURE PERFORMANCE
| Discharge Temperature | -4 ~ 131 ºF (-20 ~ 55 ºC) |
| Charge Temperature | -4 ~ 113 ºF (0 ~ 45 ºC) |
| Storage Temperature | 23 ~ 95 ºF (-5 ~ 35 ºC) |
| BMS High Temperature Cut-Off | 149 ºF (65 ºC) |
| Reconnect Temperature | 131 ºF (55 ºC) |
HEATING FOIL PERFORMANCE
| Heating Temperature Range | -4 to 41 ºF (-20 to 5 ºC) |
| Heating Time | Approximately 1 hour @ 7.5 A |
| BMS Heating Foil Cut-Off | 158 ºF (70 ºC) |
Company Information
Our Services
FAQ
Q1: What is the MOQ for this model?
A1:100 pcs. We can also ship the goods in a week to customer when we have stock.
Q2: How would the goods be shipped?
A2: We ship goods by DHL, UPS, FedEx, TNT and by Sea normally.
Q3: How about the delivery time?
A3: 7 days for sample; 40-45 days for bulk order.
Q4: What is the warranty of this model?
A4: Three year warranty.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q6: What is the payment?
A6:T/T, Western Union, Ali Pay, LC are warmly welcomed.
