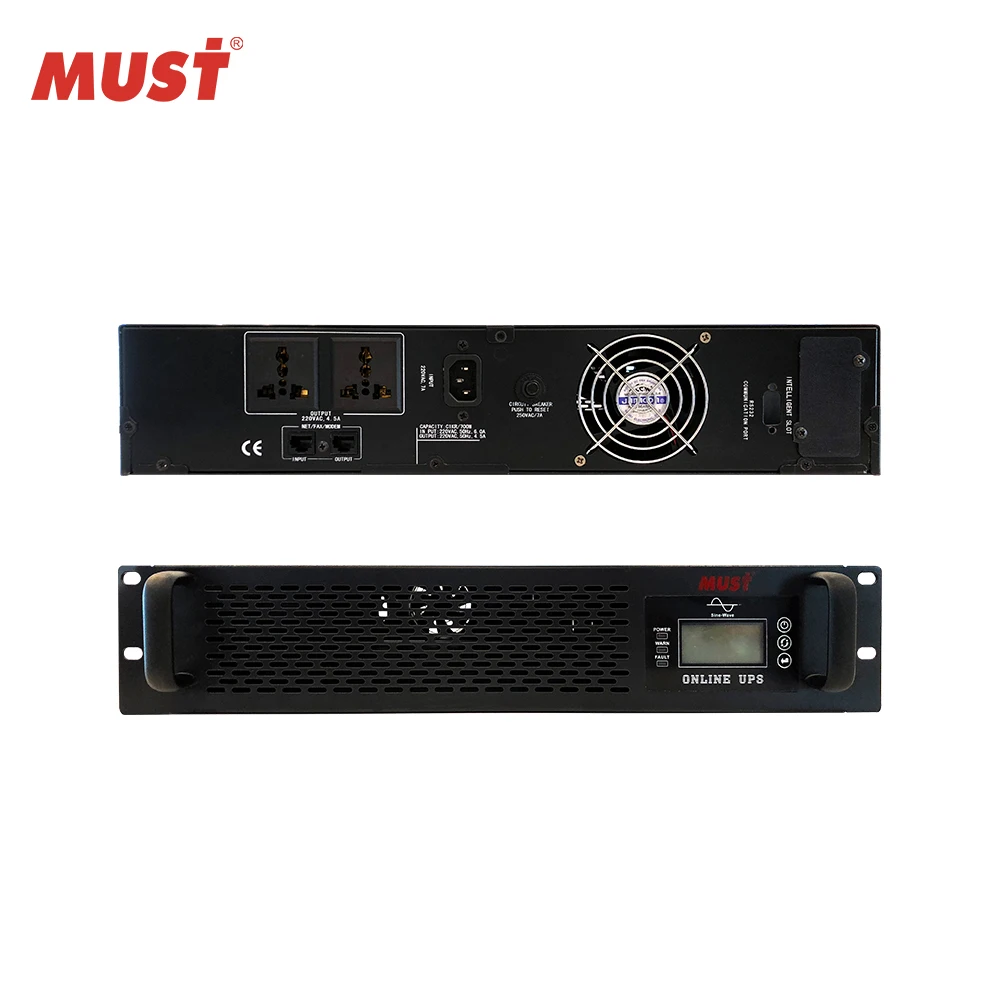

MUST China Factory High Quality Rack Mounted UPS 1KVA to 10KVA Uninterruptible Power Supply
Rack Series 1 ~ 10KVA UPS double conversion pure online architecture, the structure can block abnormal power supply impact on the load, at the same time, it can ensure the stable and reliable output, and make the load run safely. It is the best architecture design that can effectively solve all power problems, the use of digital control technology to provide users with more secure power protection.
- Rated power 1KVA to 10KVA;
- Pure Sine wave output;
- TRANSIENT VOLTAGE SURGE SUPPRESS protect function for FAX,TELEPHONE,MODEM;
- Machine efficiency greater than 93%, input power factor greater than 0.99, input current harmonics less than 5%;
- Compatible to generator;
- Optional SNMP for monitoring.
| Model | H1KR | H1KRS | H2KR | H2KRS | H3KR | H3KRS | H6KRS | H10KRS | |
| Capacity | Rated Capacity | 1KVA/1KW | 2KVA/2KW | 3KVA/3KW | 6KVA/6KW | 10KVA/10KW | |||
|
Input |
Input connection type | L+N+PE | |||||||
| Rated input voltage | 208/220/230/240VAC | ||||||||
| Voltage range | 110-300VAC | ||||||||
| Frequency rage | 50/60+HZ (default), ±10HZ (can be set) | ||||||||
| Input power factor | ≥ 0.99 | ||||||||
| Input THD | ≤ 4% % linear load | ||||||||
|
Output |
Output connection type | L+N+PE | |||||||
| Output voltage | 208/220/230/240VAC | ||||||||
| Output accuracy | ±1% | ||||||||
| Output frequency | Mains mode:same as AC frequency, battery mode : 50/60HZ+-0.1% | ||||||||
| Output THD | ≤2% linear load, ≤ 4% Non-linear load (PF=0.7) | ||||||||
| Output power factor | 1 | ||||||||
|
Overload Capacity |
AC mode : Battery mode : 30min@102%~110% Load 1min@102%~110% Load 10min@110%~130% Load 10s@110%~130% Load 30s@130%~150% Load 3s@130%~150% Load 200ms@>150% Load 200ms@>150% Load |
||||||||
|
Transfer time |
AC mode switch to battery mode | 0ms | |||||||
| mains inverter mode switch to bypass mode |
4ms |
||||||||
| AC priority mode | Support | ||||||||
|
Overall Efficiency |
AC Mode (Full Load) |
94.5%@220VAC |
95.5%@220VAC |
95.5%@220VAC |
Peak efficiency 95.5%, Full load efficiency 95% |
||||
|
Battery Mode (Full Load) |
87.5% @24VDC |
88.5% @36VDC |
89.5% @48VDC |
91.5% @72VDC |
91.5% @72VDC |
91.5% @96VDC |
Peak efficiency 95.3%, Full load efficiency 94.8% (20pcs Battery) | ||
|
Battery |
Battery type | Lead Acid Battery | |||||||
| Number of batteries | 7Ah*2/3 | / | 7Ah*4 | / | 7Ah*6 | / | / | ||
|
Battery Charge Current |
1KR-3KR:1A (default); 1-2A (can be set) 1KRS-3KRS:5A (default); 1-12A (can be set) | 1-12A (can be set) 1A (default) | |||||||
| Charging Mode | Two-stage/three-stage charging | ||||||||
|
Display |
LCD |
2×8 PIN/Pitch 2.54mm, support 128-bit segment code, up to 4 buttons + 4 LEDs, can display operating mode / load / input / output, etc | |||||||
|
Interface |
RS-232 | Support: Windwos 2000/2003/XP/Vista/2008/7/Linux/Unix and MAC | |||||||
| USB | Windows Famlly & MAC | ||||||||
| Intelligent slot (Optional) | SNMP/AS400 Relay Card/RS485 | ||||||||
|
Environmental parameters |
Operating ambient temperature | 0~40℃ | |||||||
| Operating environment humidity | 20%~95% (No condensation) | ||||||||
| Storage temperature | -15~60℃ ( Battery : 0~40℃ ) | ||||||||
| Altitude | The altitude should not exceed 1000m, derating above1000m, up to 4000m (max ) , refer IEC62040 | ||||||||
| Noise | ≤45db | ||||||||
|
Mechanical Specifications |
Dimensions (D*W*H) (mm) |
438*420*88 |
438*600 *88 |
438*420 *88 |
438*600 *88 |
438*420 *88 |
438*420*88 | ||
|
Net weight (kg) |
9.5/11.5 |
6 |
17 |
6.5 |
21.5 |
7 |
10 (without battery pack) |
11 (without battery pack) |
|
