300KVA UPS Computer Battery Backup Power Supply With 30kva Module

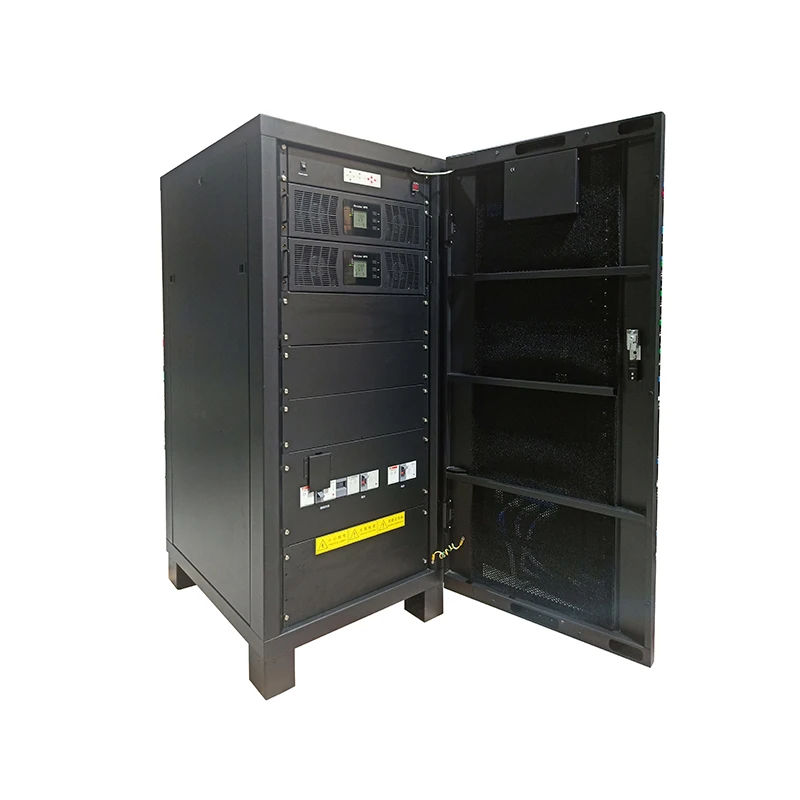

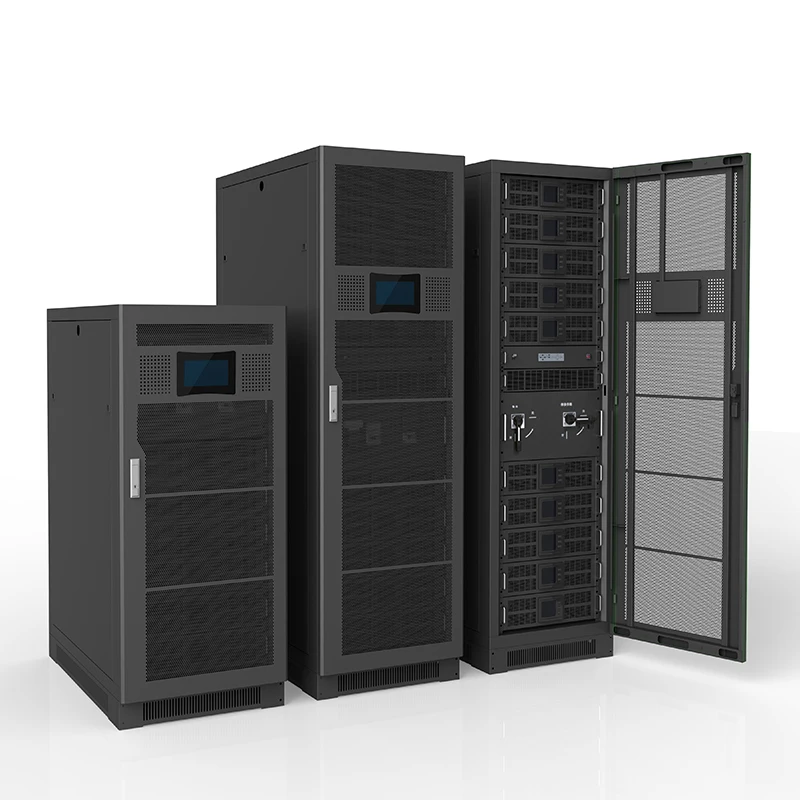

MUST Manufacturer Modular UPS EH9500 Series 300KVA with 30kva module
| Model | EH9500-60KVA/20 EH9500-90KVA/30 EH9500-120KVA/40 |
EH9500-100KVA/20 EH9500-150KVA/30 EH9500-200KVA/40 |
EH9500-200KVA/20 EH9500-300KVA/30 EH9500-400KVA/40 |
|
|---|---|---|---|---|
| Capacity | ||||
| Module No. | RU-20/RU-30/RU-40 | RU-20/RU-30/RU-40 | RU-20/RU-30/RU-40 | |
|
Maximum Number of Modules |
3 | 5 | 10 | |
| Input | ||||
| Input | 3Ph+N+PE | |||
| Rated Voltage | 380/400V/415Vac | |||
| Voltage Range | 208~478Vac | |||
| Frequency Range | 40~70Hz | |||
| Power Factor | ≥0.99 | |||
| Bypass Range | 80 upper limit:25%( +10% ; +15% ; +20% optional) 400 upper limit(20% ; +10% ; +15% optional) 415 upper limit(15% ; +10% optional) lower limit : -45% (-20%;-30% optional) Bypass frequency protection range: ±10% |
|||
| Harmonic distortion(THDi) | ≤ 3% (100% non-linear load) | |||
| Generator access | Support | |||
| Output | ||||
| Output | 3Ph+N+PE | |||
| Rated Voltage | 380/400V/415Vac | |||
| Power Factor | 0.9 | |||
| Voltage Regulation | ±1% | |||
|
Output Frequency |
AC Mode |
Synchronous with input; maximum ±10% (±1%, ±2%, ±4%, ±5% can be set), |
||
|
Battery Mode |
(50/60±0.2%)Hz | |||
| Crest Factor | 3:1 | |||
| Transfer Time |
AC mode to bypass mode: 0ms (tracking); AC mode to battery mode: 0ms |
|||
| Overload Capability | Load≤ 110% for 60min, ≤ 125% for 10min, ≤ 150% for 1min, ≥ 150% turn to bypass mode immediately |
|||
| Harmonic distortion(THDi) | ≤ 2%(100% Linear load) | |||
| Others | ||||
| Efficiency | Normal Mode 95% | |||
| CommunicationInterface | RS232 RS485 2 Intelligent Slot (Smart card slot) dry connect | |||
| Executive Standard | CE,EN/IEC 62040-2, EN/IEC 62040-1-1, YD/T1095-2008 | |||
| Battery | ||||
| Battery Voltage | ±192V±204V±216V±228V±240V DC; (32 pcs;34 pcs;36 pcs;38 pcs;40 pcs optional) |
|||
| Charging Current | UPS Cabine | 30A Max. | 50A Max. | 100A Max. |
| Power Module | 10A Max. | |||
| Working Environment | ||||
| Operating Temperature | 0℃ ~ 40℃ | |||
| Relative Humidity | 0 ~ 95% non condensing | |||
| Stored Temperature | -25℃ ~ 55℃ | |||
| Altitude | < 1500m | |||
| Physical Characteristics | ||||
|
Physical Dimension (D×W×H)mm |
Cabinet | 600 x 840 x 1400 | 600 x 1100 x 2000 | |

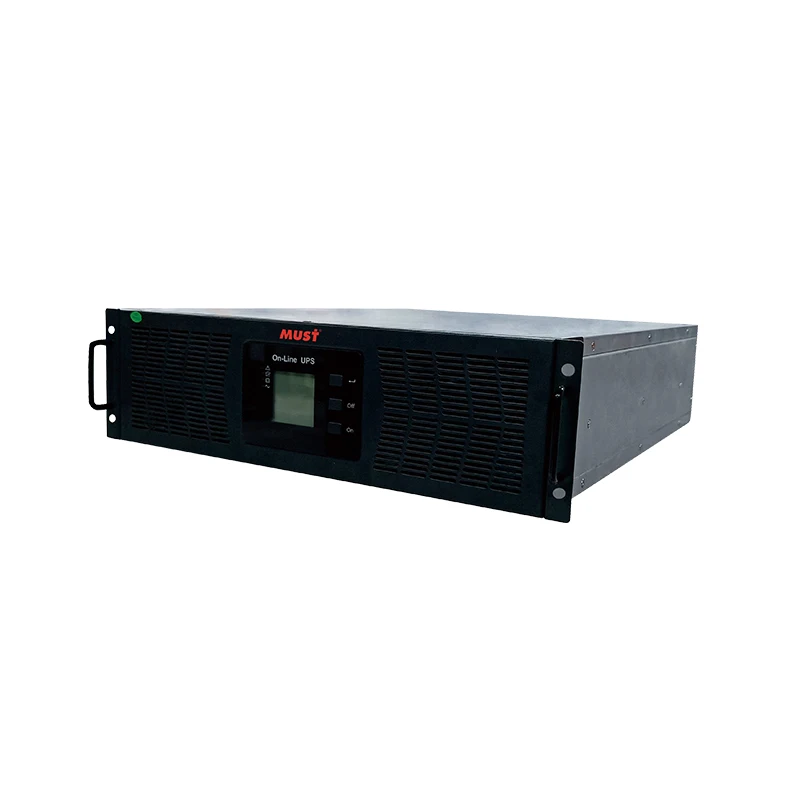

| Module | 580 x 443 x131(3U) | |||
| Net Weight (kg) | Cabinet | 157 | 169 | 306 |
| Module | 33 | |||
1. MUST Factory located in Huanan Chuanggu Science and Technology Park, Chancheng District, Foshan City. We are a high-tech manufacturer specializing in R&D, production, sales and service of industrial automation, new energy and power electronics related products.
2. MUST main products include: (UPS), Inverter, Photovoltaic Controller, Photovoltaic Inverter, Photovoltaic control inverter integrated machine, photovoltaic energy storage inverter, photovoltaic grid-connected inverter, Photovoltaic power generation system, photovoltaic pump system, microcomputer room system, dedicated loss converter, servo drive, servo motor, servo system
3. MUST's products have passed CE, SAA, SONCAP, SGS, Tell certification and other safety certifications, ISO: 9001, ISO: 14000 and other quality management system certification,
4. MUST products are exported to Spain, Italy, Russia, Australia, the Middle East, Ukraine, South Africa, Nigeria, Pakistan and other countries to provide customers with quality and efficient services.
Q1: How to choose a right UPS?
A1:Tell us your demand, then our sales will recommend a suitable UPS to you.
Q2: What's the different between offline ups and line interactive ups?
A2: The true LINE INTERACTIVE design is in fact a combination of OFFLINE & ONLINE, in which the inverter plays a dual role of charging the battery when mains supply is present as well as regulating the output voltage and working as a normal inverter in absence of mains supply, so to the user it appears like an ONLINE System. Line Interactive UPS offers enhanced power protection over the basic Offline designs by providing additional line conditioning.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of UPS?
A4: One year warranty on Must-UPS product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
