LiFePo4 200ah 12V Lithium Ion Battery Pack 4000 Cycles For Solar Storage
Price:
USD 244~88
MOQ:
1 pc
Delivery Time:
7 days for sample
Brand:
MUST
Product Description
MUST Brand 12V Lithium Ion Battery Pack 4000 Cycle Times 12.8V 50AH ~ 200AH LiFePO4 640WH~2560WH
Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.
Suitable applications include:
• Caravan
• Marine
• Golf Car
• Buggies
• Solar Storage
• Remote Monitoring
• Switching applications and more
ELECTRICAL PERFORMANCE
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 200 Ah |
| Capacity @ 20A | 300 min |
| Energy | 2560 Wh |
| Resistance | ≤40 mΩ @ 50% SOC |
| Self Discharge | <3% / Month |
CHARGE PERFORMANCE
| Recommended Charge Current | 20A |
| Maximum Charge Current | 200A |
| Recommended Charge Voltage | 14.6V |
| BMS Charge Cut-Off Voltage | <15.6 V (3.9V/Cell) |
| Reconnect Voltage | >14.4 V (3.6V/Cell) |
| Balancing Voltage | <14.4 V (3.6V/Cell) |
| Maximum Batteries in Series | 4 (*Consult MUST) |
DISCHARGE PERFORMANCE
| Maximum Continuous Discharge Current | 200 A |
| Peak Discharge Current | 400 A (3s) |
| BMS Discharge Cut-Off Current | 1000 A ±150 A (30ms) |
| Recommended Low Voltage Disconnect | 11 V (2.75V/Cell) |
| BMS Discharge Cut-Off Voltage | >8.0 V (2s) (2.0V/Cell) |
| Reconnect Voltage | >10.0 V (2.5V/Cell) |
| Short Circuit Protection | 250 ~ 500 μs |
COMPLIANCE
| Certifications | CE (battery) UN38.3 (battery)UL1642 & IEC62133 (cells) |
| Shipping Classification | UN 3480, CLASS 9 |
MECHANICAL PERFORMANCE
| Dimension (L x W x H) | 483 x 170 x 240 mm19.0 x 6.7 x 9.4″ |
| Approx. Weight | 27.8 lbs (23kg) |
| Terminal Type | DIN POST |
| Terminal Torque | 80 ~ 100 in-lbs (9 ~ 11 N-m) |
| Case Material | ABS+PC |
| Enclosure Protection | IP65 |

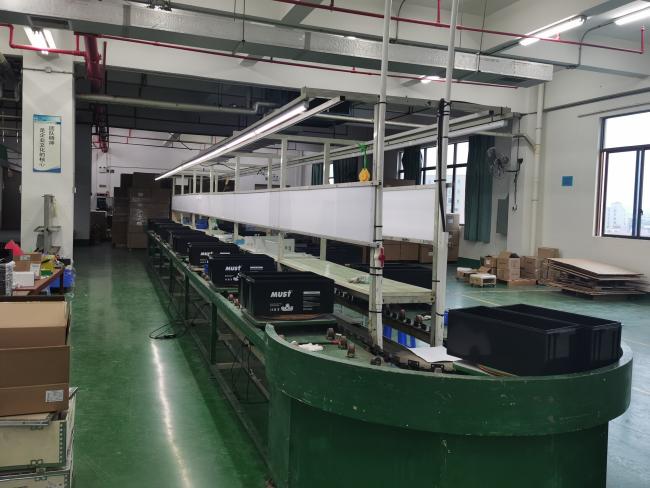

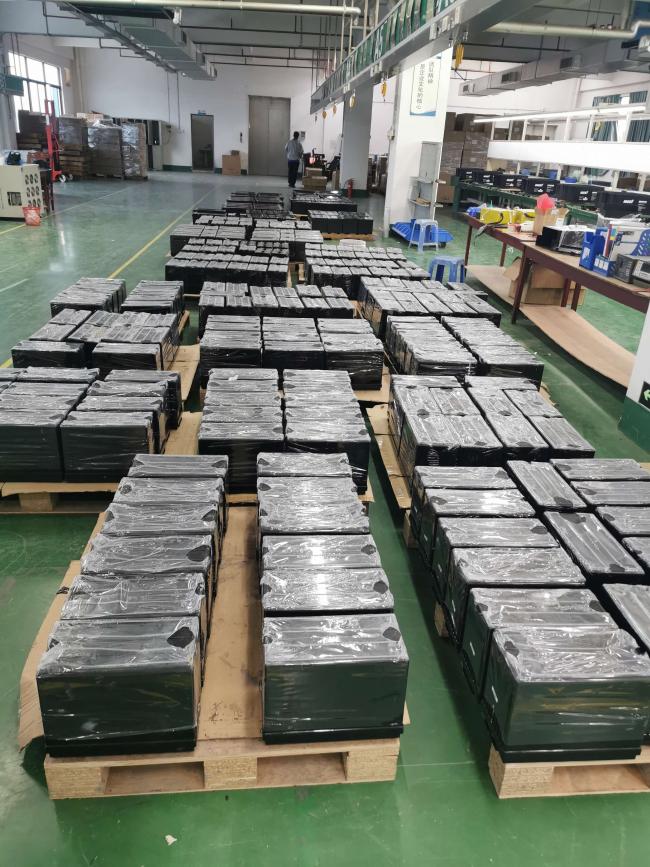

Production Scene Graph
