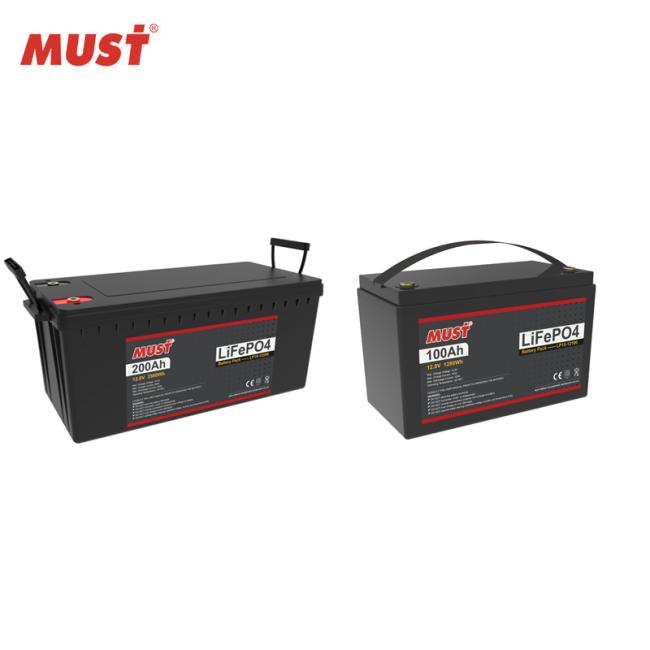

Marine 12V 100ah Lithium Ion Deep Cycle Battery For UPS System
OEM/ ODM 12.8V 100AH LiFePO4 Lithium Battery Pack 1280 WH for Solar / UPS / Energy Storage System
Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.
Suitable applications include:
• Caravan
• Marine
• Golf Car
• Buggies
• Solar Storage
• Remote Monitoring
• Switching applications and more
FEATURES & BENEFITS
High cycle life
4000 cycles @80% DoD for effectively lower total of ownership cost
Longer service life
Low maintenance batteries with stable chemistry.
Built in circuit protection
Battery Management System (BMS) is incorporated against abuse.
LECTRICAL PERFORMANCE
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 100 Ah |
| Capacity @ 20A | 300 min |
| Energy | 1280 Wh |
| Resistance | ≤30 mΩ @ 50% SOC |
| Self Discharge | <3% / Month |
CHARGE PERFORMANCE
| Recommended Charge Current | 20A |
| Maximum Charge Current | 100A |
| Recommended Charge Voltage | 14.6V |
| BMS Charge Cut-Off Voltage | <15.6 V (3.9V/Cell) |
| Reconnect Voltage | >14.4 V (3.6V/Cell) |
| Balancing Voltage | <14.4 V (3.6V/Cell) |
| Maximum Batteries in Series | 4 (*Consult MUST) |
DISCHARGE PERFORMANCE
| Maximum Continuous Discharge Current | 100 A |
| Peak Discharge Current | 200 A (3s) |
| BMS Discharge Cut-Off Current | 300 A ±10 A (30ms) |
| Recommended Low Voltage Disconnect | 11 V (2.75V/Cell) |
| BMS Discharge Cut-Off Voltage | >8.0 V (2s) (2.0V/Cell) |
| Reconnect Voltage | >10.0 V (2.5V/Cell) |
| Short Circuit Protection | 250 ~ 500 μs |
COMPLIANCE
| Certifications | CE (battery) UN38.3 (battery)UL1642 & IEC62133 (cells) |
| Shipping Classification | UN 3480, CLASS 9 |
MECHANICAL PERFORMANCE
| Dimension (L x W x H) | 320 x 172 x 215 mm13.0 x 6.7 x 8.5″ |
| Approx. Weight | 27.8 lbs (12 kg) |
| Terminal Type | DIN POST |
| Terminal Torque | 80 ~ 100 in-lbs (9 ~ 11 N-m) |
| Case Material | ABS+PC |
| Enclosure Protection | IP65 |
TEMPERATURE PERFORMANCE
| Discharge Temperature | -4 ~ 131 ºF (-20 ~ 55 ºC) |
| Charge Temperature | -4 ~ 113 ºF (0 ~ 45 ºC) |
| Storage Temperature | 23 ~ 95 ºF (-5 ~ 35 ºC) |
| BMS High Temperature Cut-Off | 149 ºF (65 ºC) |
| Reconnect Temperature | 131 ºF (55 ºC) |
HEATING FOIL PERFORMANCE
| Heating Temperature Range | -4 to 41 ºF (-20 to 5 ºC) |
| Heating Time | Approximately 1 hour @ 7.5 A |
| BMS Heating Foil Cut-Off | 158 ºF (70 ºC) |
1. Are you a manufacturer?
Yes, MUST is a manufacturer with 20+ year experience on Lithium Battery, Solar Inverter and UPS system.
2. Can I have a sample order?
Yes, we welcome sample order to test and check quality.
3. What about the lead time?
(1)Sample needs 3-5 days
4. Do you have any MOQ limit?
(1)For Retails,we have no MOQ.,1pc can be an order.
(2)For wholesales,we have MOQ for better price, normally 50-100pcs.
5. How do you ship the goods and how long does it take to arrive?
(1)For small quantity,we often ship by air, arrive time is about 3-10 days to different countries.
(2)For official order,suggest to ship by Ocean to save cost. To USA, arrive time is about 25 days,to Europe,arrive time is about 30 days.
6. How to proceed with an order?
(1)Let us know your requirements or application.
(2)We quote according to your requirements or our recommendations .
(3)Customer confirms the samples and places formal order.
(4)We arrange the production.
(5) We ship to you .
7. Is it OK to print my logo?
Yes, OEM or ODM order are welcome .
8. Which certificates do you have?
We have CE/UN38.3/MSDS ...etc. Promise a good quality to our customers.
9. How about warranty?
3 years warranty by standard.
Q6: What is the payment?
A6:T/T, Western Union, Ali Pay, LC are warmly welcomed.
