9.7KG TWITTER GRAVEL Carbon Fiber Gravel Bike , Carbon Fiber Hybrid Bike 700x40C Tire
Carbon Fiber Gravel Hybrid Road Bike TWITTER Gravel-V2 Wheel Size 700*40C
What are the features of a TWITTER carbon road bike?
· Very lightweight frame, wheels and components.
· A drop (curled) handlebar, though some have a flat bar like a mountain bike.
· Narrow wheels and tires for high speed racing.
· A composite (carbon fiber) front fork.
· No front or rear suspension.
· Men's and women's styles and a wide range of sizes for optional.
· TWITTER developed Compact Road Design, which essentially saw the toptube sloping down from the headtube,
thus making the frame’s front and rear triangles smaller. Genius.
Detail specification of Carbon fiber GRAVEL road bike:
| Bike Model | GRAVEL-V2 |
| Wheel Size | 700*40C |
| Frame Height | 45cm / 48cm / 51cm / 54cm |
| Bike Color | Black ( Red / DarkGray / CementGray / Silver / Orange / Blue / Yellow )/White Red |
| Net Weight | 9.7KG |
| Frame | GRAVEL-V2(disc&thru-axle 12×142), high modulus Carbon fiber,XC,EPS,Inner-Cable,Cut&Gloss+UV laser colorful decals |
| Handelbar Sets | TW, high modulus Carbon fiber, Integrated Handlebar&Stem(420*90mm),UV embossing water decals,full Inner-Cables |
| Seat Post | High modulus Carbon fiber,Aero-Racing |
| Fork | GRAVEL-V2(disc&thru-axle 12×100), high modulus Carbon fiber,XC,700C,UV laser colorful decals |
| Head Sets | TW, Alu alloy CNC with sealed-Bearings 52*52mm |
| Derailleur Handle | RETROSPEC(SENSAH)-24S, carbon handle |
| Front Derailleur | RETROSPEC(SENSAH) |
| Rear Derailleur | RETROSPEC(SENSAH)-12S |
| Cranksets | RETROSPEC, Alu alloy,Hollow,34-50T |
| Cassettes | SUNSHINE-12S, 11-30T |
| Chain | SUMC-12S |
| Brake | ZOOM, flat-mount&cable pull Hydr+PRO float disc 160/140 |
| Hubs | RS, Alu alloy,4-sealed Bearings,Slotted,F24*R24 holes,Disc&thru-axle 12×F100_R142 |
| Rim | RS, Alu alloy AL7005,Double wall,Matte,W19×H36mm×700C |
| Spoke | SHUNJIU,Circular 14G,Bend head |
| Tyre | INNOVA, 700*40C, Skin-color edge |

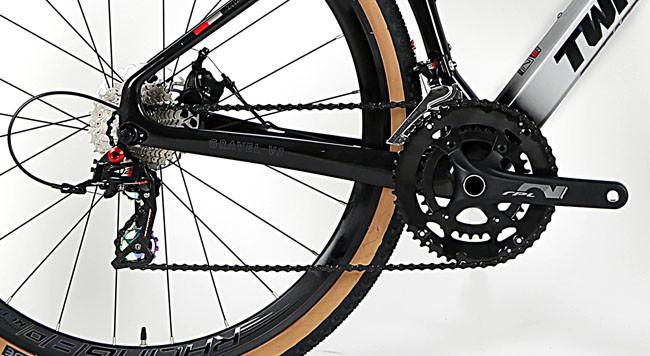

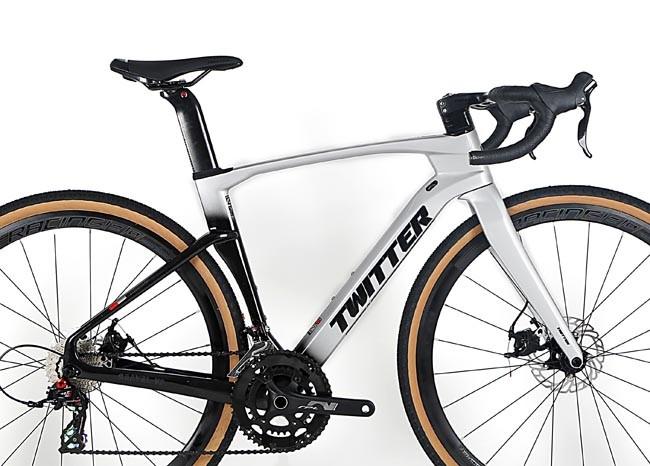

Different viewing angle of TWITTER GRAVEL-V2 Road bike
Size from XS to L meet almost all the riders' height.
| size | A | B | C | D | E | F | G | H | I | J | K | L | M |
| mm | mm | mm | mm | ° | ° | mm | mm | mm | mm | mm | mm | ||
| XS - 45cm | 450 | 505 | 363 | 408 | 74.3 | 71.2 | 74 | 100 | 55 | 505 | 572 | 969 | 265 |
| S - 48cm | 480 | 520 | 373 | 408 | 74.3 | 71.2 | 75 | 114 | 55 | 519 | 588 | 985 | 265 |
| M - 51cm | 510 | 538 | 388 | 408 | 74.3 | 71.2 | 76 | 130 | 55 | 533 | 607 | 1004 | 265 |
| L - 54cm | 540 | 550 | 394 | 408 | 74.3 | 71.2 | 77 | 150 | 55 | 552 | 620 | 1017 | 265 |
| FRAME SIZE WITH RIDER HEIGHT | |||||||||||||
| Frame size | XS - 45cm | S - 48cm | M - 51cm | L-54CM | |||||||||
| Rider height | 155-170cm | 165-175cm | 175-185CM | 185-195CM | |||||||||
UV laser colorful decals on the frame, made your road bike more attractive, and more safe during riding in dark night.
