10t10m Electric Hydraulic Telescopic Boom Marine Crane For Offshore Support Vessel
10t10m electric hydraulic telescopic boom marine crane for offshore support vessel
The telescopic box boom marine cranes are designed as an electro-hydraulic driven telescopic boom crane, with integrated electro-hydraulic power package or independent electro-hydraulic power package, delivered as a complete unit ready for installation to the foundation. The telescopic boom cranes offer a compact size when in stowed position solution. Customized to your required specifications. The crane is equipped with a hydraulic powered winch, hydraulically powered luffing, hydraulic-powered extension, and a hydraulic powered slewing system.
Technical specification
| 1 | SWL | 10t@10m |
| 2 | Max working radius | 10m |
| 3 | Min working radius | 2m |
| 4 | Hosting speed | 0~12m/min |
| 5 | Slewing speed | 0.7r/min |
| 6 | Slewing angle | 360° free |
| 7 | Luffing time | 40s |
| 8 | Hook travel | 25m |
| 9 | DFT of painting | 320um |
| 10 | Extension time | 20s |
| 11 | Working condition | |
| Heel | ≤ 5° | |
| Trim | ≤ 2° | |
| 12 | Electric motor | |
| Power | 37Kw | |
| Speed | 1480r/min | |
| Power source | 440V 50Hz, | |
| Protect class | F | |
| Working type | S1 | |
| 13 | Flow | 100L/min |
| 14 | Design temperature | -10°~40° |
| 15 | Dead weight | ~10000 kg |

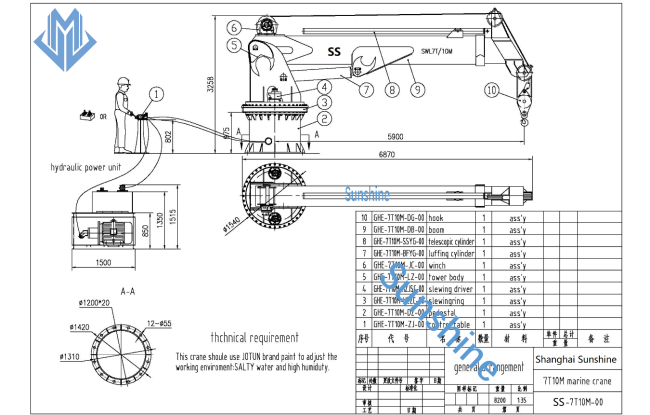

General drawing

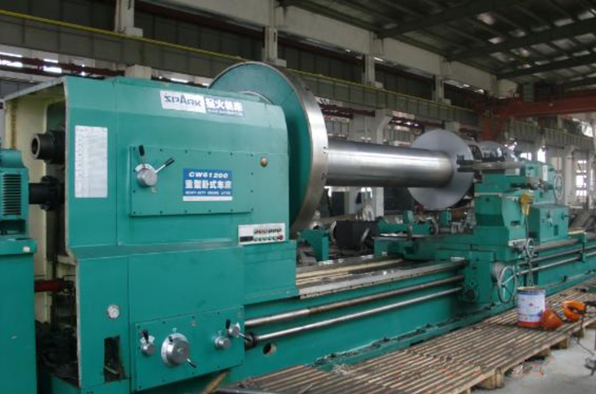

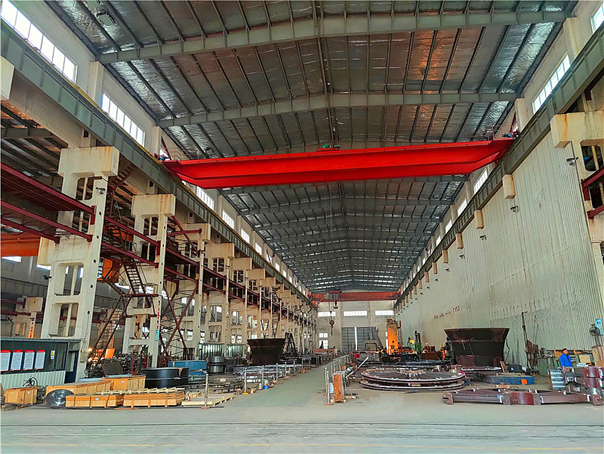

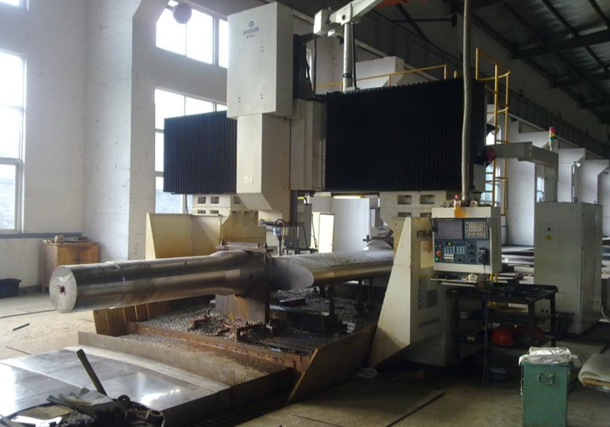

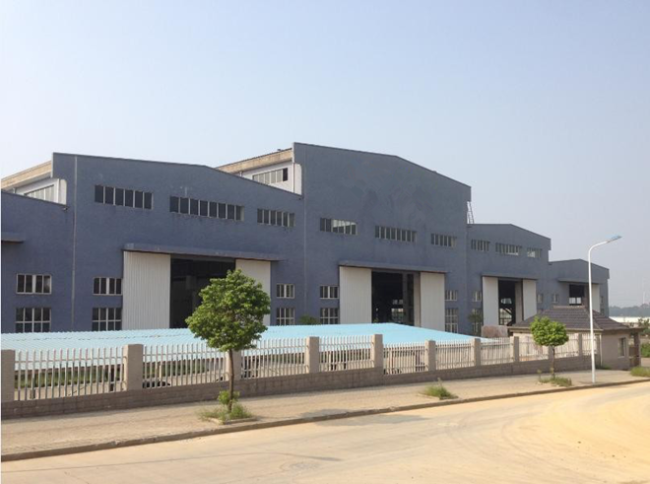

photos of our factory
