500 Kg Tail Lift And Liftgate For Transport Logistic Mounted On Truck
500 kg Tail lift and liftgate for transport logistic mounted on truck
The Tail lift or liftgate, is a mechanical device that is permanently mounted on the rear of a work truck. It can be also mounted on the rear of van or lorry. The lifting capacity for the tail lift is from 500 kg to 2500 kg. The tail lifts can be tailor-made solutions for all fields of applications. It`s a fantastic mechanical device that is designed to facilitate the materials handling of goods from ground level to the level of the truck bed. It makes the loading and unloading work from truck bed to ground or from ground to truck bed so easy.
SPECIFICATION
| Model | SSI-500 |
| Lifting capacity | 500 kg |
| Lifting gear hydraulic | 1 lifting cylinder/1 tilting cylinder |
| Main beam | 120mm*120mm |
| Lifting arm pitch | 620mm |
| Load center, longitudinal | 600mm |
| Load center, across centre | central, 50% rated load on one side |
| Platform overlap with floor | -44mm |
| Inclination angle of the platform | +90°~-10° |
| Power source | DC 12V or 24V |

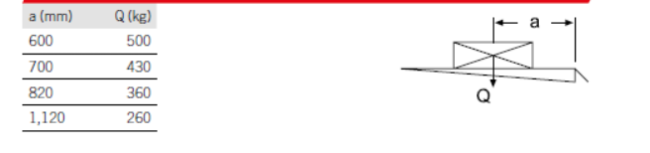

Load diagram
General drawing
Demonstration pictures

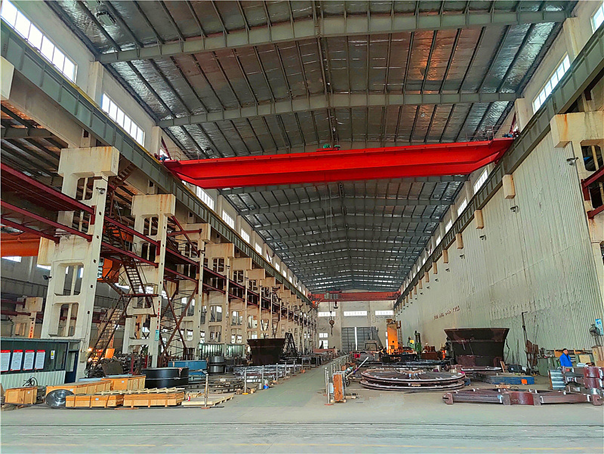

About us
