2500 kg electric hydraulic tail lift and liftgate for transport logistic

The Tail lift or liftgate is a mechanical device that is permanently mounted on the rear of a van or lorry. It can be also mounted on the rear of a work truck. It`s a fantastic mechanical device designed to facilitate the materials handling of goods from ground level to the level of the truck bed. It make the loading and unloading work from truck bed to ground or from ground to truck bed so easy.

SPECIFICATION

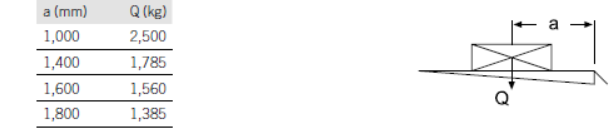

Load diagram

General drawing

Demonstration pictures

About us

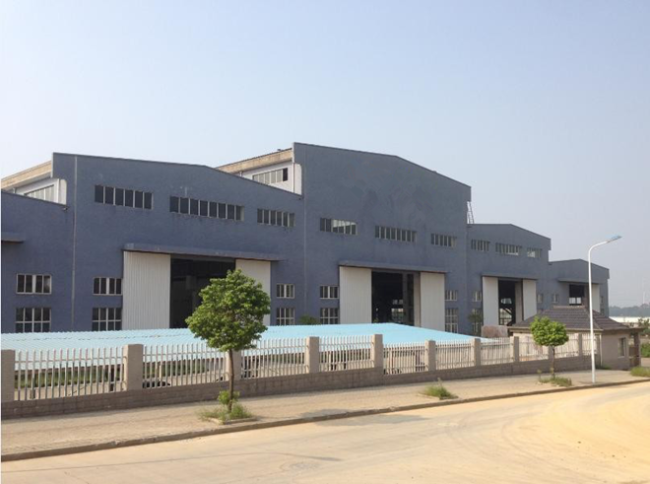

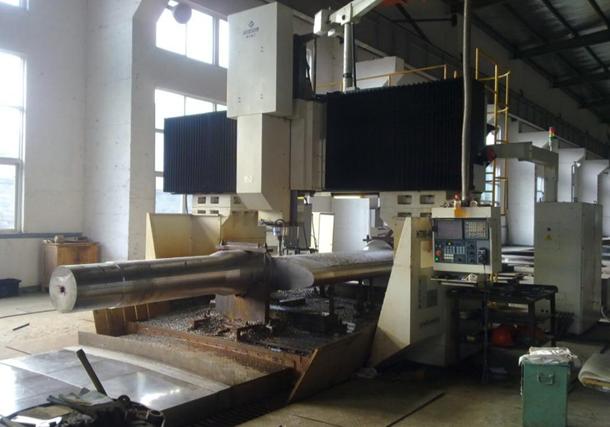

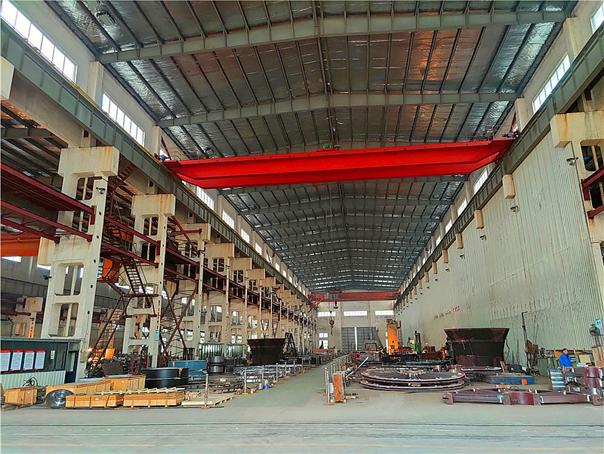

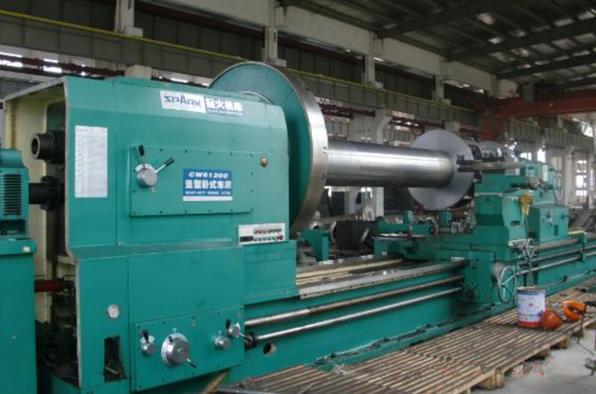

The company's manufacture base is located in Tonglu county, Zhejiang Province, which is known as "the most beautiful county in China". It is 65 kilometers away from Hangzhou city and 60 kilometers away from Qiandao Lake. The transportation to Tonglu county from other places is very convenient. No matter by railway, highway or waterway. The manufacture base has a total plant area of around 30000 square meters and workshop is equipped with more than 300 sets of various advance manufacture equipment, including 20 sets of CNC precision vertical lathe MODEL: SMVTM12000×50/150, CNC vertical lathe MODEL:DVT8000×30/32, CNC horizontal lathe, MODEL: CK61315×125/32, CNC horizontal lathe MODEL:CK61200×80/32, CNC Grounding boring and milling machine MODEL:TJK6920,etc.Most of the parts are machined by using CNC machine equipment. Theis is a hot treatment furnace with size 10.5m×8m×8m. The manufacture base also equipped with lifting capacity of 25t, 50t, 100t, 200t overhead crane to handle heavy workpiece and assembly work.
