IP68 Self Locking Straight Plug Connector Circular Push Pull Nickel Plating
IP68 Self Locking Straight Plug Connector Circular Push Pull Nickel Plating

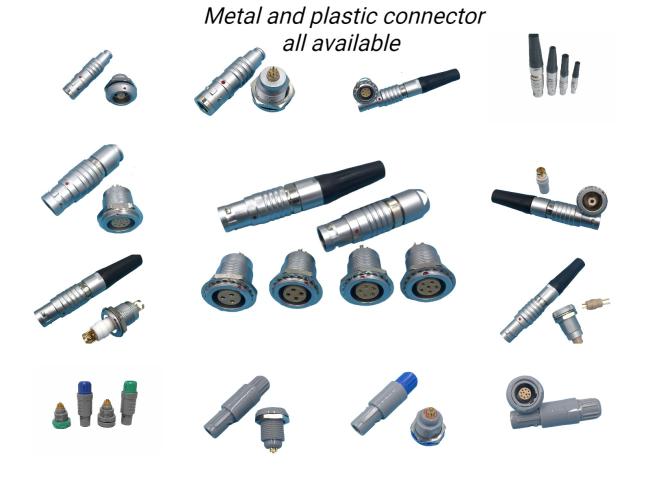

Circular Push Pull Connectror, B Series Self Locking Connector
Application : These Connectors are used in medical applications,Electronic
instrument,war industry product, military,etc.
Mechanical Details
| Mechanical Details | |
| Shell Style | Straight plug, with cable collet |
| Key | 1 key(alpha=0°；plug: male contacts, receptacle:female contacts) |
| Housing material | Brass Cr plated |
| Housing color | Grey-White |
| Cable OD max | Φ5.0mm |
| Jacket | Grey, black |
| Endurance | 5000 mating cycles |
| Operation temp.(min) | -20℃ |
| Operation temp.(max) | 120℃ |
| Humidity(max) | <=95%(at 60℃/140F) |
Technical parameter
| Series | Cable outer diameter range(mm) | Pin Number |
INGRESS PROTE CTION |
Temperature range | |||
| cable clamp | cable clamp with bend relief | ||||||
| Min | Max | Min | Max | ||||
| 00 | 1.1 | 3.4 | 1.1 | 3.4 | 2,3,4pin | ||
| 0B | 1.5 | 5.5 | 1.5 | 5.0 | 2,3,4,5,6,7,9 pin | IP50 | -55°C~250°C |
| 1B | 2.2 | 7.5 | 2.2 | 7.0 | 2, 3, 4, 5, 6, 7,8,10,14,16pin | ||
| 2B | 1.5 | 9.7 | 1.5 | 9.0 | 2, 3, 4, 5, 6, 7,8,10,12,14,16, 18,19pin | ||
| 3B | 4.1 | 11.7 | 4.1 | 11.0 | 2, 3, 4, 5, 6, 7,8,10,12,14,16, 18, 20,22,24,26,30 pin | ||
| 0K | 1.0 | 5.0 | 1.0 | 5.0 | 2,3,4,5,6,7,9 pin | IP66-IP68 | -55°C~200°C |
| 1K | 1.3 | 8.5 | 1.3 | 8.5 | 2, 3, 4, 5, 6, 7,8,10,14,16pin | ||
| 2K | 1.3 | 10.5 | 1.3 | 10.5 | 2, 3, 4, 5, 6, 7,8,10,12,14,16, 18,19pin | ||
| 3K | 2.6 | 15.0 | 2.6 | 15.0 | 2, 3, 4, 5, 6, 7,8,10,12,14,16, 18, 20,22,24,26,30 pin |
||
Main Features
| 1. Push pull locking metal connector, cable to cable connector, free socket, inline connector |
| 2. Safe push-pull (plug-in) self-locking system. |
| 3. Welding and printed circuit board pin cores (straight and bent). |
| 4. It is convenient for high-density installation and saves space. |
| 5. Various multi-core types can be produced, and can be specially customized according to customer requirements |
| 6. Various key positions’ different positioning selection can prevent mixed insertion between similar connectors. |
| 7. 360 degree shielding provides comprehensive EMC protection. |
| 8. can be 100% compatible with original connector. |
Our Advantages
1.) More competitive price.
2.) 1 pcs samples available.
3.) OEM & ODM service acceptable.
4. ) With a wide range of products, complete models, reasonable prices and high quality.
5.) High quality after-sales service.
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM service.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: Can we visit your factory?
A: Of course yes, we will prepare for everything in advance if it is necessary.Generally, It is requirement that
customers must have build agency relationship or business relationship with our company.
Q: How do you control your quality?
A: Firstly, we need to test each batch after we get raw material from supplier,Secondly,
we need to test 2 times one by one while we are producing. Thirdly, we will test again one by
one after we finish production.Finally, we will spot-check after packing.
