P Series main Features
1) Bigger size to accommodate cable diameter up to 7.5 mm and allow up 4,6,8,10,12,14,16,26 contacts;
2) Rapid push-pull locking system,blind mating;
3) Outshell-POLYCARBONATE (PC), Insulator-PPS, RoHs certified can be sterilized by gas or by steam.
4) Straight and Elbow; PCB and Solder contacts
5) At least 2000 mating/ unmating cycles without significantly affecting the electrical characteristics.
6) A keying system combined with colour coding can be prevention of mismating.
7) Gray or black outershell,colour coding is black and gray.
Physical device performance
| Shell Style | Straight plug |
| Key | 1 key(alpha=0°；plug: male contacts, receptacle:female contacts) |
| Housing material | PPS |
| Outer shell color | Grey |
| Cable OD | Φ1.5~4.3mm |
| Jacket | Black,Red,Yellow,Blue,White |
| Endurance | 1000 mating cycles |
| Operation temp.(min) | -20℃ |
| Operation temp.(max) | 120℃ |
| Humidity(max) | <=95%(at 60℃/140F) |
| IP Rating | IP 50 |
Technical parameter
| Series | 1P series |
| Environment | Indoor , splash proof |
| Ingress protection | IP50, IP64 |
| Latching | Push-pull self latching |
| Insulator type | Multipole, Mains power, Fluidic |
| Contact type | Solder, crimp or print |
| Other | Disposable models |
| Cable diameter | 2.7mm to 6.5mm |
| Features | 6 keyways |
| Contacts | 2-14pin |
Electrical performance
| Insert | 4 pin Low Voltage |
| Configuration | Brass gold plated |
| Insulator material | PPS |
| Contact type | Solder |
| Max matings | 1000 |
| Contact Dia | Φ1.3mm |
| Solder Dia | Φ1.8mm |
| Max solder contact | AWG20# |
| Max contact R | 5.0mΩ |
| AC Voltage test | AC 1050V |
| DC Voltage tes | DC 1000V |
| Rated Current | 8A |
| Salt spray corrosion | >144 hr |
| Shielding | 75dB(10M Hz) |
| Shielding | 40dB(1G Hz) |
Drawing
Our advantages
Sample Free:1-10 PCS.
* Fast lead time: 3-5 work days if the QTY is under 200 PCS.
* Flexiblity payment way:T/T,PayPal,West union,Credit card.
* 24 hours service for clients.
* Competitive price & stable production.
* OEM/ODM/Cable Assemble.
* World-class customer service.

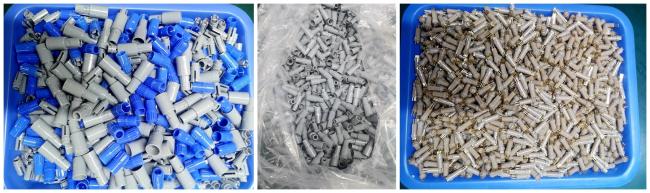

Connector assembly pictures
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM service.
Q: What’s your delivery time ?
A: sample for 3-5 working days, mass production for 5-20 working days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q:How to buy your products?
A:You need advise us below
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style * Confirm Cable Wire guage (AWG)
* Confirm Cable Length and Material.
Q: Can we visit your factory?
A: Of course yes, we will prepare for everything in advance if it is necessary.Generally,
It is requirement that customers must have build agency relationship or business relationship with our company.
