2 3 4 5 6 Cores Custom Medical Cable With Tinned Copper Conductor
2 3 4 5 6 Cores Custom Medical Cable With Tinned Copper Conductor
Main Features
1. Characteristics : Anti - acid & alkali, oil - resistant, moisture-proof, anti - mildew, etc. Easy to peel and cut.
2. Flammability Test : pass the UL VW - 1 and CSA FT1 vertical flame test
3. High and low temperature resistance, excellent electrical insulation.
4. Excellent chemical stability, high voltage resistance, aging resistance, long service life, soft and easy to install.
5. Good acid and alkali resistance, fungus resistance, oil resistance, moisture resistance, waterproof and mildew resistance.
Application
It's widely used in high-temperature environment such as medical equipment, lighting fixtures, household appliances,
electric appliances, instrumentation, motor leads, electronic lamps, and burning appliances.

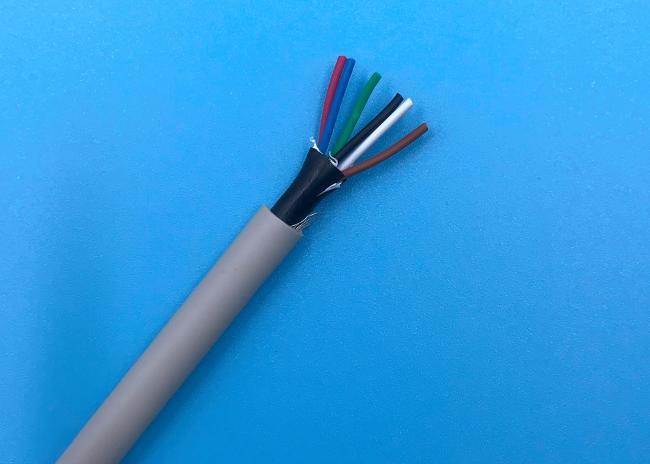

Product structure
1. Conductor: stranded with multiple strands of 0.08 tinned copper (bare copper optional),
conforming to the sixth stranded conductor of GB / t3956.
2. Insulation & sheath: high and low temperature resistant silicone rubber.
3. Inner lining: PP bag or non-woven fabric wrap buffer.
4. Color of insulation & sheath: Brown, blue, black, gray, purple, white, orange, red, yellow, green, pink,
yellow green, etc. (red and black are preferred, and other colors shall be informed in advance).
| Technical parameter | |
| Rated voltage | 300 / 500V |
| Test voltage | insulation thickness ≤ 0.5mm: 2000V; Insulation thickness ≥ 0.5mm: 2500V |
| Minimum bending radius | fixed laying: 5D; Mobile installation: 8D (D: cable outer diameter) |
| Temperature Range | - 60 ° C - + 200 ° C |
| Radiation resistance | 8 * 10 ^ - 7cj / kg |
| Flame retardancy | pass the FT1 flame retardant test |
| Chemical resistance | good oil resistance, high temperature resistance and chemical solvent resistance |
FAQ
1. Can i get a sample to have a test?
Yes, free sample is ok , you only need to pay the shipping cost .
2. What is your Minimum order quantity ?
Normally is 2000m for mass production.
3. Can i have discount ?
It depends on your quantity , if your quantity is big , we can give some discount.
4. Does your company accept OEM , ODM production ?
Yes, we can , just need to tell us your detailed specifications.
