8 Pin Self Locking Cable To Cable Connectors IP50 Electrical Cable Connectors
8 Pin Self Locking Cable To Cable Connectors IP50 Electrical Cable Connectors
8 Pin Self Locking Cable To Cable Connector For Industrial Electronic Products
KNX expert in making high quality push pull connector and cable assemble,
have excellent team offering connector’s solution for your application.
Product description
B Series Connectors
Low voltage push-pull connectors for data, signal, electrical and power use!
KNX connectors are used in medical devices, electronic instrument,and other places which need high density,
high reliability, quick mating connectors.
These high precision connectors with complete EMC shielding, shock resistance,vibration resitance,
and corrosion resistance.
Main Features

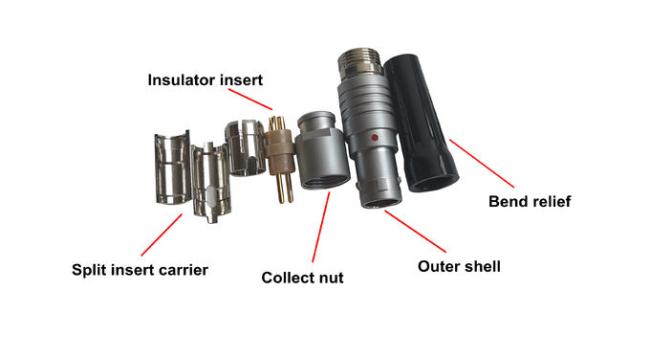

| 1. Push pull locking metal connector, cable to cable connector, free socket, inline connector |
| 2. Safe push-pull (plug-in) self-locking system. |
| 3. Welding and printed circuit board pin cores (straight and bent). |
| 4. It is convenient for high-density installation and saves space. |
| 5. Various multi-core types can be produced, and can be specially customized according to customer requirements |
| 6. Various key positions’ different positioning selection can prevent mixed insertion between similar connectors. |
| 7. 360 degree shielding provides comprehensive EMC protection. |
| 8. Simple operation,automatic locking , safety insulation and strong anti-interference. |
Technical parameter
| Series | Cable outer diameter range(mm) | Pin Number |
INGRESS PROTE CTION |
Temperature range | |||
| cable clamp | cable clamp with bend relief | ||||||
| Min | Max | Min | Max | ||||
| 00 | 1.1 | 3.4 | 1.1 | 3.4 | 2,3,4pin | ||
| 0B | 1.5 | 5.5 | 1.5 | 5.0 | 2,3,4,5,6,7,9 pin | IP50 | -55°C~250°C |
| 1B | 2.2 | 7.5 | 2.2 | 7.0 | 2, 3, 4, 5, 6, 7,8,10,14,16pin | ||
| 2B | 1.5 | 9.7 | 1.5 | 9.0 | 2, 3, 4, 5, 6, 7,8,10,12,14,16, 18,19pin | ||
| 3B | 4.1 | 11.7 | 4.1 | 11.0 | 2, 3, 4, 5, 6, 7,8,10,12,14,16, 18, 20,22,24,26,30 pin | ||
| 0K | 1.0 | 5.0 | 1.0 | 5.0 | 2,3,4,5,6,7,9 pin | IP66-IP68 | -55°C~200°C |
| 1K | 1.3 | 8.5 | 1.3 | 8.5 | 2, 3, 4, 5, 6, 7,8,10,14,16pin | ||
| 2K | 1.3 | 10.5 | 1.3 | 10.5 | 2, 3, 4, 5, 6, 7,8,10,12,14,16, 18,19pin | ||
| 3K | 2.6 | 15.0 | 2.6 | 15.0 | 2, 3, 4, 5, 6, 7,8,10,12,14,16, 18, 20,22,24,26,30 pin |
||
Electronic Details
| Conductor structure | Brass gold plated |
| Insulator material | PPS |
| Contact type | Solder |
| Max inserting | 5000 times |
| Salt spray corrosion | >144 hr |
| Shielding | 75dB(10M Hz) |
| Shielding | 40dB(1G Hz) |
| Contact Dia | Φ0.5mm |
| Solder Dia | Φ0.5mm |
| Max solder contact | AWG22# |
| Max contact R | 6.0mΩ |
| Voltage(contact-shell) | AC 1150V |
| Voltage(contact-contact) | AC 1000V |
| Rated Current | 2A(AC/DC) |
Application
1. Medical Equipment such as patient monitors and other medical device.
2. Electric vehicles.
3. Measurement devices .
4. Industrial electronic products.
5. Military products.
KNX Service and Warranty
1. Low MOQ: It can meet your business very well.
2. Good services: We treat you as our friends.

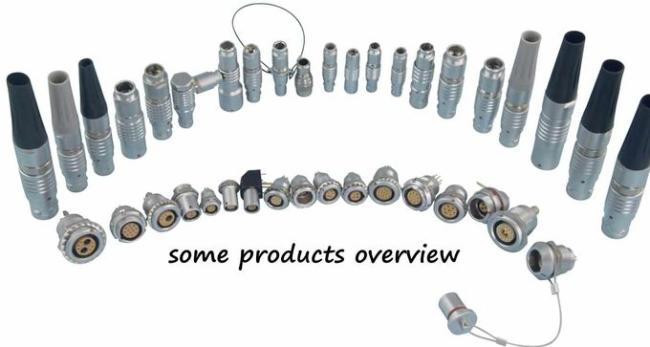

3. With a wide range of products( metal conenctor and plastic connectors and cable assemblies): can better meet your requirments .
4. Cheap price: The products are directly from our factory. So it saves a lot secondary cost.
5. OEM accepted: Please send us your design and other important information. OEM are always welcome.
E FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM service.
Q: What’s your delivery time ?
A: sample for 3-5 working days, mass production for 5-20 working days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: Can we visit your factory?
A: Of course yes, we will prepare for everything in advance if it is necessary.Generally, It is requirement that
customers must have build agency relationship or business relationship with our company.
Q: What is your terms of delivery?
A:We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most
convenient or cost effective for you.
