PROCET PoE Extender PT-PEX02GB For Complex Backhaul Organizations Flexible Network Apps
PROCET PoE Extender PT-PEX02GB designed for complex backhaul and networking applications
Product Review:

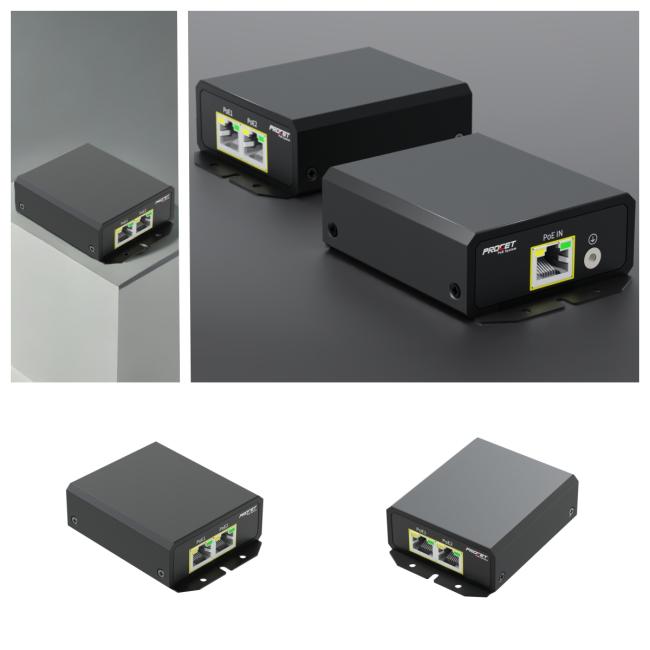

PT-PEX02GB PROCET PoE Extender is an industrial-rated PoE Extender with two PoE output ports.PT-PEX02GB
PoE Extender specially designed for complex backhaul and networking applications. Network PoE Extender enclosed
in a high-impact metal shell.
Product Specifications:
| Parameter | Description | |
| Key Features | Industrial-rated Dual-Port PoE Extender | |
| 802.3af/at/bt standard | ||
| Daisy-chain 2 units reaching 300m from end to end or reaching 500m bystar topology | ||
| Working Temperature -40°C to 65℃ | ||
| Part Number | PT-PEX02GB PROCET PoE Extender | |
| Standard | IEEE802.3 10Base-T Ethernet | |
| IEEE802.3u 100Base-Tx Fast Ethernet | ||
| IEEE802.3ab 1000Base-T Gigabit | ||
| Full compliant with IEEE802.3af/at/PoE+ | ||
| RoHS & WEEE Compliance | ||
| Ports condition | Interface:PoE*3 Grounding*1 | |
| Output | Pin Assignment and Polarity: | |
| Output:55V /0.55A * 2 Ports (Total 60W) | ||
| Data Speed:10/100 / 1000Mbps | ||
| PROCET PoE Extender Input | Input:44-57Vdc 1.5A Max | |
| PoE Standard: IEEE802.3bt/PoE+ | ||
| Input Power Pins:4/5(+),7/8(-) &3/6(+),1/2(-) | ||

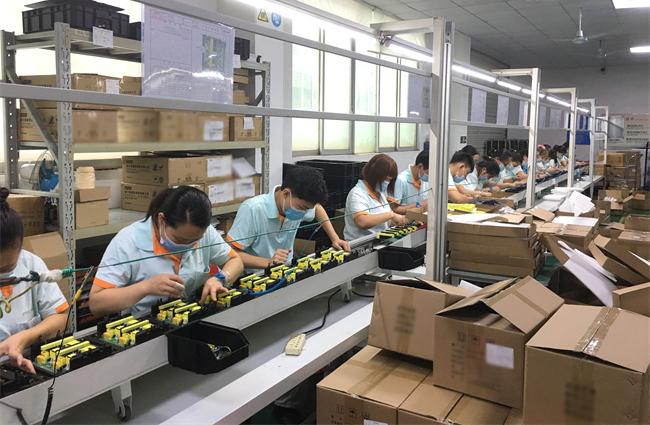

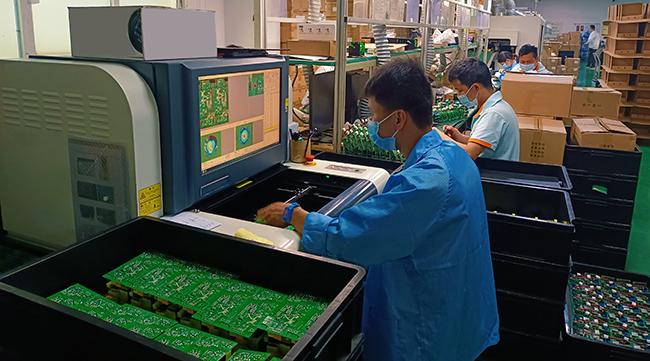

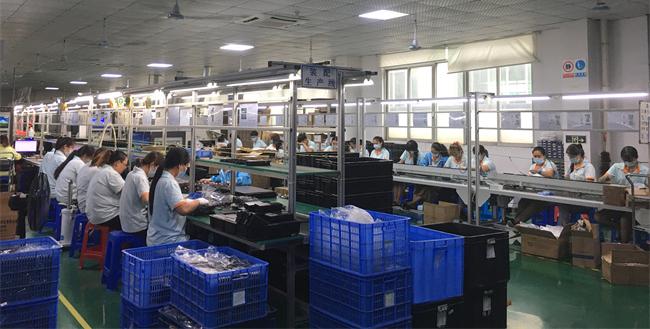

Company Introduction:
PROCET(Creative Lianjie Network Technology Co.,Ltd) maked in 2000. PROCET mainly R&D on the PoE
(Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE.-40℃ to +65℃
PoE, PoE splitter, PoE extender and PROCET PoE Extender. We registered PROCET Technology Co., Ltd
in HONGKONG in 2019.PROCET PoE injector has been widely favored by customers since its development.
Certification:
Shipping and Payment:
| MOQ | 1PC |
| PORT | SHENZHEN |
| PAYMENT TERMS | T/T,WESTERN UNION/PAYPAL |
| PRODUCING CAPACITY | 500,00 Per/Month POE Module and POE Splitter,10000 Per/Month PROCET PoE Extender |
| LEADING TIME | SMALL quantities in stock.Large quantities 20-30 days |
| PACKAGE | Carton packaging |
FAQ:
1. May we know what is the PROCET PoE Extender lead time?
For the order samples, we have in stock,we can ship it as soon as possible after you pay it.
For the Bigger orders, we can send it with 2-4 weeks after payment.
2. May we know how to purchase your PROCET PoE Extender?
Please click the BLUE BUTTON "Inquire now" (in the middle of page), input your order information and send to us.
Your sales consultant will contact with you in one day.
3. Is the PT-PEX02GB PROCET PoE Extender weatherproof?
No, the PT-PEX02GB PROCET PoE Extender is not weatherproof. It should be installed in a dry, indoor location.
4.What is the maximum distance I can extend a PoE connection with the PT-PEX02GB?
The PT-PEX02GB can extend a PoE connection by up to 100 meters (328 feet).
5.What types of PoE does the PT-PEX02GB PROCET PoE Extender support?
The PT-PEX02GB supports both 802.3af and 802.3at PoE standards, which means it can work with a wide range of PoE devices.
