Wireless APs 12V To 48V PoE Injector 55Vdc 550mA Output
Procet Industrial Din-rail AT PoE injector Input 12-48Vdc, Output 55Vdc 550mA
Key Specifications/Special Features:
1. PT-PSE105G-E-10 is a single port midspan Injector with 2 Pair PoE up to 30 watts of power at 55Vdc, at 0.55Amp with 6Kv surge protection.
2. Designed for the PoE+ powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks. It supports not only 10/100/1000Mbps of data rates, but also 2.5GbE/5GbE/10GbE NBase-T. Fully comply with IEEE802.3at and remains compatible with any IEEE802.3af compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

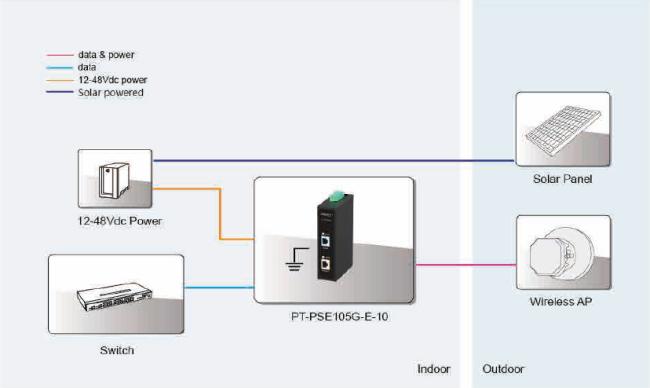

3. Enclosed in an IP40 high-impact metal case with DIN Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 12-48Vdc make it possible for solar application and operates under -40℃ to +65℃, For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.
| Parameter | Description |
| Key Features |
High speed 10G data rates |
| Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1, SFP Port*1 |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10G |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |
| LED Indicator | Power Indicator: Green PoE Load Indicator: Green |
| Warranty | 2 year |
| Safety Approvals | cUL/UL, CE, CB, FCC |
