CB Information Kiosks Industrial PoE Injector High Power 120W
Procet Industrial Midspan Passive PoE injector POE Power devices High power 120W
Key Specifications/Special Features:
1. PT-PSE109GRMN is a single port midspan Injector with 4 Pair PoE up to 120 watts of power at55 Vdc at 2.2 Amp with 6Kv surge protection.

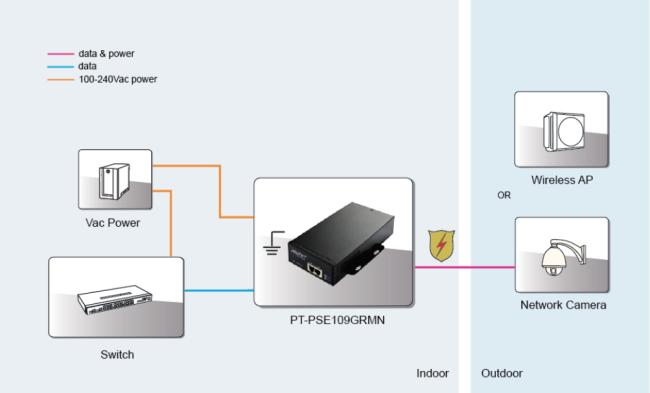

2. Designed for the PoE++ powered 120W PoE Powered Devices (PDs), such as wireless APs, base stations, high power cameras, door locks, displays, information kiosks and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at compliant terminals. It supports 10/100/1000Mbps of data rates. Passive PoE directly power PDs without detecting.
3. Enclosed in an IP20 high-impact metal case, designed for indoor use. It works with a wide input voltage of 100-240VAC, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can feed multi-port PoE with one PoE in port, such as Procet's outdoor switch PT-POS401GR-OT-D.
4. High power 120W output, Active PoE Injector,Easy to install and operate on walls or on the desktops.
| Parameter | Description |
| Key Features |
Industrial PoE can be outdoor use by covered with waterproof case SFP Fiber Function AC power cord with optional US or EU plug or other standard plug Diagnostic LEDs |
| Part Number | PT-PSE109GRMN |
| Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1, SFP Port*1 |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) and 3/6(+),1/2(-) Output Power Voltage: 55Vdc User Port Power: 95W Guaranteen |
| Input | AC Input Voltage:100to 240Vac(100 to 240Vac Rated) AC Input Current: 2.0A Frequency: 47 to 63Hz (50/60Hz Typ.) |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |
| Mechanical Characteristics | Case: Metal Color: Black Mounting:Wall-mounted IP Rated: IP20 Connectors: Shielded RJ-45*2 Size: 214 X 134 X 41mm Weight: 920g(2.36lb) |
| LED Indicator | Power Indicator: Green PoE Load Indicator: Green |
| Warranty | 2 year |
| Safety Approvals | cUL/UL, CE, CB, FCC |
