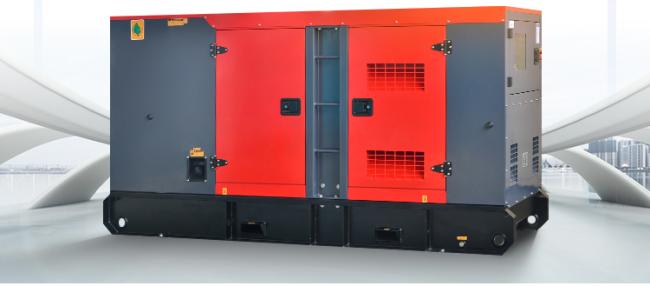

Super Silent Cummins Diesel Generator Set 6CTAA8.3G2 180Kw 225Kva
Price:
8000usd-10000usd
MOQ:
1 Set
Delivery Time:
Negotiable
Brand:
Junvoch
Product Description
6CTAA8.3-G2 Engine Generator Electric 180 Kw Super Silent Diesel Generator Set Genset 225 Kva
| Standard container type | |
| • Can be shipped on board directly during transportation | • The switch cabinet and control panel are respectively set on both sides of the shell for ea叩 maintenance & operation |
| • The mesh plate with podwer coating and inner pasted with high-density glass fiber is installed inside the shell, which is beautiful and anti-rust, and can further reduce the noise | • The air in & out louver made of the mesh plate with podwer coating and pasted with high-density glass fiber is beautiful and not easy to rust, and can further reduce the noise |
| • 3mm thick checkered steel plate floor is beautiful & antiskid., and is convenient for overhaul & maintenance ofthe unit | • Isolation net is designed for air inlet, exhaust outlet and muffler outlet to prevent objects from entering the unit |
| • Double emergency stop button set on different surfaces enables quick response to operation requirements | • The sufficient air in & out design ensure long-term and stable operation of the unit |
| • The independent daily fuel tank can be designed to put inside to meet requirements of continuous operation | • The drainage outlets are all connected to the outside for ea叩 operation |
| • The fuel filler is set on the shell to facilitate refueling | • Ceiling Lighting is equipped for easy operation |
Diesel generator Details
Diesel generator Detail
| Diesel generator Details | |
| Power | 180kw/225kva |
| Frequency | 50Hz/60Hz |
| Voltage | 380/220v(voltage can be customized) |
| Optional Type | Open/soundproof/trailer |
| Size of Open type | 2500*950*1500mm |
| Weight of Open type | 1650kg |
| With Diesel Engine | |
| Brand&model | with Cummins 6CTAA8.3-G2 |
| Standby Power | 200kw |
| Cylinders | 6 in line arrangement |
| Bore*Stroke | 114*135mm |
| Displacement | 8.3L |
| Lubriion Oil Capacity | 24L |
| Fuel Consumption at 100% Load | 205g/kw.h |
| Speed Governor | Electronic |
| With Alternator | |
| Optional Brands | Stamford/Leroy Somer/Mecc Alte/Marathon |
| Exciter type | Single bearing,brushless,Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≤5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| With Controller | |
| Optional brands | Deepsea/ComAp/Smartgen |
| Standard equipment | |
| · Diesel engine | · 50℃ water cooled radiator |
| · Alternator | · Silencer and flexible exhaust hose |
| · Starting batteries and battery connect wires | · Digital control panel |
| · Output circuit breaker | · Steel base frame |
| Optional equipment | |
| · Sound proof | · Water heater |
| · Automatic parallel synchronizing control system | · ATS |
| · 50℃ water cooled radiator |
|
