Ladder Type Perforated Cable Tray Roll Former 18 Stations

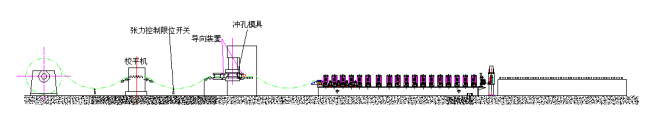

CT-600 Ladder Type Perforated Cable Tray Roll Forming Machine, Cable Tray Production Line

1). 7 Ton Hydraulic Uncoiler

1. Machine frame: welding structure with shot lastingtreatment

2. Description: Put the coil to the mandrel, the hydraulic cylinder will tighten the coil.

3. Start the machine, the motor will drive the mandrel at first, then the steel sheet will be released to the leveling

4. Electric releasing coil, hydraulic expanding, tension

5. Weight capacity: 7 Ton

6. I.D: 508mm

7. Motor Power: 5.5KW

8. Hydraulic System Power: 4KW

9. 7 Roller Leveling Machine

10. 2 Rollers pinch feeding, 7 rollers leveling
11. leveling roller diameter: about Φ 90mm
12. Leveling roller material: high grade 40Cr
13. Heat treatment of leveling roller: surface Hi-frequency quench treatment
14. Leveling motor power: 4KW

3). Servo Feeding Machine

1. Servo motor power: 3KW
2. Servo motor brand: YASKAWA (JAPAN)
3. To exact accurately feed the sheet into punching machine according to the set program

4). Hydraulic Pre-Punching Machine

1. Punching Die: Cr12 Mov, quenching process
2. Punching Die size: according to drawing
3. Punching Power: 15KW
4. Punching controlled by PLC

5). Main Cable Tray Roll Forming Machine

1. Forming material thickness: 1.5-2.5mm
2. Forming material type: GI or Carbon Steel
3. Machine Frame: high grade steel welded and tempering treatment
4. Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)
5. Shaft Diameter: Φ 65mm
6. Bearing: HRB bearing ( Top Chinese brand )
7. Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm
8. Forming Station: ≈ 18 stations
9. Forming Speed: 0-15m/min excluding punching / cutting time
10. Forming Motor: ≈15KW
11. Width adjustable motor ≈1.5KW
12. Size adjustment: electrical power adjustment
13. Drive type: Chain Drive
